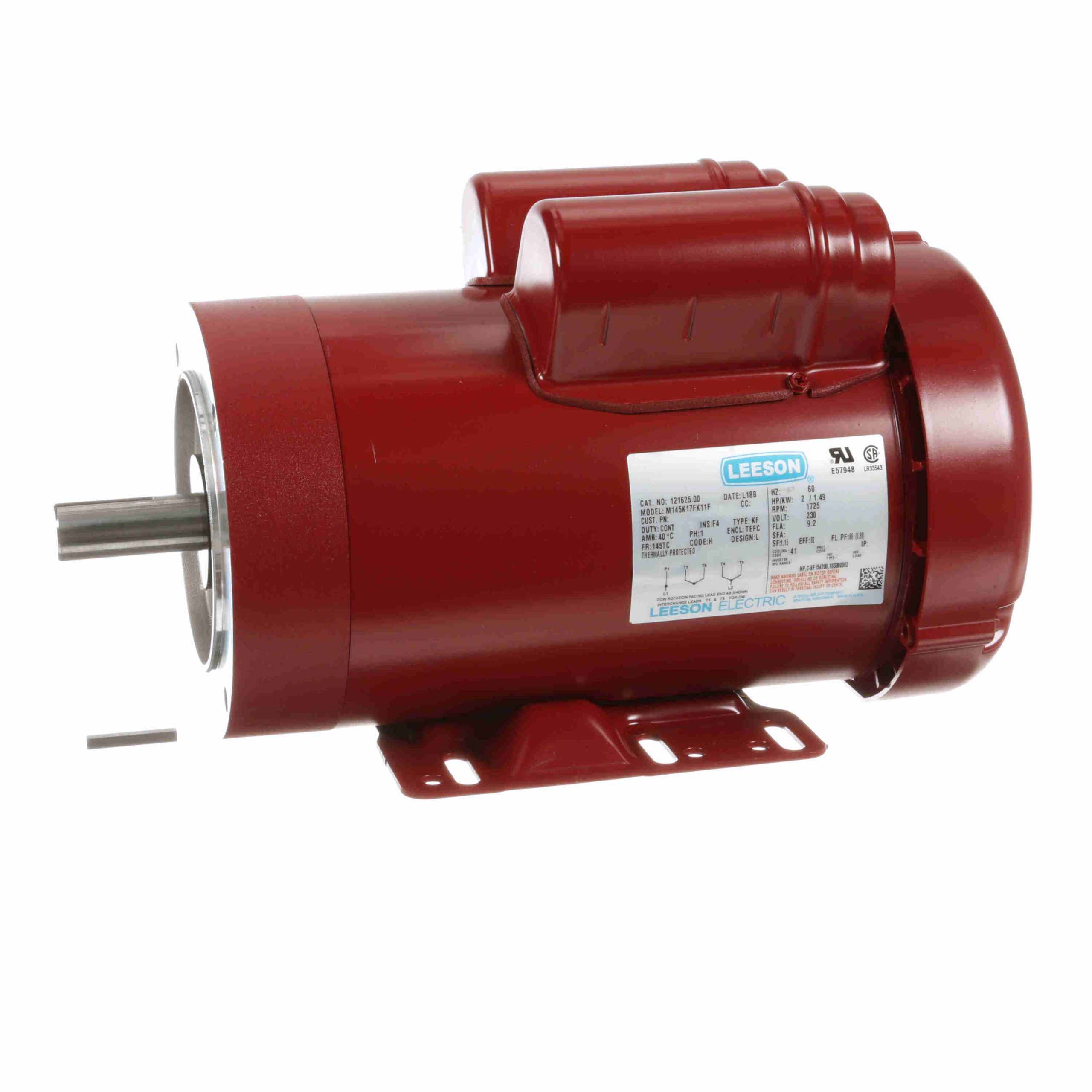

121625.00 – Leeson 2 HP Agricultural Motor, 1 phase, 1800 RPM, 230 V, 145TC Frame, TEFC – 121625.00
121625.00 Leeson Agricultural Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720328781 |
Weight: |
48 LB |
| Packaged Length: |
19.5 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
9.2 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
82 % |
Power Factor: |
86 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
H |
| Frame: |
145TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.947 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
14.18 in |
| Frame Length: |
8.25 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
64.54 |
624.0 |
16.80 |
280.0 |
0 |
13.46 |
0.0 |
2.00 |
| Break-Down |
35.77 |
346.0 |
16.30 |
272.0 |
0 |
7.15 |
0.0 |
2.00 |
| Full Load |
10.34 |
100.0 |
6.00 |
100.0 |
1,759 |
1.76 |
82.8 |
2.00 |
| Pull-Up |
47.67 |
461.0 |
13.20 |
220.0 |
0 |
8.42 |
0.0 |
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
150 % |
175 % |
200 % |
| Current (Amps) |
5.40 |
5.78 |
6.90 |
8.45 |
10.22 |
11.80 |
14.31 |
16.83 |
19.84 |
| Rated Output (KW) |
0.38 |
0.72 |
1.11 |
1.53 |
1.95 |
2.42 |
2.89 |
3.43 |
4.04 |
| Efficiency (%) |
0.0 |
53.1 |
68.3 |
73.9 |
76.6 |
76.5 |
76.0 |
73.9 |
70.3 |
| Power Factor (%) |
30.7 |
53.9 |
69.8 |
78.5 |
83.0 |
86.2 |
87.7 |
88.5 |
88.6 |
| Speed (RPM) |
1,796 |
1,786 |
1,775 |
1,764 |
1,752 |
1,736 |
1,717 |
1,697 |
1,667 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
107.1 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.50 |
3.00 |
4.50 |
6.00 |
7.50 |
9.00 |
10.50 |
12.00 |
