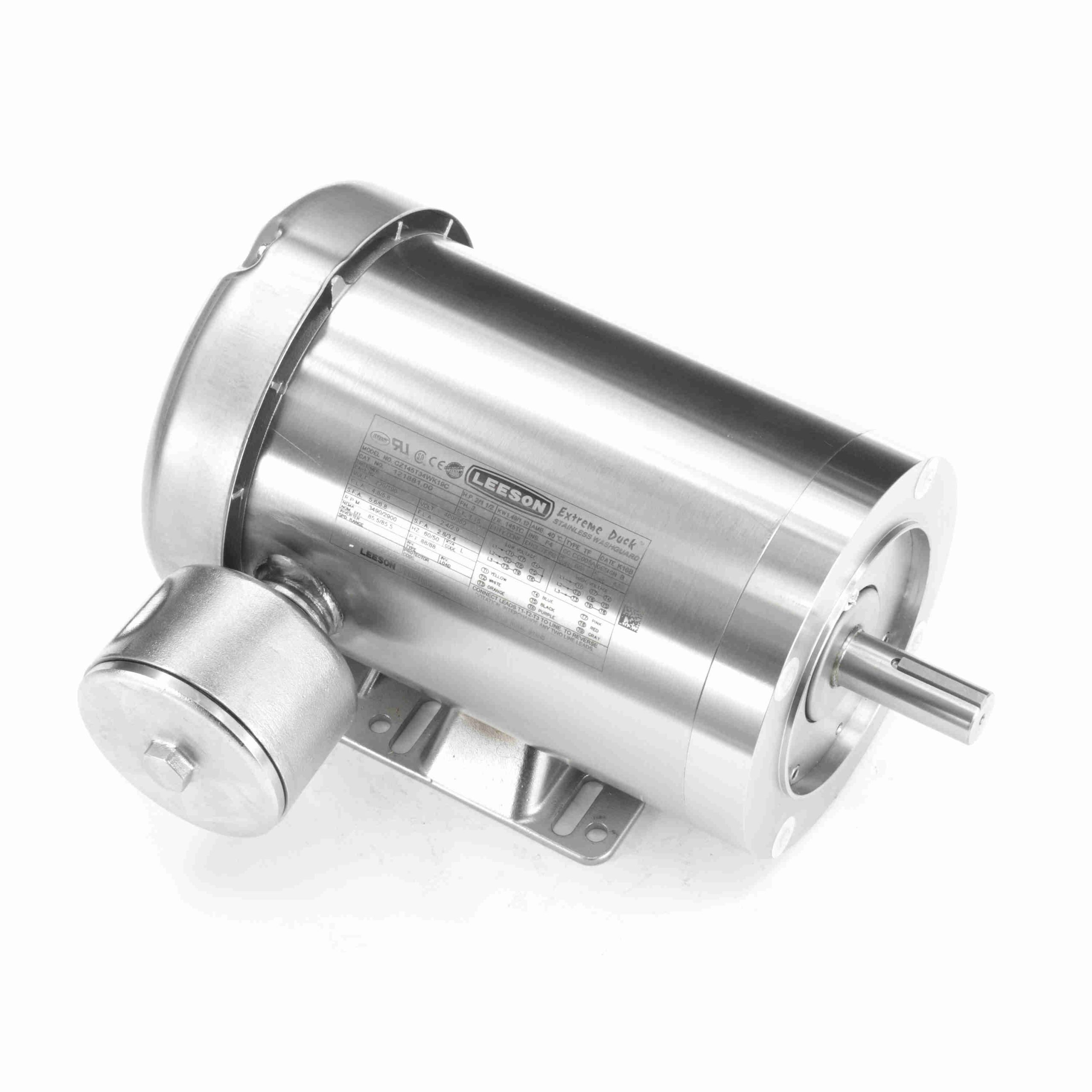

121881.00 – Leeson 2 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 145TC Frame, TEFC – 121881.00

121881.00 - Leeson 2 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 145TC Frame, TEFC - 121881.00

121881.00 – Leeson 2 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 145TC Frame, TEFC – 121881.00

121881.00 Leeson Encapsulated Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • IP69K enclosure protection
  • Q-Car(TM) rotor cartridge for quick access; Color Coded Leads; Full fact nameplate is laser etched on the motor frame

Leeson Motors
Regal Beloit

Original price was: $3,701.00.Current price is: $2,509.55.

Description

121881.00 – Leeson 2 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 145TC Frame, TEFC – 121881.00

121881.00 Leeson Encapsulated Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720989302 Weight: 62 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 4.8/2.4 A Speed: 3490 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 88
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 69

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Resistance Main: 6.4 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 12.75 in
Frame Length: 7.75 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 0.0 13.00 433.0 2,300 0.00 0.0 2.00
Pull-Up 0.00 0.0 10.50 350.0 200 0.00 0.0 2.00
Full Load 2.40 0.0 3.00 100.0 3,511 0.00 0.0 2.00
Locked-Rotor 26.00 0.0 10.80 360.0 0 0.00 0.0 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.95 1.10 1.54 1.99 2.44 2.99 3.55
Rated Output (KW) 0.13 0.39 0.89 1.30 1.72 2.13 2.56
Efficiency (%) 0.0 97.6 85.5 86.7 87.1 87.3 86.3
Power Factor (%) 16.8 44.6 72.2 82.1 88.4 89.3 90.6
Speed (RPM) 3,598 3,581 3,555 3,533 3,511 3,487 3,460
Temp. Rise @ FL 0.0 0.0 0.0 0.0 46.0 0.0 0.0
Torque (ft-lbs) 0.00 0.75 1.50 2.25 3.00 3.75 4.50
