Description

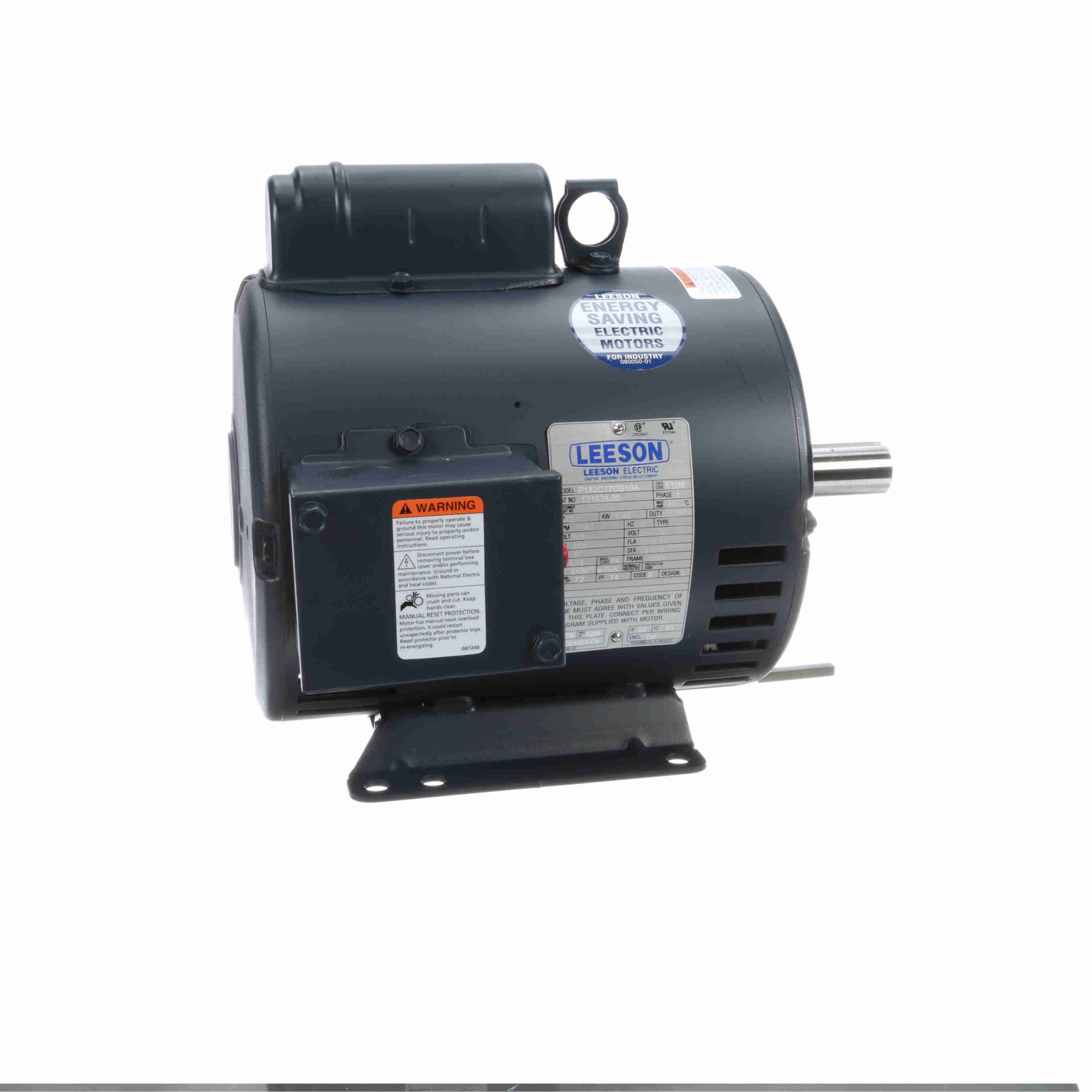

131536.00 – Leeson 2 HP Air Compressor Motor, 1 phase, 1800 RPM, 115/208-230 V, 182T Frame, ODP – 131536.00
131536.00 Leeson Air Compressor Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720017784 |
Weight: |
66 LB |
| Packaged Length: |
17.94 IN |
Packaged Width: |
13.06 IN |
| Packaged Height: |
12.88 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
24.5/13.0-12.4 A |
Speed: |
1740 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
72 % |
Power Factor: |
74 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
K |
| Frame: |
182T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Manual |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6206 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
13.19 in |
| Frame Length: |
9.00 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
12.40 |
|
6.00 |
100.0 |
0 |
|
|
2.00 |
| Break-Down |
0.00 |
|
16.10 |
268.0 |
0 |
|
|
2.00 |
| Pull-Up |
0.00 |
|
15.00 |
250.0 |
0 |
|
|
2.00 |
| Locked-Rotor |
78.00 |
|
20.60 |
343.0 |
0 |
|
|
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
8.16 |
8.24 |
9.19 |
10.68 |
12.40 |
13.50 |
14.47 |
16.92 |
| Rated Output (KW) |
0.36 |
0.76 |
1.16 |
1.65 |
2.12 |
2.26 |
2.64 |
3.22 |
| Efficiency (%) |
0.0 |
50.2 |
65.0 |
68.4 |
70.4 |
75.6 |
70.1 |
68.5 |
| Power Factor (%) |
19.2 |
40.0 |
55.1 |
67.1 |
74.4 |
69.0 |
79.4 |
82.6 |
| Speed (RPM) |
1,796 |
1,786 |
1,775 |
1,764 |
1,752 |
1,755 |
1,737 |
1,721 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
52.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.50 |
3.00 |
4.50 |
6.00 |
6.80 |
7.50 |
9.00 |
