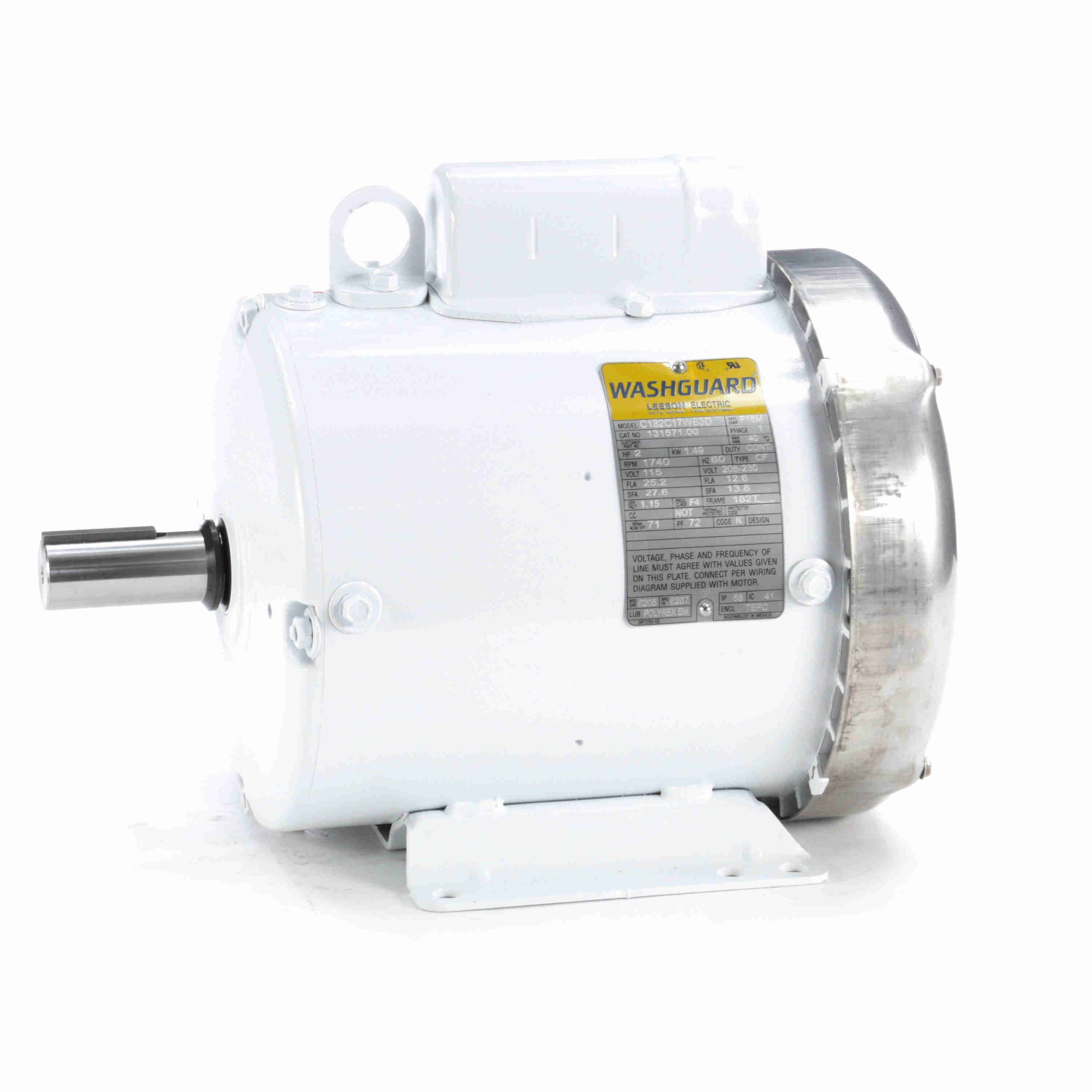

131571.00 – Leeson 2 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 182T Frame, TEFC – 131571.00
131571.00 Leeson White Epoxy General Purpose Motors
General Specifications
| UPC: |
691720018026 |
Weight: |
63 LB |
| Packaged Length: |
17.94 IN |
Packaged Width: |
13.06 IN |
| Packaged Height: |
12.88 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
25.2/12.6 A |
Speed: |
1740 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
71 % |
Power Factor: |
72 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
K |
| Frame: |
182T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6207 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.86 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
13.46 in |
| Frame Length: |
8.00 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
0.0 |
13.30 |
222.0 |
0 |
0.00 |
0.0 |
2.00 |
| Break-Down |
0.00 |
0.0 |
15.00 |
250.0 |
0 |
0.00 |
0.0 |
2.00 |
| Full Load |
12.60 |
100.0 |
6.00 |
100.0 |
0 |
0.00 |
0.0 |
2.00 |
| Locked-Rotor |
68.00 |
540.0 |
13.60 |
227.0 |
0 |
0.00 |
0.0 |
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
7.90 |
8.15 |
9.36 |
10.83 |
12.63 |
14.82 |
17.25 |
| Rated Output (KW) |
0.44 |
0.78 |
1.24 |
1.69 |
2.10 |
2.65 |
3.25 |
| Efficiency (%) |
0.0 |
46.0 |
61.2 |
68.5 |
71.0 |
0.0 |
0.0 |
| Power Factor (%) |
0.0 |
38.5 |
52.5 |
63.4 |
72.0 |
0.0 |
0.0 |
| Speed (RPM) |
1,796 |
1,786 |
1,777 |
1,767 |
1,756 |
1,742 |
1,727 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.50 |
3.00 |
4.50 |
6.00 |
7.50 |
9.00 |
