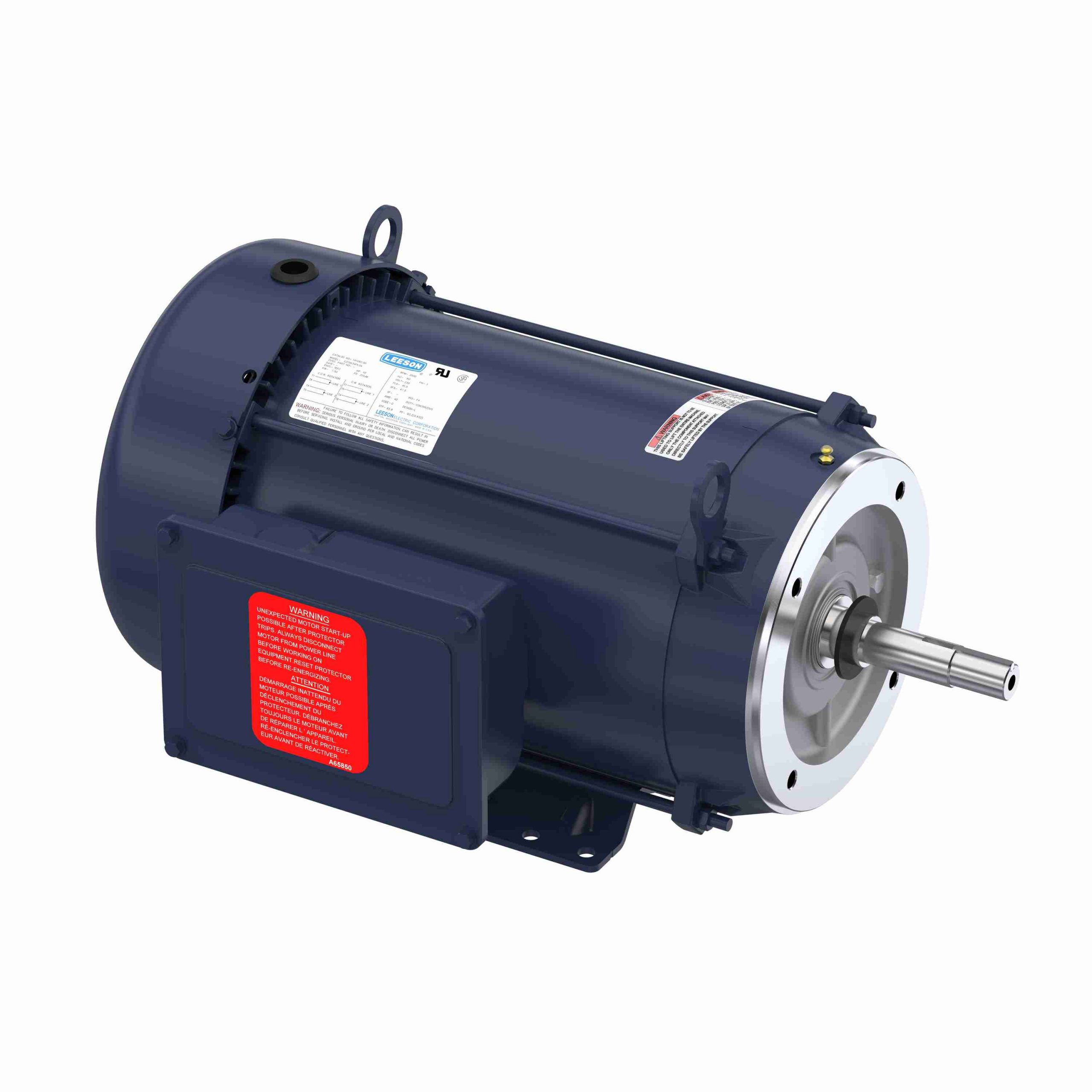

| UPC: | 691720047965 | Weight: | 142 LB |
| Packaged Length: | 26.5 IN | Packaged Width: | 18 IN |
| Packaged Height: | 14.38 IN |
| Output HP: | 10 Hp | Output KW: | 7.5 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 41.5 A | Speed: | 3500 rpm |
| Service Factor: | 1.15 | Phase: | 1 |
| Efficiency: | 83.8 % | Power Factor: | 93.2 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | G |
| Frame: | 215JM | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6309 | Opp Drive End Bearing Size: | 6206 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | JM | Overall Length: | 22.09 in |
| Frame Length: | 11.15 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 4.5 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 249.00 | 600.0 | 26.00 | 173.0 | 0 | 43.00 | 63.5 | 10.00 |
| Break-Down | 151.00 | 364.0 | 38.50 | 257.0 | 3,043 | 29.00 | 0.0 | 10.00 |
| Pull-Up | 25.00 | 60.0 | 20.00 | 133.0 | 129 | 42.60 | 0.0 | 10.00 |
| Full Load | 41.50 | 100.0 | 15.00 | 100.0 | 3,500 | 8.90 | 0.0 | 10.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 9.00 | 13.90 | 22.10 | 31.30 | 41.50 | 47.70 | 52.40 |
| Rated Output (KW) | 1.00 | 2.60 | 4.59 | 6.69 | 8.90 | 10.30 | 11.30 |
| Efficiency (%) | 0.0 | 72.2 | 81.3 | 83.9 | 83.8 | 83.5 | 82.8 |
| Power Factor (%) | 48.3 | 81.3 | 90.3 | 92.9 | 93.2 | 93.9 | 93.8 |
| Speed (RPM) | 3,600 | 3,574 | 3,552 | 3,528 | 3,500 | 3,480 | 3,465 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 85.0 | 115.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 3.70 | 7.40 | 11.20 | 15.00 | 17.40 | 19.00 |
