141312.00 – Leeson 2 HP General Purpose Motor, 3 phase, 900 RPM, 208-230/460 V, 213T Frame, TEFC – 141312.00

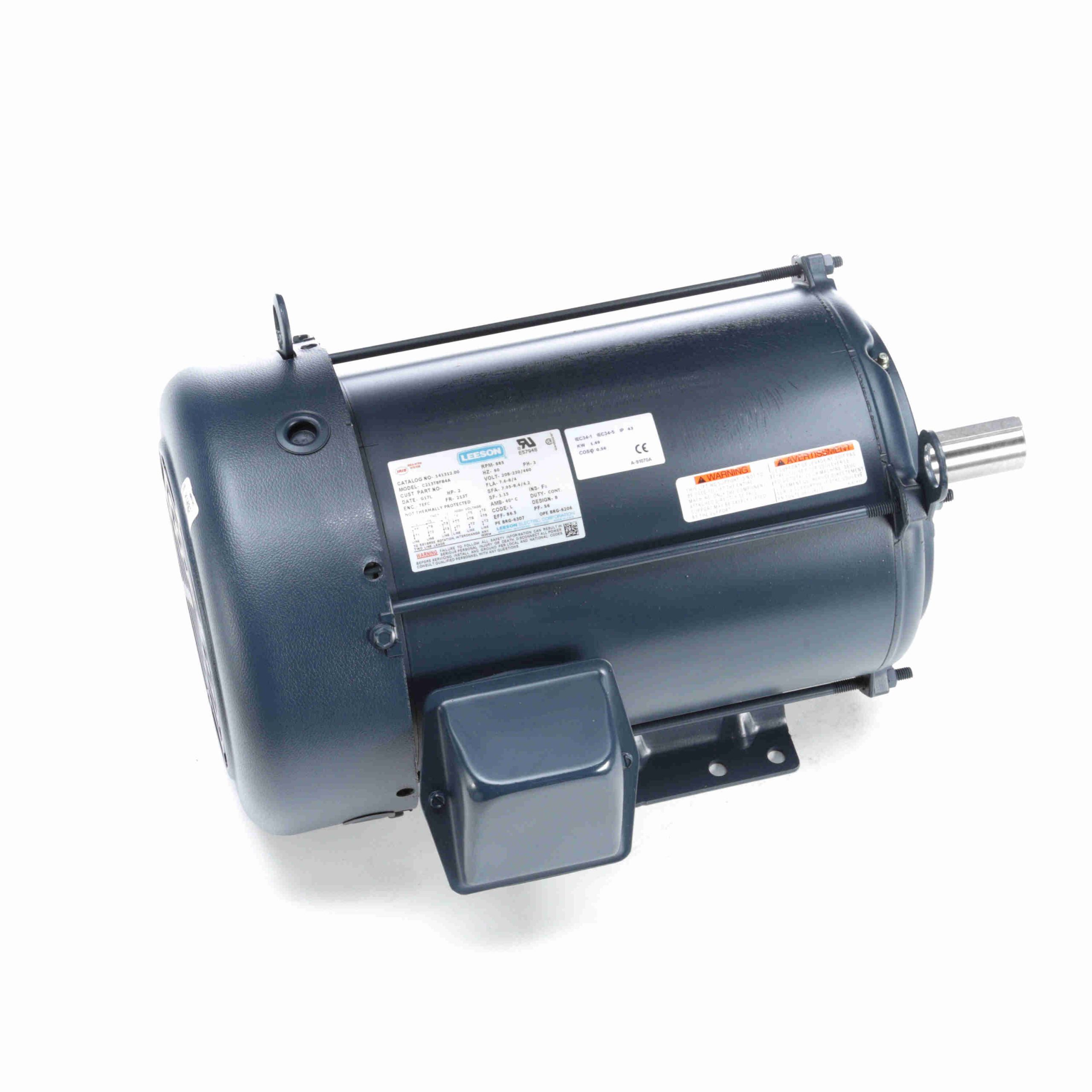

141312.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720043646 |
Weight: |
125 LB |
| Packaged Length: |
22.19 IN |
Packaged Width: |
16.5 IN |
| Packaged Height: |
14 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
7.6-8.0/4.0 A |
Speed: |
885 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
86.5 % |
Power Factor: |
56 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
213T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
8 |
Rotation: |
Reversible |
| Resistance Main: |
3.44 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
20.23 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
4.00 |
100.0 |
12.00 |
100.0 |
885 |
|
|
2.00 |
| No Load |
2.70 |
68.0 |
0.00 |
0.0 |
900 |
|
|
2.00 |
| Locked-Rotor |
24.00 |
600.0 |
27.50 |
225.0 |
0 |
|
40.0 |
2.00 |
| 2/3 |
19.00 |
475.0 |
28.50 |
238.0 |
600 |
|
|
2.00 |
| Break-Down |
16.00 |
400.0 |
46.00 |
383.0 |
770 |
|
64.0 |
2.00 |
| 1/3 |
23.00 |
575.0 |
23.00 |
192.0 |
300 |
|
|
2.00 |
| Pull-Up |
21.50 |
538.0 |
24.50 |
204.0 |
450 |
|
|
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
2.70 |
3.10 |
3.30 |
3.60 |
4.00 |
4.20 |
4.50 |
| Rated Output (KW) |
0.20 |
0.50 |
0.90 |
1.30 |
1.70 |
2.00 |
2.10 |
| Efficiency (%) |
0.0 |
72.0 |
82.5 |
86.0 |
86.5 |
86.5 |
87.0 |
| Power Factor (%) |
7.0 |
21.0 |
35.0 |
46.0 |
56.0 |
60.0 |
62.0 |
| Speed (RPM) |
900 |
895 |
891 |
888 |
885 |
880 |
878 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
60.0 |
80.0 |
| Torque (ft-lbs) |
0.00 |
3.00 |
6.00 |
9.00 |
12.00 |
13.80 |
15.00 |
Leeson Motors
Regal Beloit
