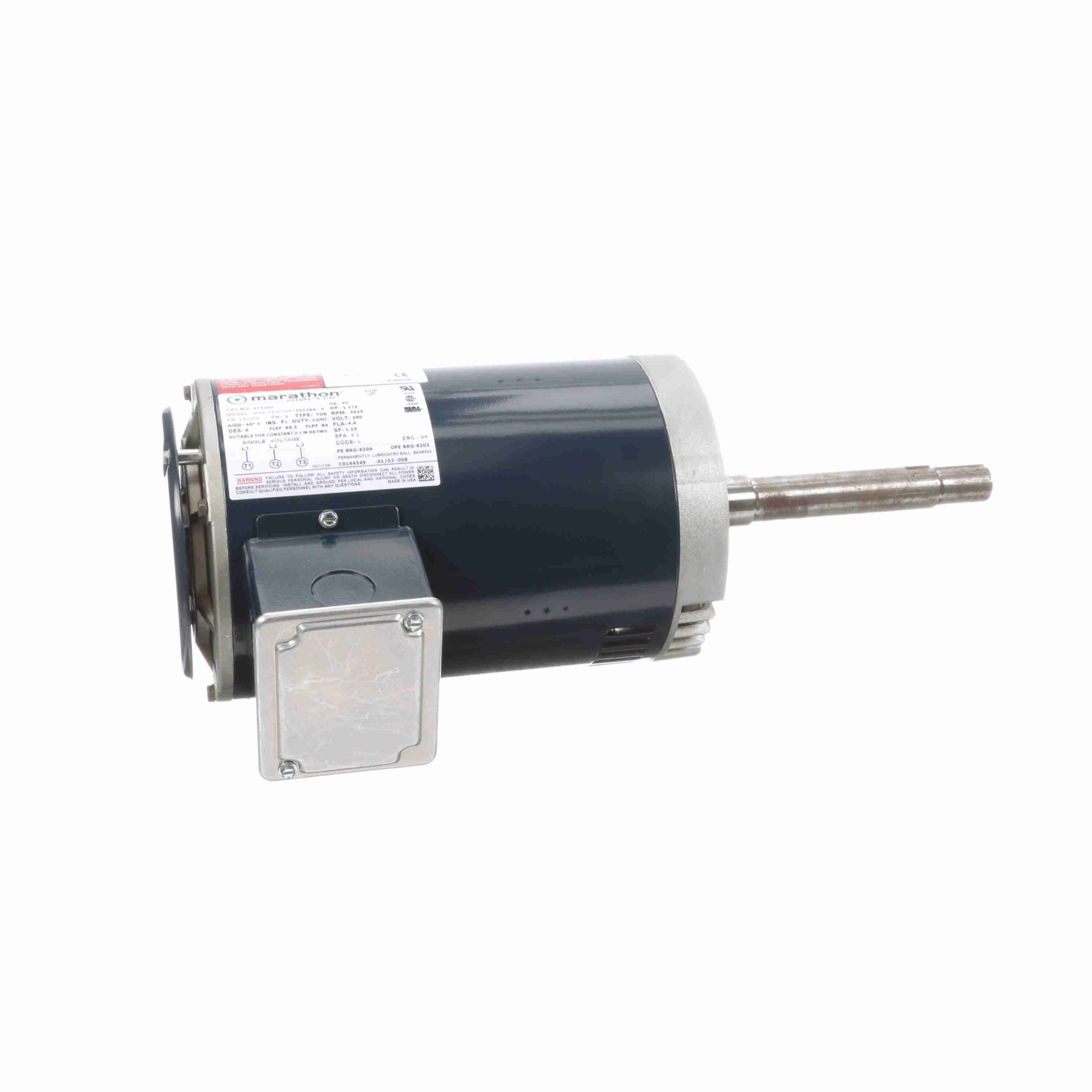

143TTDR16011 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 143JPV Frame, ODP – GT4303

143TTDR16011 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 143JPV Frame, ODP – GT4303

143TTDR16011 Marathon JP Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Class F Insulation
  • F1 mounting only, cannot reassemble to F2
  • Drip cover included

Marathon Motors
Regal Beloit

Description

143TTDR16011 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 143JPV Frame, ODP – GT4303

143TTDR16011 Marathon JP Motors

General Specifications

UPC: 722856003959 Weight: 44 LB
Packaged Length: 19.88 IN Packaged Width: 10.25 IN
Packaged Height: 8.12 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 200 V
Current: 4.4 A Speed: 3515 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 84
Duty: Continous Insulation Class: F
Design Code: B KVA Code: L
Frame: 143JPV Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 9.08 Ohms Mounting: Round
Motor Orientation: Horizontal Or Shaft Down Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: JP Overall Length: 17.98 in
Frame Length: 8.56 in Shaft Diameter: 0.875 in
Shaft Extension: 7.31 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 18.60 979.0 6.80 302.0 0 9.25 62.5 1.50
Break-Down 11.70 616.0 10.00 444.0 2,700 7.85 84.0 1.50
2/3 14.90 784.0 14.50 644.0 2,150 0.00 0.0 1.50
1/3 17.70 932.0 11.00 489.0 1,100 0.00 0.0 1.50
Full Load 1.90 100.0 2.25 100.0 3,515 1.27 84.0 1.50
No Load 0.82 43.0 0.00 0.0 3,600 0.09 14.3 1.50
Pull-Up 18.70 984.0 5.65 251.0 215 9.22 61.9 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 130 % 150 %
Current (Amps) 1.89 2.07 2.76 3.45 4.37 5.06 5.29 5.52 6.21
Rated Output (KW) 0.09 0.35 0.65 0.95 1.27 1.48 1.60 1.66 1.94
Efficiency (%) 0.0 79.6 86.6 88.3 86.5 86.6 86.5 86.5 86.5
Power Factor (%) 14.3 47.2 67.6 78.7 84.0 86.5 87.5 87.5 88.8
Speed (RPM) 3,600 3,580 3,560 3,540 3,515 3,505 3,495 3,490 3,470
Temp. Rise @ FL 0.0 0.0 0.0 0.0 20.0 25.0 30.0 35.0 0.0
Torque (ft-lbs) 0.00 0.55 1.10 1.68 2.25 2.60 2.80 2.92 3.40
