143TTFR16005 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 143JM Frame, TEFC – GT5003

143TTFR16005 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 143JM Frame, TEFC – GT5003

143TTFR16005 Marathon JM Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Class F Insulation
  • F1 mounting only, cannot reassemble to F2

Marathon Motors
Regal Beloit

Description

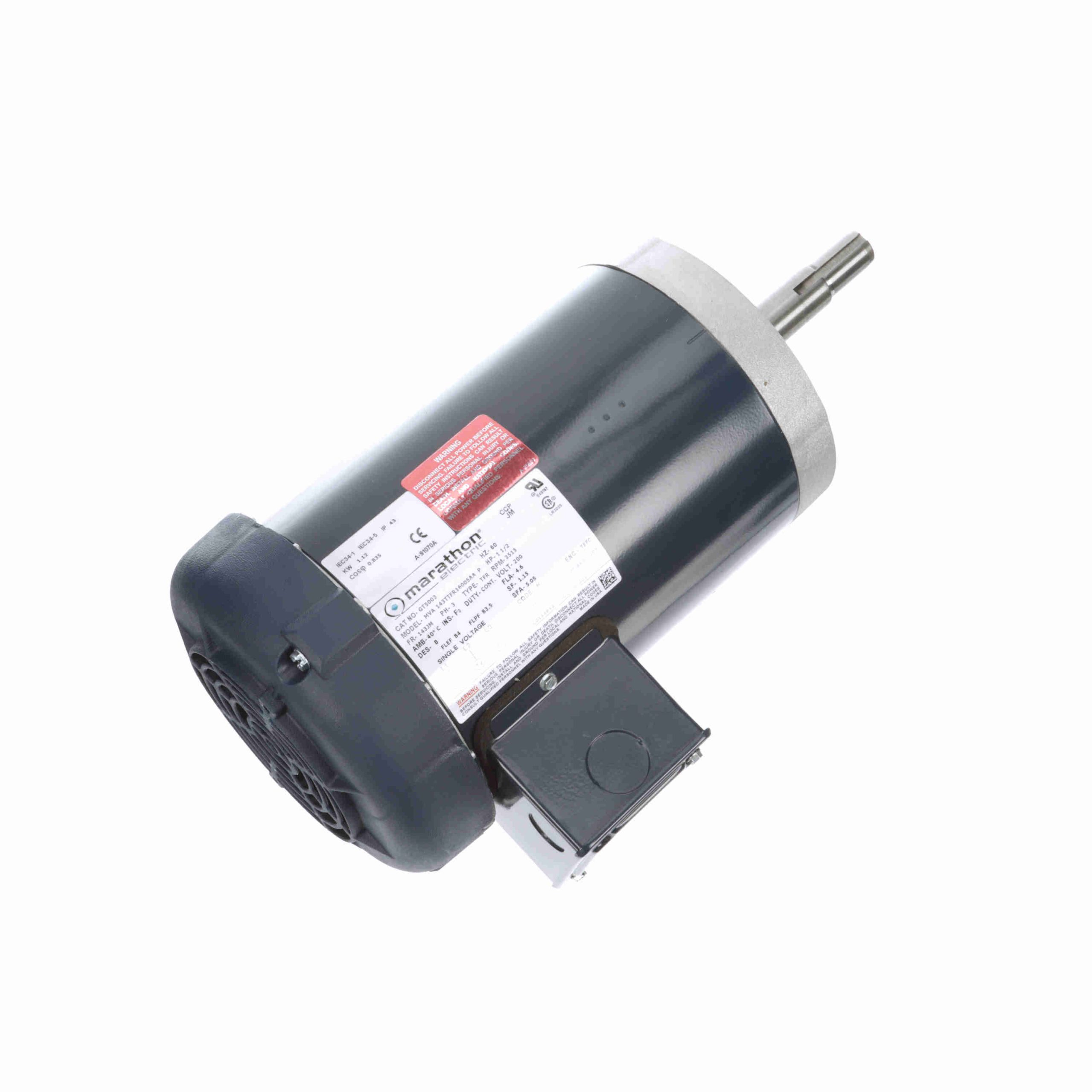

143TTFR16005 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 143JM Frame, TEFC – GT5003

143TTFR16005 Marathon JM Motors

General Specifications

UPC: 722856004697 Weight: 50 LB
Packaged Length: 19.69 IN Packaged Width: 12.31 IN
Packaged Height: 12.62 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 200 V
Current: 4.6 A Speed: 3515 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 84 % Power Factor: 83.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: M
Frame: 143JM Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 9.27 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: JM Overall Length: 15.49 in
Frame Length: 8.06 in Shaft Diameter: 0.875 in
Shaft Extension: 4.25 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 2.00 100.0 2.20 100.0 3,515 83.5 1.50
Pull-Up 18.60 930.0 6.10 277.0 650 1.50
No Load 0.90 45.0 0.00 0.0 3,600 17.0 1.50
Locked-Rotor 19.40 970.0 7.30 332.0 0 58.0 1.50
Break-Down 12.10 605.0 9.60 435.0 2,815 88.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 130 % 150 %
Current (Amps) 2.07 2.30 2.99 3.68 4.60 5.06 5.52 5.75 6.67
Rated Output (KW) 0.13 0.38 0.68 0.99 1.30 1.53 1.65 1.72 2.00
Efficiency (%) 0.0 73.4 82.3 84.8 84.0 84.0 84.0 83.8 83.0
Power Factor (%) 17.0 47.5 67.2 77.8 83.5 85.1 86.8 87.0 88.0
Speed (RPM) 3,600 3,575 3,555 3,535 3,515 3,500 3,485 3,480 3,470
Temp. Rise @ FL 0.0 0.0 0.0 0.0 38.0 50.0 60.0 0.0 0.0
Torque (ft-lbs) 0.00 0.60 1.10 1.70 2.20 2.60 2.80 2.92 3.40
