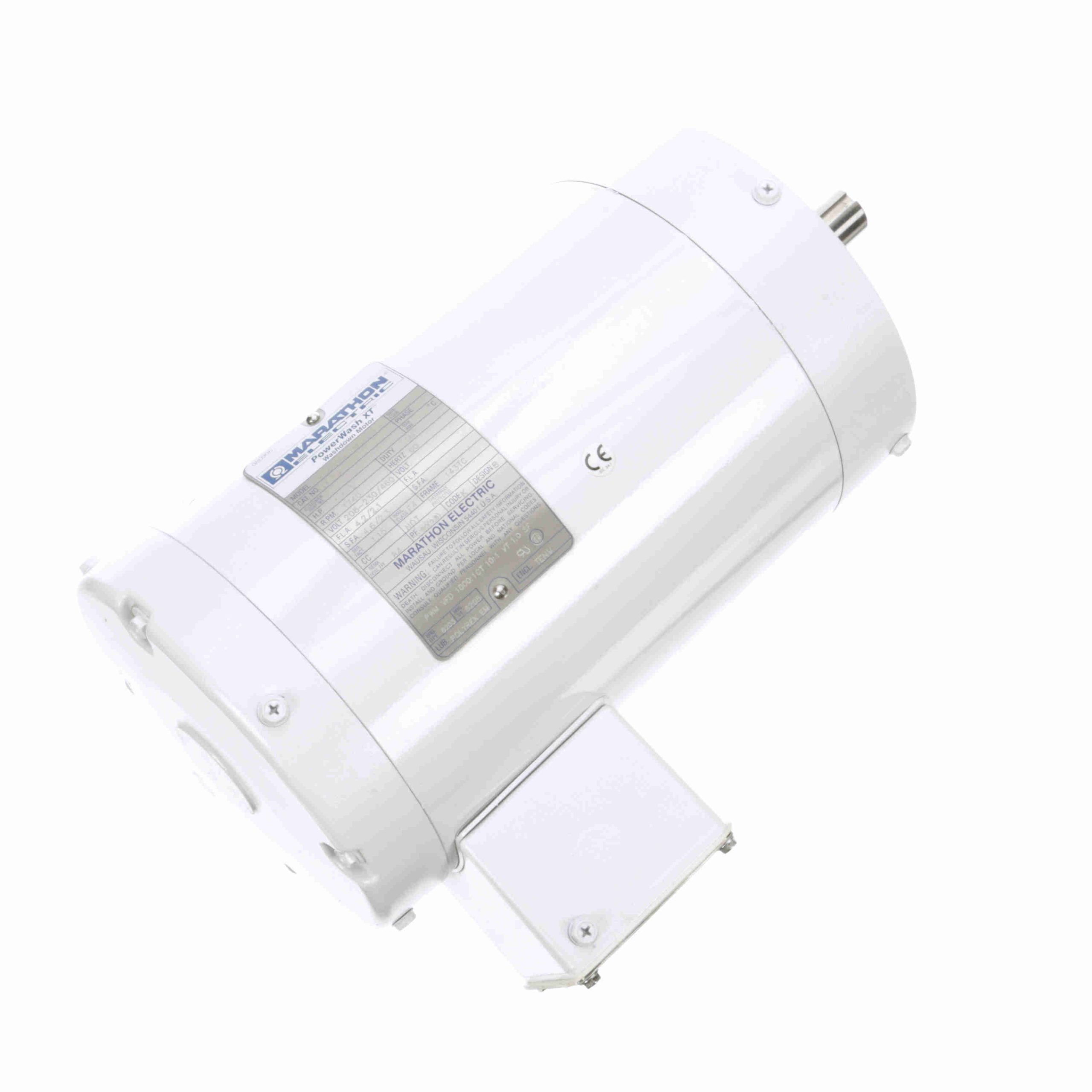

143TTVR5327 – Marathon 1.50 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 143TC Frame, TENV – N650

143TTVR5327 – Marathon 1.50 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 143TC Frame, TENV – N650

143TTVR5327 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • 10:1 Variable torque, Constant torque speed range as listed below
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield (Drive end only on TENV motors)
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC only) and hardware
  • Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • USDA-approved, white epoxy RUST-OLEUM® paint,UL Recognized, CSA Certified and CE Mark

Marathon Motors
Regal Beloit

Original price was: $916.00.Current price is: $355.88.

Description

143TTVR5327 – Marathon 1.50 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 143TC Frame, TENV – N650

143TTVR5327 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856029133 Weight: 47 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.2/2.1 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 84 % Power Factor: 80
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 143TC Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 2.34 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.12 in
Frame Length: 8.00 in Shaft Diameter: 0.875 in
Shaft Extension: 1.99 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 17.00 378.0 0 1.50
Pull-Up 0.00 14.20 316.0 0 1.50
Locked-Rotor 33.60 15.10 336.0 0 1.50
Full Load 4.20 4.50 100.0 0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.03 1.14 1.42 1.74 2.09 2.51 2.98
Rated Output (KW) 0.07 0.36 0.68 1.00 1.33 1.66 2.01
Efficiency (%) 0.0 79.1 84.0 85.0 84.0 83.8 81.9
Power Factor (%) 8.5 40.0 60.0 72.1 80.0 82.8 84.8
Speed (RPM) 1,799 1,789 1,777 1,764 1,750 1,734 1,717
Temp. Rise @ FL 0.0 0.0 0.0 0.0 95.0 0.0 0.0
Torque (ft-lbs) 0.00 1.13 2.25 3.38 4.50 5.63 6.75
