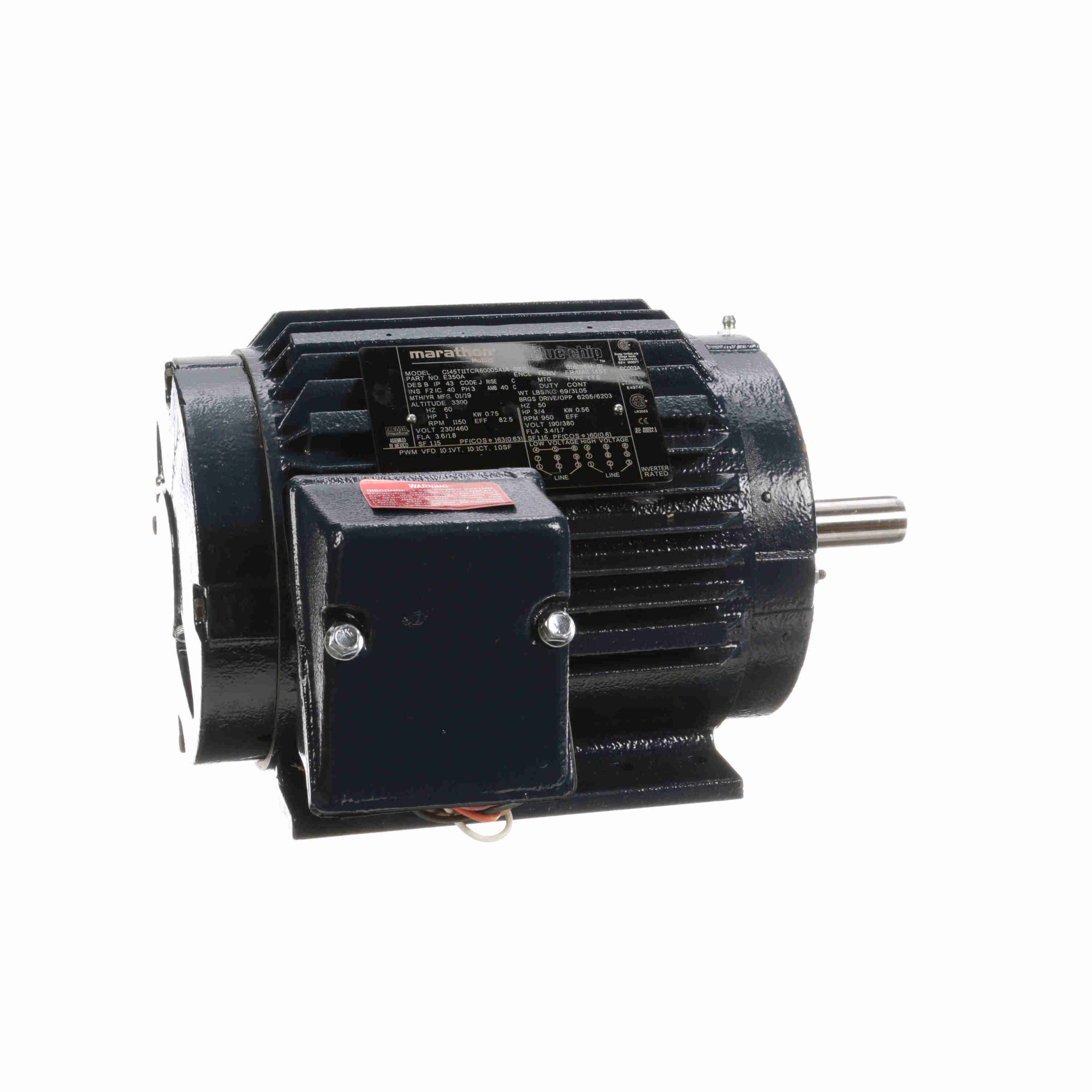

145T11TCR60005A1 – Marathon 1 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 145T Frame, TENV – E350A
145T11TCR60005A1 Marathon Three Phase TENV Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856078568 |
Weight: |
69 LB |
| Packaged Length: |
15.5 IN |
Packaged Width: |
14 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
3.6/1.8 A |
Speed: |
1150 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
82.5 % |
Power Factor: |
63 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
J |
| Frame: |
145T |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
7.00 |
402.0 |
16.25 |
295.0 |
814 |
3.85 |
48.8 |
1.00 |
| Pull-Up |
9.95 |
572.0 |
12.11 |
220.0 |
121 |
4.18 |
52.7 |
1.00 |
| Full Load |
1.80 |
100.0 |
4.50 |
100.0 |
1,150 |
0.89 |
63.0 |
1.00 |
| Locked-Rotor |
10.00 |
576.0 |
12.45 |
226.0 |
0 |
4.15 |
52.0 |
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
1.20 |
1.23 |
1.36 |
1.54 |
1.80 |
1.90 |
2.00 |
| Rated Output (KW) |
0.06 |
0.25 |
0.46 |
0.66 |
0.89 |
1.00 |
1.08 |
| Efficiency (%) |
0.0 |
74.5 |
81.5 |
82.5 |
82.5 |
82.5 |
81.5 |
| Power Factor (%) |
5.7 |
25.1 |
41.1 |
53.2 |
63.0 |
65.8 |
67.5 |
| Speed (RPM) |
1,200 |
1,190 |
1,175 |
1,165 |
1,150 |
1,145 |
1,140 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
47.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.09 |
2.22 |
3.36 |
4.50 |
5.25 |
5.75 |
