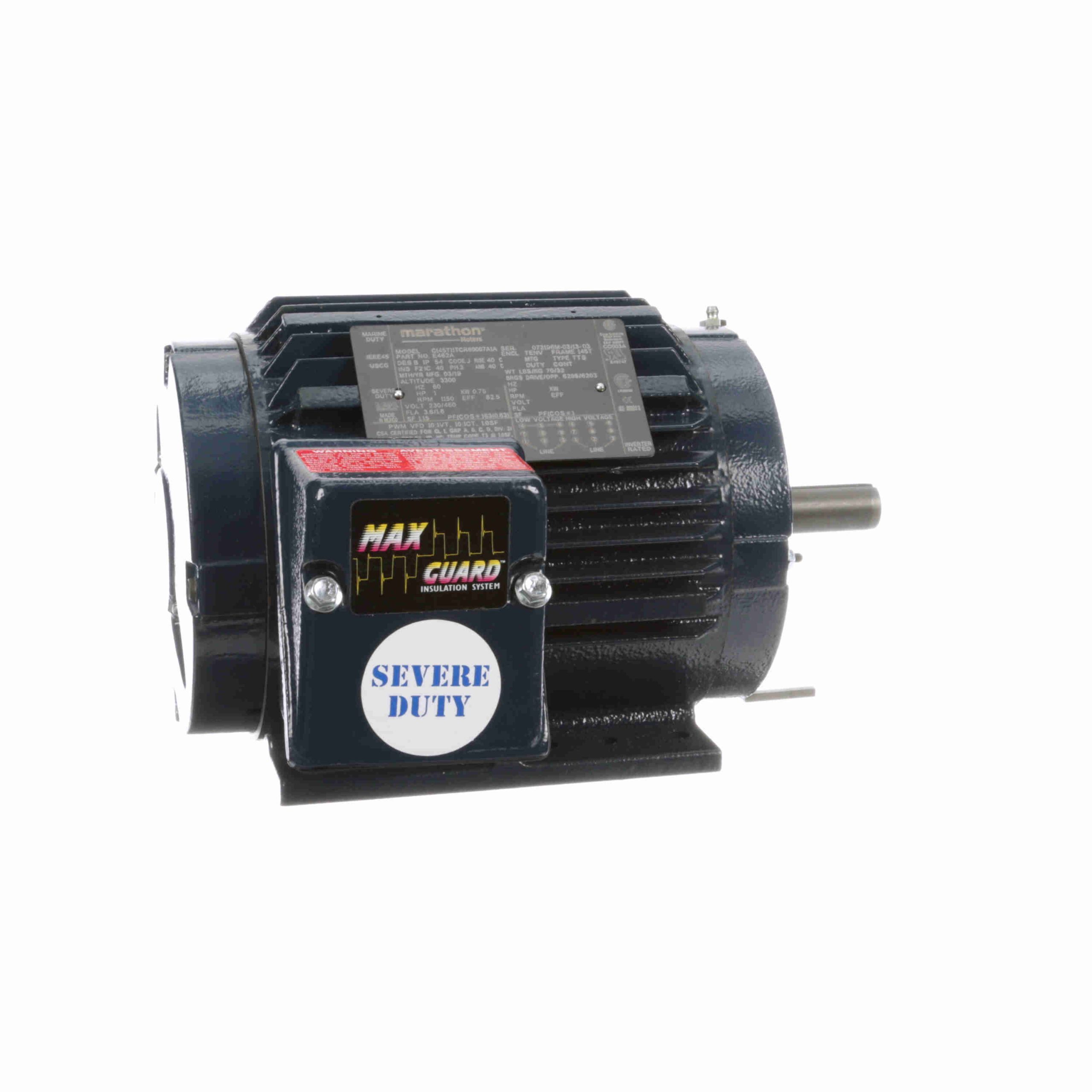

145T11TCR60007A1 – Marathon 1 HP Severe Duty Motor, 3 phase, 1200 RPM, 230/460 V, 145T Frame, TENV – E462A

145T11TCR60007A1 – Marathon 1 HP Severe Duty Motor, 3 phase, 1200 RPM, 230/460 V, 145T Frame, TENV – E462A

145T11TCR60007A1 Marathon Other Severe Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Meets or exceeds NEMA Premium® efficiencies
  • Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
  • MAX GUARD® Class F insulation system
  • Capable of Constant Torque speed range (as noted in catalog)
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Meets IEEE45 USCG Marine Duty, IP54 Construction, Meets Ford EM1 Automotive Duty Specification

Marathon Motors
Regal Beloit

Original price was: $1,392.00.Current price is: $992.22.

Description

145T11TCR60007A1 – Marathon 1 HP Severe Duty Motor, 3 phase, 1200 RPM, 230/460 V, 145T Frame, TENV – E462A

145T11TCR60007A1 Marathon Other Severe Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856078506 Weight: 70 LB
Packaged Length: 15.5 IN Packaged Width: 14 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 3.6/1.8 A Speed: 1150 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 82.5 % Power Factor: 63
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 145T Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 54
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Shaft Diameter: 0.875 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 9.95 572.0 12.11 220.0 121 4.18 52.7 1.00
Break-Down 7.00 402.0 16.25 295.0 814 3.85 48.8 1.00
Locked-Rotor 10.00 576.0 12.45 226.0 0 4.15 52.0 1.00
Full Load 1.80 100.0 4.50 100.0 1,150 0.89 63.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.20 1.23 1.36 1.54 1.80 1.90 2.00
Rated Output (KW) 0.06 0.25 0.46 0.66 0.89 1.00 1.08
Efficiency (%) 0.0 74.5 81.5 82.5 82.5 82.5 81.5
Power Factor (%) 5.7 25.1 41.1 53.2 63.0 65.8 67.5
Speed (RPM) 1,200 1,190 1,175 1,165 1,150 1,145 1,140
Temp. Rise @ FL 0.0 0.0 0.0 0.0 40.0 47.0 0.0
Torque (ft-lbs) 0.00 1.09 2.22 3.36 4.50 5.25 5.75
