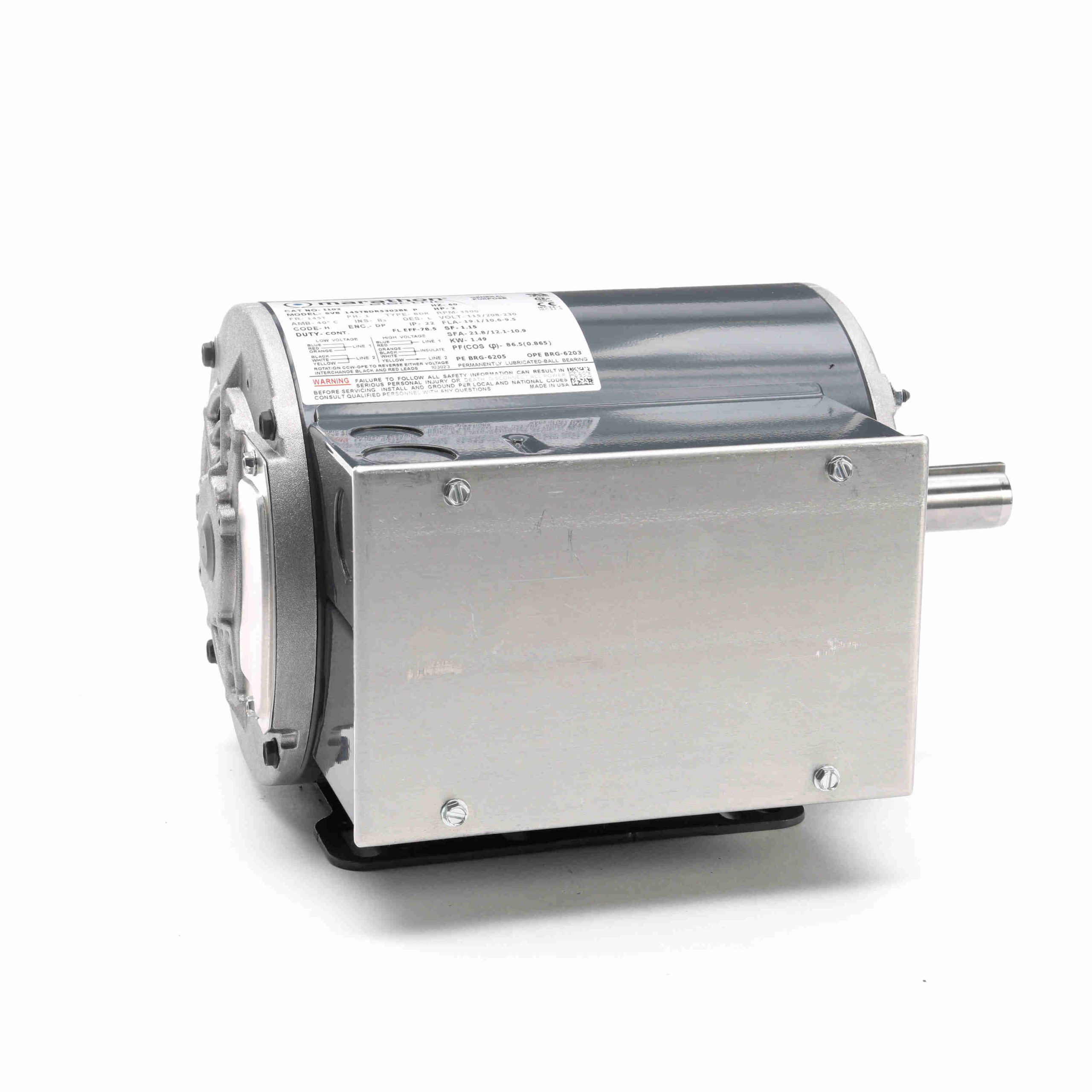

145TBDR5302 – Marathon 2 HP General Purpose Motor, 1 phase, 3600 RPM, 115/208-230 V, 145T Frame, ODP – I102
145TBDR5302 Marathon Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856006820 |
Weight: |
35 LB |
| Packaged Length: |
16.38 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
8.12 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
19.1/10.6-9.5 A |
Speed: |
3500 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
78.5 % |
Power Factor: |
86.5 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
L |
KVA Code: |
H |
| Frame: |
145T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
11.49 in |
| Frame Length: |
7.56 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.34 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
38.10 |
|
4.98 |
|
2,671 |
6.80 |
|
2.00 |
| Break-Down |
28.70 |
|
6.18 |
|
3,143 |
5.70 |
|
2.00 |
| Locked-Rotor |
58.50 |
|
6.53 |
|
0 |
10.60 |
|
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
175 % |
| Current (Amps) |
3.48 |
4.27 |
5.68 |
7.45 |
9.53 |
10.90 |
12.00 |
15.20 |
21.30 |
| Rated Output (KW) |
0.18 |
0.58 |
0.99 |
1.43 |
1.92 |
2.24 |
2.48 |
3.15 |
4.34 |
| Efficiency (%) |
0.0 |
64.6 |
75.3 |
78.2 |
78.5 |
76.6 |
75.4 |
0.0 |
0.0 |
| Power Factor (%) |
0.0 |
58.9 |
75.7 |
83.7 |
87.7 |
87.9 |
89.5 |
0.0 |
0.0 |
| Speed (RPM) |
3,600 |
3,576 |
3,554 |
3,529 |
3,500 |
3,479 |
3,461 |
3,409 |
3,276 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
65.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.74 |
1.48 |
2.24 |
3.01 |
3.46 |
3.80 |
4.63 |
5.61 |
