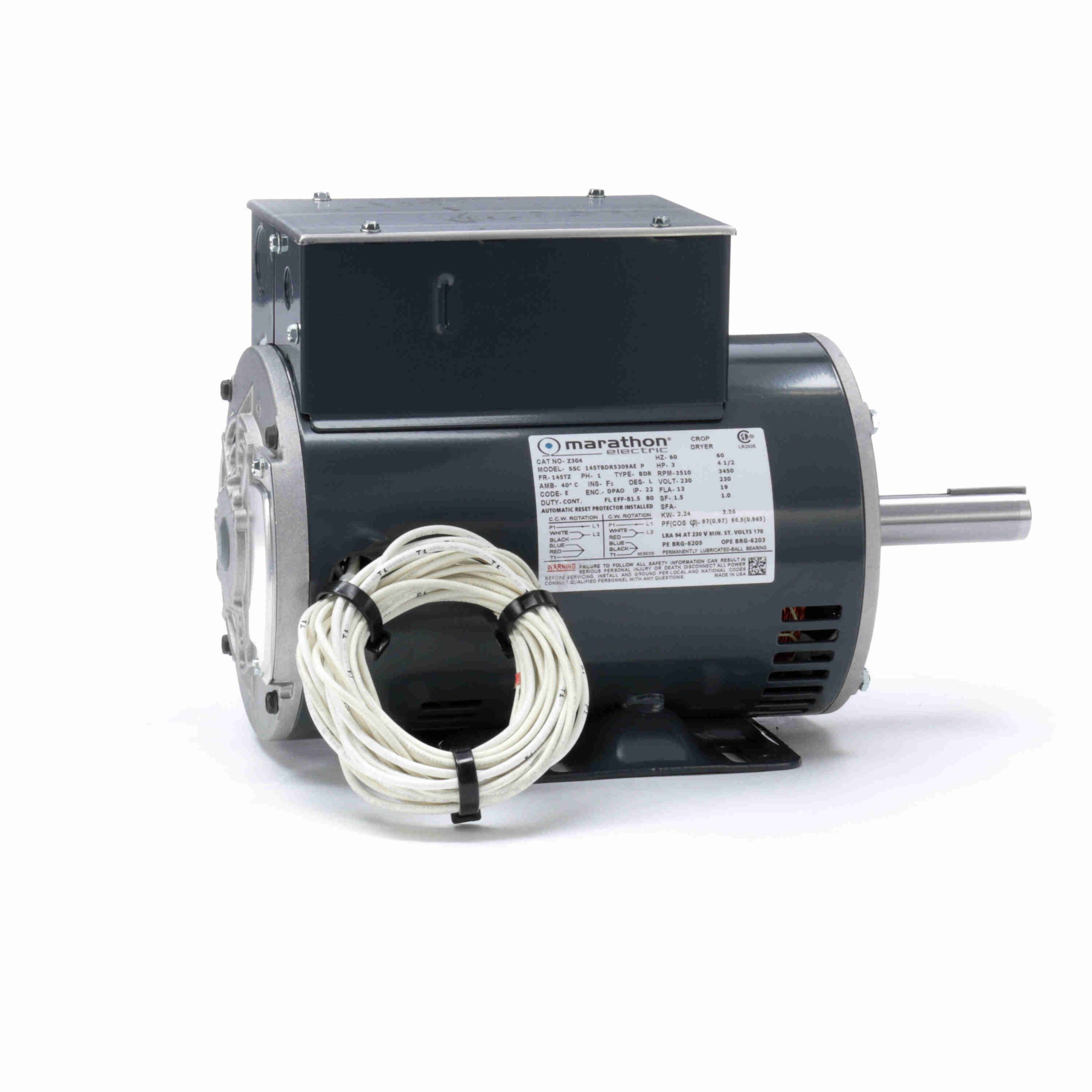

145TBDR5309 – Marathon 3 HP Crop Dryer Motor, 1 phase, 3600 RPM, 230 V, 145TZ Frame, DPAO – Z304
145TBDR5309 Marathon Crop Dryer Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856028433 |
Weight: |
43 LB |
| Packaged Length: |
16.38 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
8.12 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60/60 Hz |
Voltage: |
230 V |
| Current: |
13.0 A |
Speed: |
3510 rpm |
| Service Factor: |
1.5 |
Phase: |
1 |
| Efficiency: |
81.5 % |
Power Factor: |
97 |
| Duty: |
Continous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
E |
| Frame: |
145TZ |
Enclosure: |
Drip Proof Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
No |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
2.89 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
13.74 in |
| Frame Length: |
9.06 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
3.03 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
52.50 |
0.0 |
12.60 |
0.0 |
3,100 |
10.50 |
0.0 |
4.50 |
| Pull-Up |
92.10 |
0.0 |
9.37 |
0.0 |
243 |
18.00 |
0.0 |
4.50 |
| Locked-Rotor |
94.00 |
0.0 |
10.80 |
0.0 |
0 |
17.90 |
0.0 |
4.50 |
