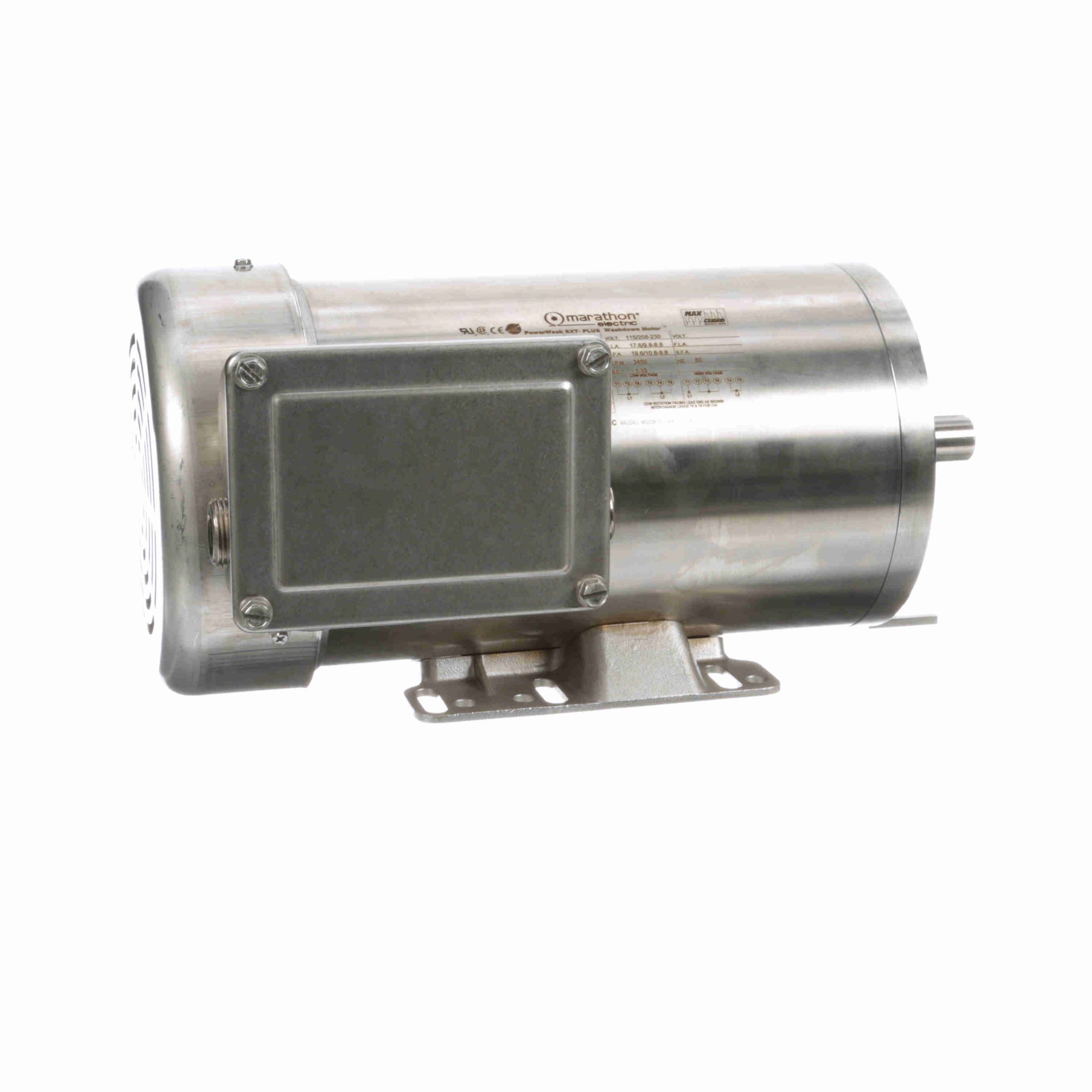

145TBWD5301 – Marathon 2 HP Washdown Motor, 1 phase, 3600 RPM, 115/208-230 V, 145TC Frame, TEFC – N288
145TBWD5301 Marathon Washdown Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856030528 |
Weight: |
56 LB |
| Packaged Length: |
19.69 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
10.63 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
17.6/9.8-8.8 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
80 % |
Power Factor: |
94 |
| Duty: |
Continous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
J |
| Frame: |
145TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.976 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
14.87 in |
| Frame Length: |
9.50 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.12 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
|
7.40 |
247.0 |
2,900 |
|
|
2.00 |
| Pull-Up |
0.00 |
|
7.20 |
240.0 |
2,700 |
|
|
2.00 |
| Locked-Rotor |
60.00 |
|
7.50 |
250.0 |
0 |
|
|
2.00 |
| Full Load |
8.80 |
|
3.00 |
100.0 |
3,490 |
|
|
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
1.91 |
3.00 |
4.66 |
6.49 |
8.65 |
10.97 |
13.69 |
| Rated Output (KW) |
0.25 |
0.57 |
0.97 |
1.39 |
1.87 |
2.38 |
2.96 |
| Efficiency (%) |
0.0 |
64.7 |
77.2 |
80.4 |
80.1 |
78.4 |
75.6 |
| Power Factor (%) |
56.9 |
83.0 |
90.8 |
93.4 |
94.0 |
94.3 |
94.0 |
| Speed (RPM) |
3,598 |
3,574 |
3,549 |
3,521 |
3,490 |
3,446 |
3,399 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
85.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.73 |
1.49 |
2.24 |
3.02 |
3.81 |
4.63 |
