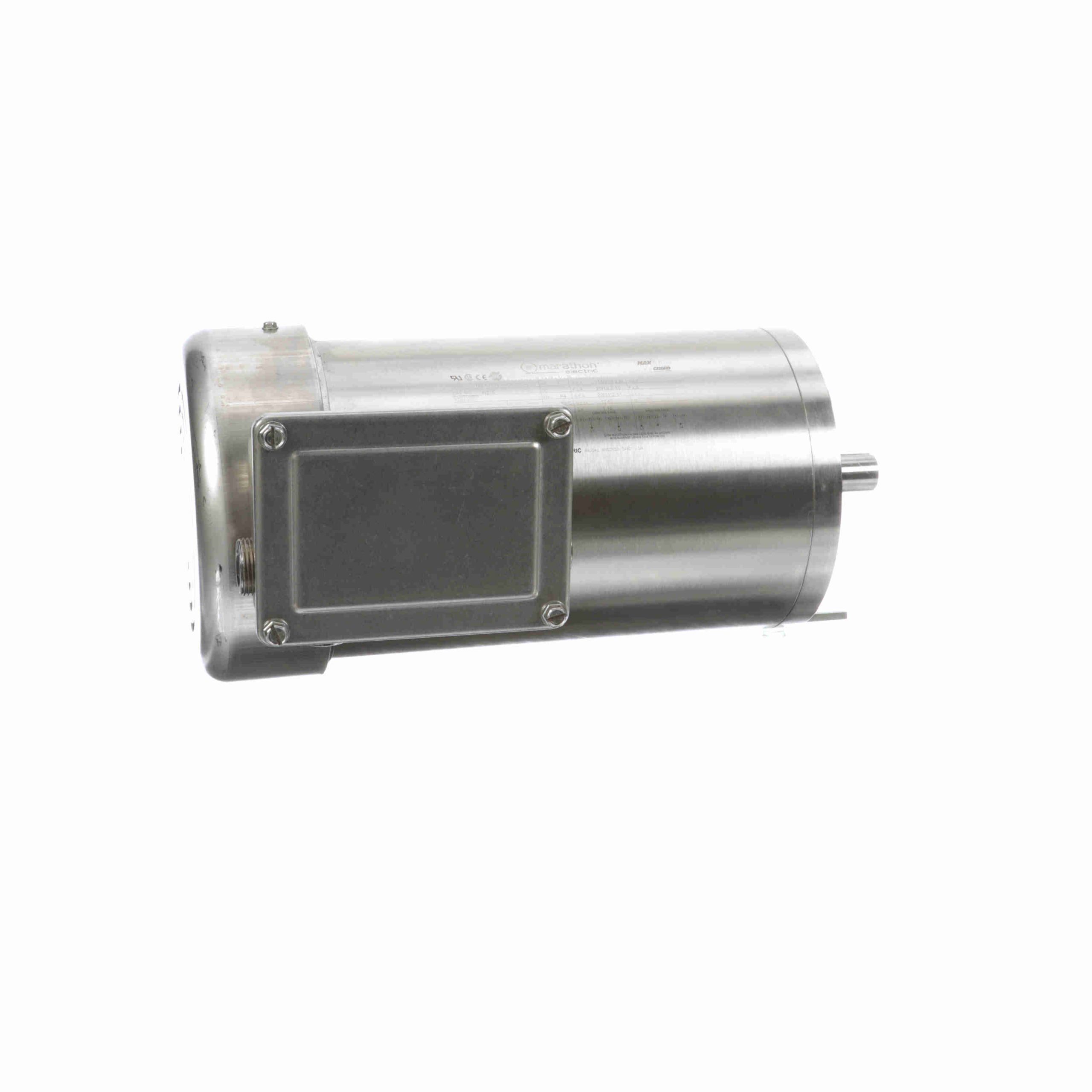

145TBWD5326 – Marathon 2 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 145TC Frame, TEFC – N275

145TBWD5326 – Marathon 2 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 145TC Frame, TEFC – N275

145TBWD5326 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Encapsulated electronic starting switch is impervious to moisture
  • Capacitor start/capacitor run design for reduced amperage
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 303 stainless steel shaft with spring loaded contact seals in each end
  • 300 Series Stainless steel external construction: frame, endshields, conduit box, fan guard, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure

Marathon Motors
Regal Beloit

Description

145TBWD5326 – Marathon 2 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 145TC Frame, TEFC – N275

145TBWD5326 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856030436 Weight: 53 LB
Packaged Length: 14.63 IN Packaged Width: 11.25 IN
Packaged Height: 10.65 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 20.0/10.2-10.0 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 80 % Power Factor: 80
Duty: Continous Insulation Class: F
Design Code: L KVA Code: J
Frame: 145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: T Overall Length: 14.87 in
Frame Length: 9.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 54.30 503.0 14.40 240.0 0 8.80 0.0 2.00
Full Load 10.80 100.0 6.00 100.0 1,760 1.90 76.3 2.00
Locked-Rotor 74.50 690.0 19.00 317.0 0 13.10 76.5 2.00
Break-Down 39.00 361.0 18.00 300.0 1,530 7.70 85.6 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 %
Current (Amps) 6.90 7.10 8.00 9.30 10.75 11.80
Rated Output (KW) 0.37 0.70 1.07 1.50 1.90 2.15
Efficiency (%) 0.0 53.4 69.8 76.2 78.5 79.8
Power Factor (%) 23.2 42.2 58.5 69.3 76.5 79.5
Speed (RPM) 1,800 1,790 1,780 1,770 1,760 1,755
Temp. Rise @ FL 0.0 0.0 0.0 0.0 91.0 0.0
Torque (ft-lbs) 0.00 1.45 3.00 4.50 6.00 6.90
