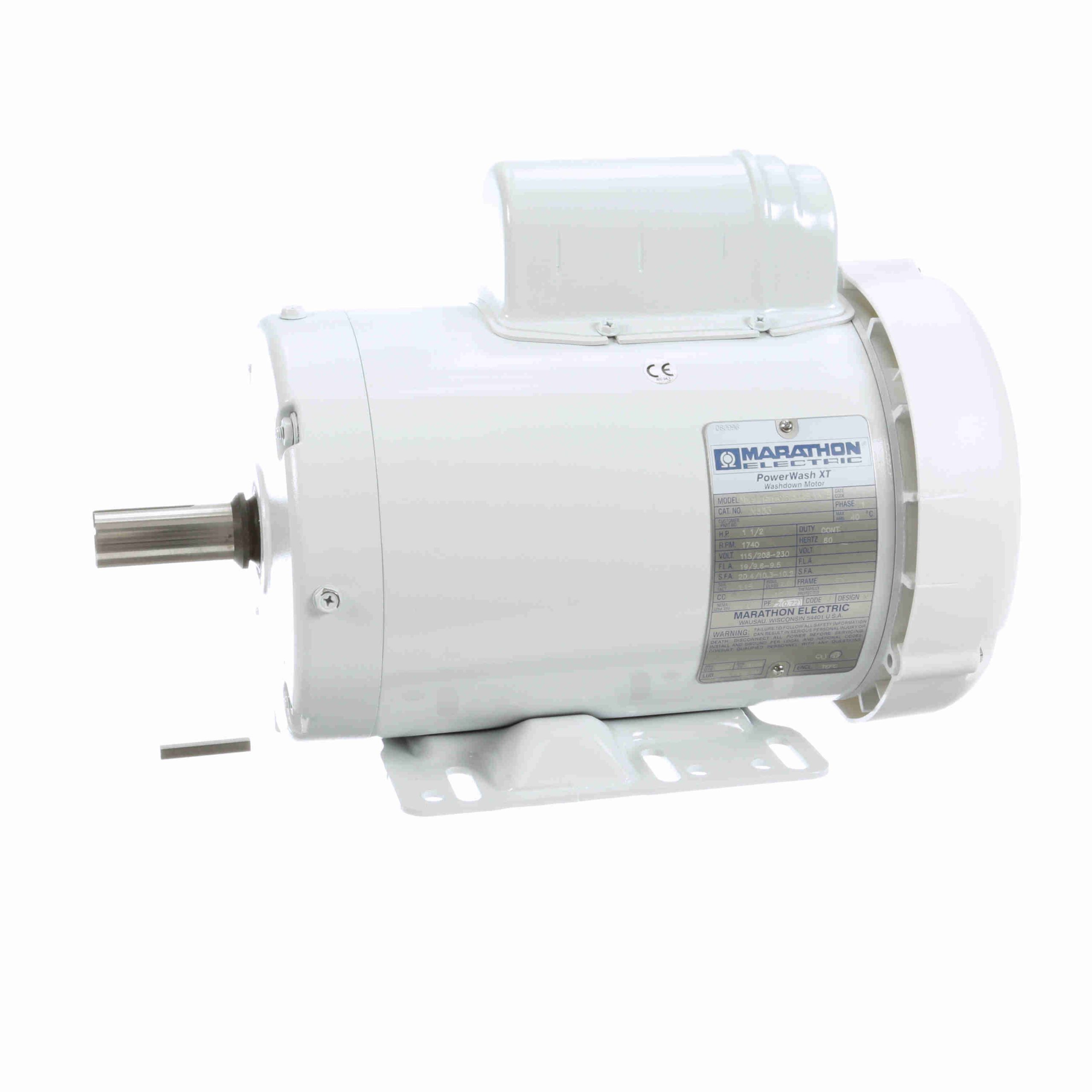

145TCWR5326 – Marathon 1.50 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 145T Frame, TEFC – N683

145TCWR5326 – Marathon 1.50 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 145T Frame, TEFC – N683

145TCWR5326 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Encapsulated electronic starting switch is impervious to moisture
  • Capacitor start induction run design for high starting torque
  • Class F insulation
  • Double sealed ball bearings
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware
  • Cast oversized conduit box with high temperature Nitrile gaskets and threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • F1 mounting only, cannot reassemble to F2

Marathon Motors
Regal Beloit

Description

145TCWR5326 – Marathon 1.50 HP Washdown Motor, 1 phase, 1800 RPM, 115/208-230 V, 145T Frame, TEFC – N683

145TCWR5326 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856028815 Weight: 43 LB
Packaged Length: 19.69 IN Packaged Width: 11.25 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 19.0/9.6-9.5 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 71 % Power Factor: 72
Duty: Continous Insulation Class: F
Design Code: N KVA Code: J
Frame: 145T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.43 in
Frame Length: 7.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.38 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 9.96 100.0 54.00 100.0 1,749 1.62 0.0 1.50
Pull-Up 42.05 422.0 81.00 150.0 1,175 7.01 0.0 1.50
Locked-Rotor 50.95 512.0 150.00 278.0 0 9.76 0.0 1.50
Break-Down 31.72 318.0 150.00 278.0 1,500 6.32 0.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 6.29 6.55 7.35 8.40 9.72 11.35 13.34
Rated Output (KW) 0.27 0.58 0.90 1.23 1.58 1.98 2.43
Efficiency (%) 0.0 48.9 62.7 68.5 70.4 69.9 67.3
Power Factor (%) 18.9 38.7 53.4 63.7 70.8 75.6 79.0
Speed (RPM) 1,795 1,783 1,771 1,759 1,743 1,726 1,704
Temp. Rise @ FL 0.0 0.0 0.0 0.0 105.0 0.0 0.0
Torque (ft-lbs) 0.00 18.00 36.00 54.00 72.00 90.00 108.00
