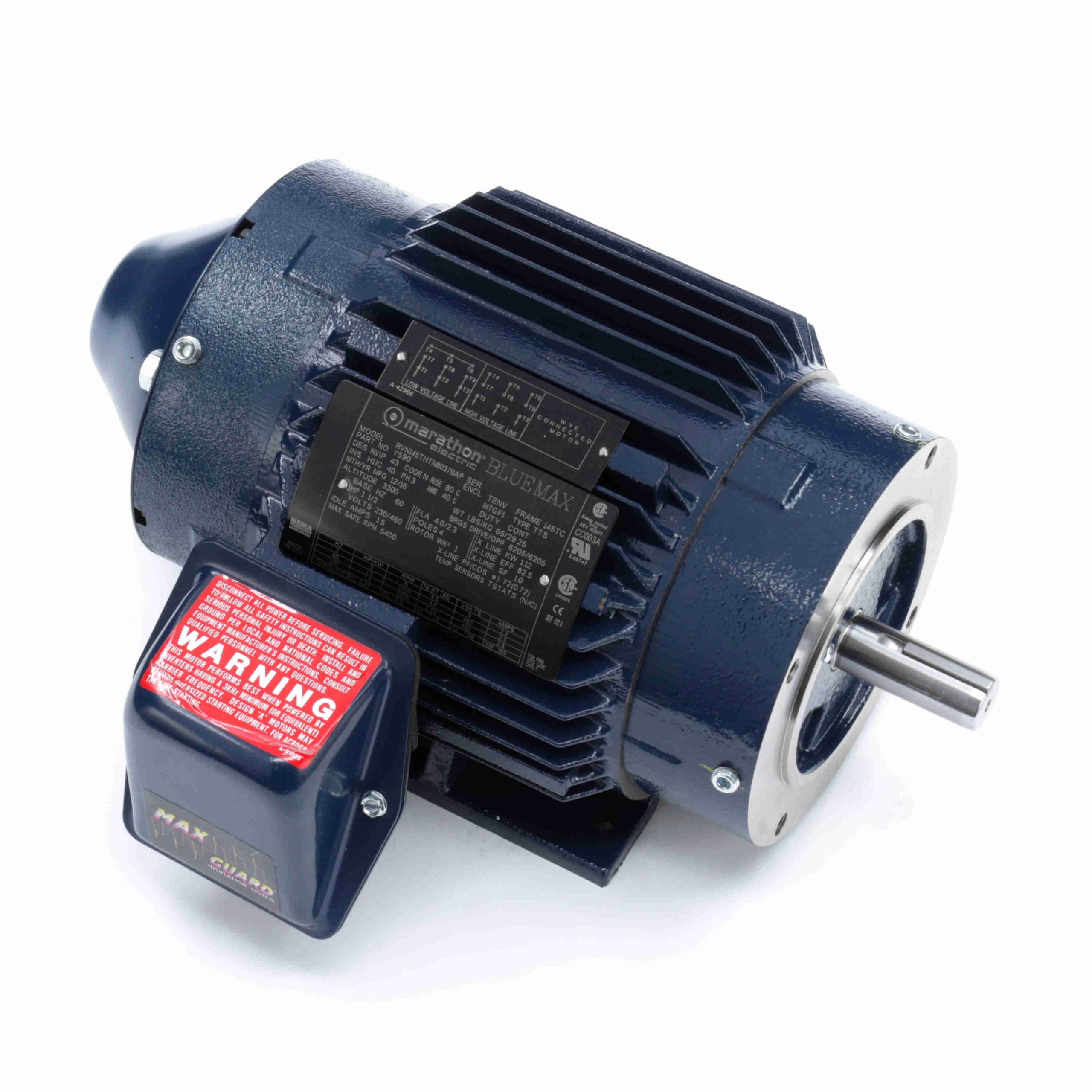

145THTN8037 – Marathon 1.50 HP Variable Speed Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, TENV – Y590
145THTN8037 Marathon 2000:1 With Encoder Provision Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856025357 |
Weight: |
65 LB |
| Packaged Length: |
15.82 IN |
Packaged Width: |
12.56 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
4.6/2.3 A |
Speed: |
1750 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
82.5 % |
Power Factor: |
72 |
| Duty: |
Continuous |
Insulation Class: |
H |
| Design Code: |
INV |
KVA Code: |
N |
| Frame: |
145TC |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Duty |
Starting Method: |
Inverter Only |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
9.05 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
14.68 in |
| Frame Length: |
6.25 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.12 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
23.00 |
1,000.0 |
18.00 |
400.0 |
0 |
|
70.0 |
1.50 |
| 1/3 |
21.00 |
913.0 |
15.00 |
333.0 |
200 |
|
|
1.50 |
| Full Load |
2.30 |
100.0 |
4.50 |
100.0 |
1,750 |
|
|
1.50 |
| No Load |
1.50 |
65.0 |
0.00 |
0.0 |
1,800 |
|
|
1.50 |
| Break-Down |
14.50 |
630.0 |
24.00 |
533.0 |
1,200 |
|
90.0 |
1.50 |
| 2/3 |
17.00 |
739.0 |
17.00 |
378.0 |
800 |
|
|
1.50 |
| Pull-Up |
19.00 |
826.0 |
15.50 |
344.0 |
550 |
|
|
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
200 % |
| Current (Amps) |
1.50 |
1.60 |
1.70 |
2.00 |
2.30 |
2.70 |
3.10 |
4.10 |
| Rated Output (KW) |
0.11 |
0.40 |
0.70 |
1.00 |
1.33 |
1.70 |
2.10 |
2.90 |
| Efficiency (%) |
0.0 |
70.0 |
80.0 |
83.5 |
82.5 |
82.5 |
81.5 |
77.5 |
| Power Factor (%) |
9.0 |
32.0 |
50.0 |
63.0 |
72.0 |
78.0 |
84.0 |
88.0 |
| Speed (RPM) |
1,800 |
1,785 |
1,775 |
1,765 |
1,750 |
1,735 |
1,710 |
1,668 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
80.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.10 |
2.20 |
3.40 |
4.50 |
5.70 |
6.90 |
9.50 |
