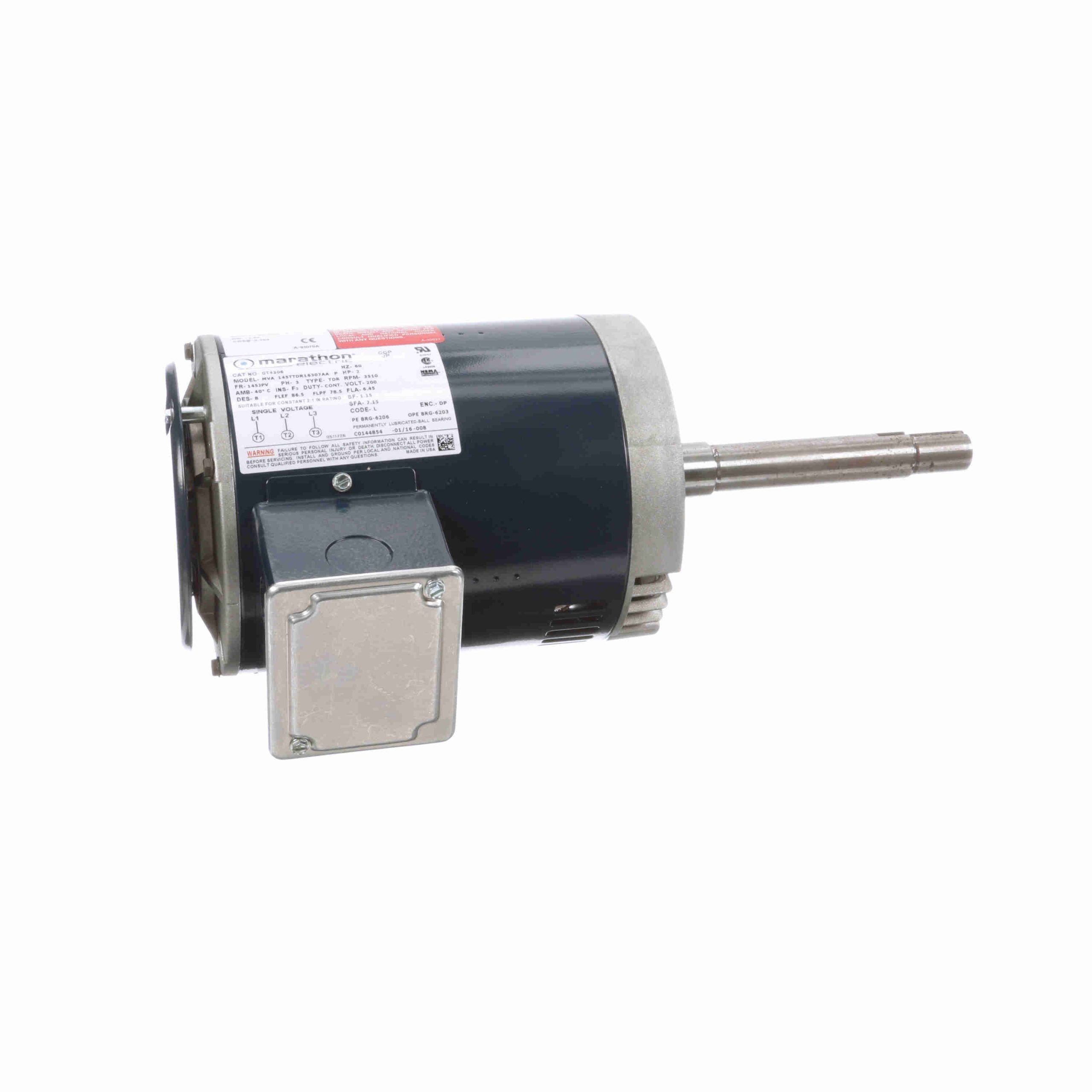

145TTDR16307 – Marathon 2 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 145JPV Frame, ODP – GT4306

145TTDR16307 – Marathon 2 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 145JPV Frame, ODP – GT4306

145TTDR16307 Marathon JP Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Class F Insulation
  • F1 mounting only, cannot reassemble to F2
  • Drip cover included

Marathon Motors
Regal Beloit

Description

145TTDR16307 – Marathon 2 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 200 V, 145JPV Frame, ODP – GT4306

145TTDR16307 Marathon JP Motors

General Specifications

UPC: 722856004079 Weight: 38 LB
Packaged Length: 19 IN Packaged Width: 10.88 IN
Packaged Height: 9.75 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 200 V
Current: 6.5 A Speed: 3510 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 78.5
Duty: Continous Insulation Class: F
Design Code: B KVA Code: L
Frame: 145JPV Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 7.6 Ohms Mounting: Round
Motor Orientation: Horizontal Or Shaft Down Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: JP Overall Length: 16.48 in
Frame Length: 7.06 in Shaft Diameter: 0.875 in
Shaft Extension: 7.31 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 16.20 579.0 12.80 427.0 2,570 81.0 2.00
2/3 19.80 707.0 12.00 400.0 2,000 2.00
Locked-Rotor 24.20 864.0 9.00 300.0 64.5 2.00
Pull-Up 21.80 779.0 11.00 367.0 1,500 2.00
1/3 23.80 850.0 8.60 287.0 260 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 120 % 125 % 150 % 175 %
Current (Amps) 3.45 3.91 4.60 5.29 6.44 7.13 7.36 7.59 8.74 10.12
Rated Output (KW) 0.12 0.50 1.00 1.30 1.70 2.00 2.10 2.20 2.60 3.10
Efficiency (%) 0.0 74.5 83.0 86.0 86.5 86.5 85.4 86.0 85.5 84.0
Power Factor (%) 10.0 37.0 58.0 71.0 78.5 81.0 84.9 83.0 85.5 87.5
Speed (RPM) 3,600 3,580 3,560 3,540 3,510 3,500 3,500 3,495 3,470 3,440
Temp. Rise @ FL 0.0 0.0 0.0 0.0 38.0 50.0 0.0 65.0 0.0 0.0
Torque (ft-lbs) 0.00 0.71 1.50 2.20 3.00 3.50 3.60 3.80 4.50 5.30
