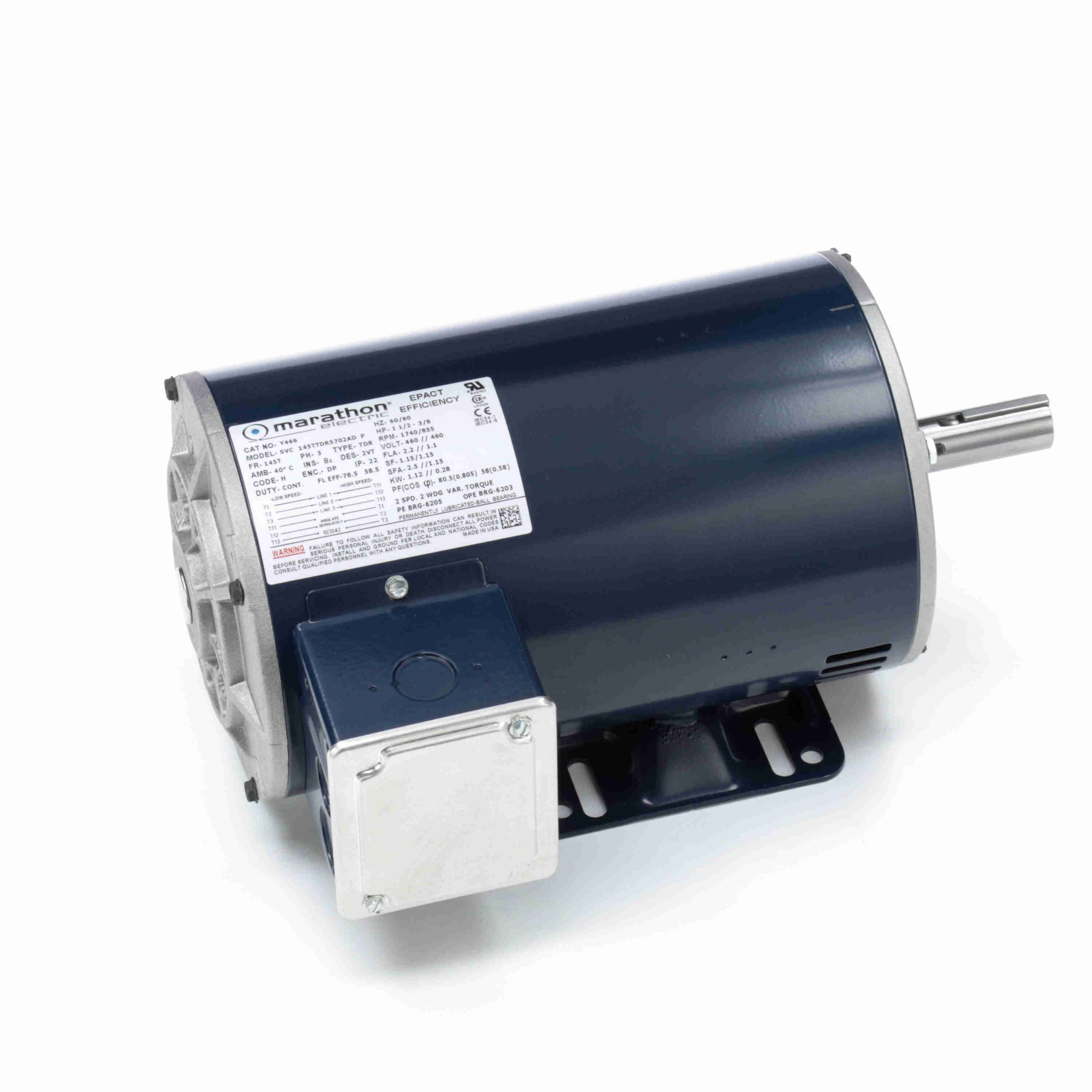

145TTDR5702 – Marathon 1.50,0.38 HP 2 speed Definite Purpose AC Motor, 3 phase, 1800/900 RPM, 460 V, 145T Frame, ODP – Y466
145TTDR5702 Marathon Other Purpose Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856042538 |
Weight: |
47 LB |
| Packaged Length: |
16.38 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
8.12 IN |
Nameplate Specifications
| Output HP: |
1.50,0.38 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60/60 Hz |
Voltage: |
460 V |
| Current: |
2.2,1.1 A |
Speed: |
1740,855 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
78.5 % |
Power Factor: |
80.5 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
2VT |
KVA Code: |
H |
| Frame: |
145T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4//8 |
Rotation: |
Reversible |
| Resistance Main: |
19.1 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
13.49 in |
| Frame Length: |
9.56 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.28 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
11.50 |
523.0 |
8.50 |
189.0 |
1,000 |
|
|
1.50 |
| 1/3 |
12.50 |
568.0 |
6.70 |
149.0 |
365 |
|
|
1.50 |
| Locked-Rotor |
14.00 |
636.0 |
8.40 |
187.0 |
|
|
75.0 |
1.50 |
| 2/3 |
10.50 |
477.0 |
10.00 |
222.0 |
1,200 |
|
|
1.50 |
| Break-Down |
7.70 |
350.0 |
11.40 |
253.0 |
1,480 |
|
88.5 |
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
1.20 |
1.30 |
1.50 |
1.80 |
2.20 |
2.50 |
2.70 |
| Rated Output (KW) |
0.10 |
0.40 |
0.70 |
1.10 |
1.40 |
1.60 |
1.80 |
| Efficiency (%) |
0.0 |
67.5 |
77.0 |
78.5 |
78.5 |
78.5 |
77.0 |
| Power Factor (%) |
11.5 |
41.0 |
61.0 |
73.5 |
80.5 |
83.5 |
85.0 |
| Speed (RPM) |
1,800 |
1,790 |
1,775 |
1,755 |
1,740 |
1,735 |
1,720 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
70.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.10 |
2.20 |
3.40 |
4.50 |
5.20 |
5.70 |
