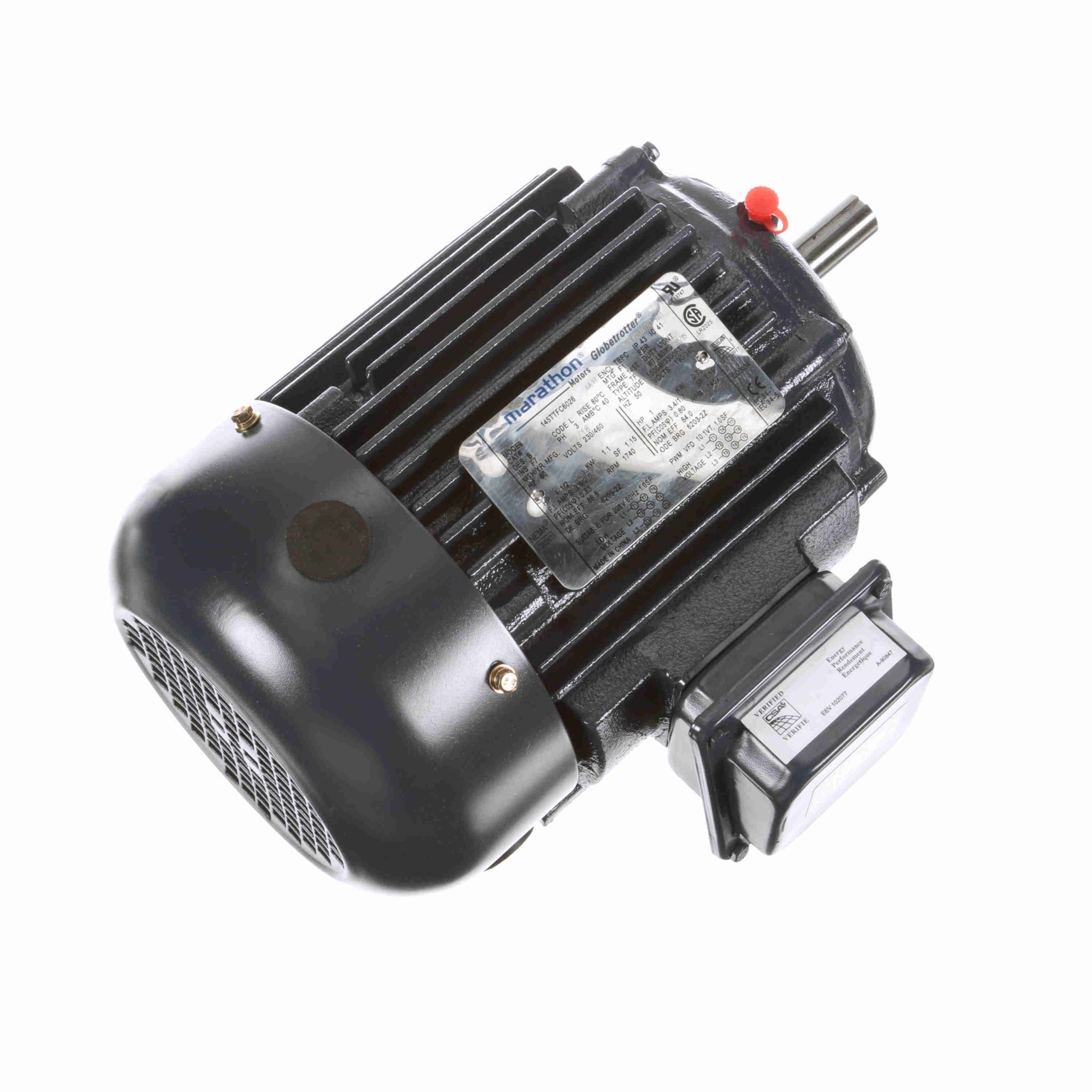

145TTFC6026 – Marathon 1.50 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 145T Frame, TEFC – GT1004
145TTFC6026 Marathon Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856049612 |
Weight: |
62 LB |
| Packaged Length: |
14.96 IN |
Packaged Width: |
12.79 IN |
| Packaged Height: |
9.8 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
4.0/2.0 A |
Speed: |
1740 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
86.5 % |
Power Factor: |
83 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
145T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Mounting: |
Rigid base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Cast Iron |
Shaft Type: |
T |
| Overall Length: |
14.20 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
0.95 |
48.5 |
0.00 |
0.0 |
1,800 |
|
9.0 |
1.50 |
| 1/3 |
16.50 |
692.0 |
13.00 |
280.0 |
600 |
|
|
1.50 |
| Full Load |
2.00 |
100.0 |
4.50 |
100.0 |
1,740 |
|
83.0 |
1.50 |
| 2/3 |
13.00 |
615.0 |
14.00 |
311.0 |
1,200 |
|
|
1.50 |
| Locked-Rotor |
17.50 |
875.0 |
14.60 |
320.0 |
0 |
|
67.0 |
1.50 |
| Break-Down |
10.00 |
513.0 |
17.50 |
385.0 |
1,650 |
|
81.0 |
1.50 |
| Pull-Up |
15.00 |
667.0 |
12.00 |
267.0 |
900 |
|
|
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
0.95 |
1.05 |
1.30 |
1.60 |
2.00 |
2.20 |
2.35 |
| Rated Output (KW) |
0.15 |
0.37 |
0.67 |
1.00 |
1.30 |
1.50 |
1.60 |
| Efficiency (%) |
0.0 |
76.5 |
84.0 |
86.5 |
86.5 |
86.5 |
85.5 |
| Power Factor (%) |
9.0 |
44.0 |
66.0 |
78.0 |
83.0 |
85.0 |
86.0 |
| Speed (RPM) |
1,800 |
1,785 |
1,770 |
1,756 |
1,740 |
1,730 |
1,725 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
65.0 |
85.0 |
105.0 |
| Torque (ft-lbs) |
0.00 |
1.10 |
2.20 |
3.40 |
4.50 |
5.20 |
5.70 |
