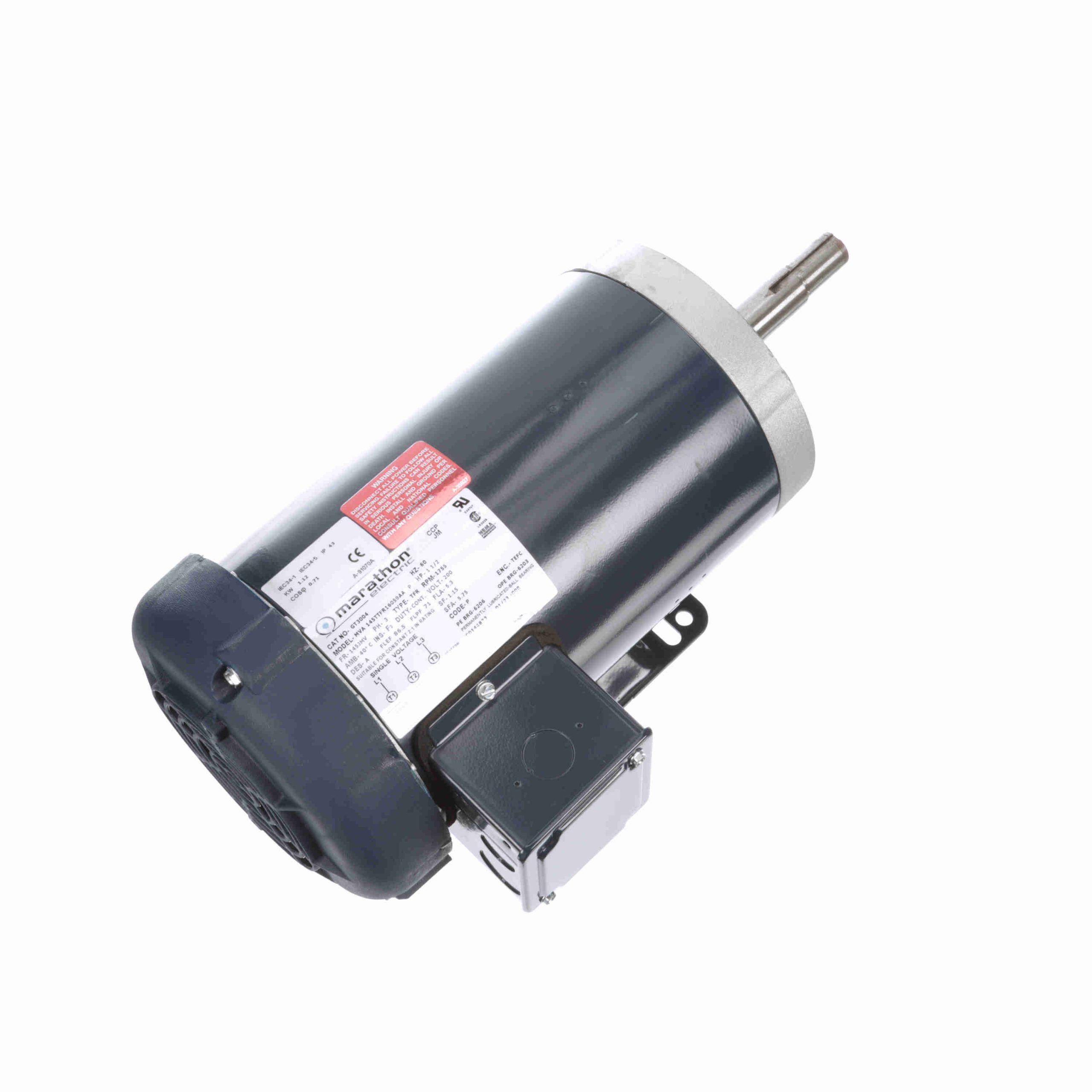

145TTFR16059 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 200 V, 145JMV Frame, TEFC – GT3004

145TTFR16059 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 200 V, 145JMV Frame, TEFC – GT3004

145TTFR16059 Marathon JM Motors

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Class F Insulation
  • F1 mounting only, cannot reassemble to F2

Marathon Motors
Regal Beloit

Description

145TTFR16059 – Marathon 1.50 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 200 V, 145JMV Frame, TEFC – GT3004

145TTFR16059 Marathon JM Motors

General Specifications

UPC: 722856004741 Weight: 46 LB
Packaged Length: 19 IN Packaged Width: 10.88 IN
Packaged Height: 9.75 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 200 V
Current: 5.3 A Speed: 1755 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 71
Duty: Continuous Insulation Class: F
Design Code: A KVA Code: P
Frame: 145JMV Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 7.9 Ohms Mounting: Rigid base
Motor Orientation: Horizontal Or Shaft Down Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: JM Overall Length: 16.50 in
Frame Length: 9.06 in Shaft Diameter: 0.875 in
Shaft Extension: 4.25 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 1.50 65.0 0.00 0.0 1,800 0.00 0.0 1.50
Break-Down 16.00 696.0 26.00 578.0 1,190 0.00 85.5 1.50
Pull-Up 23.30 1,013.0 20.20 449.0 130 0.00 0.0 1.50
1/3 22.80 991.0 18.00 400.0 600 0.00 0.0 1.50
Full Load 2.30 100.0 4.50 100.0 1,755 0.00 0.0 1.50
2/3 19.20 835.0 22.30 496.0 1,200 0.00 0.0 1.50
Locked-Rotor 24.00 1,043.0 21.20 471.0 0 0.00 69.5 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 3.45 3.57 4.03 4.60 5.29 5.75 6.10
Rated Output (KW) 0.09 0.38 0.68 1.00 1.30 1.50 1.65
Efficiency (%) 0.0 74.0 82.5 85.5 86.5 86.5 85.5
Power Factor (%) 7.5 30.5 49.0 62.5 71.0 75.0 77.0
Speed (RPM) 1,800 1,790 1,780 1,765 1,755 1,750 1,745
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 45.0 60.0
Torque (ft-lbs) 0.00 1.10 2.20 3.50 4.50 5.20 5.65
