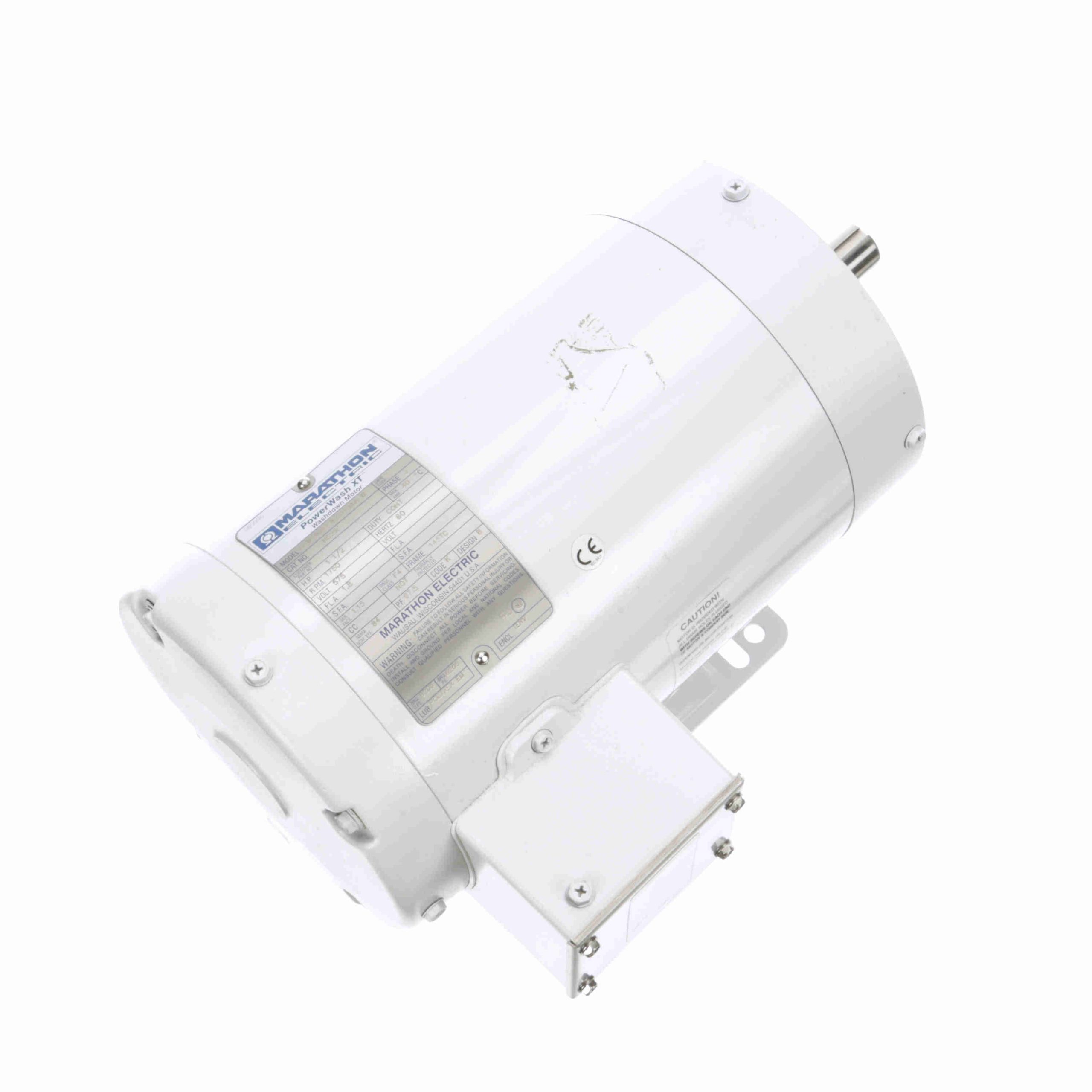

145TTVR5030 – Marathon 1.50 HP Washdown Motor, 3 phase, 1800 RPM, 575 V, 145TC Frame, TENV – N629

145TTVR5030 – Marathon 1.50 HP Washdown Motor, 3 phase, 1800 RPM, 575 V, 145TC Frame, TENV – N629

145TTVR5030 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • 10:1 Variable torque, Constant torque speed range as listed below
  • MAX GUARD® Class F insulation system, F1 mounting only, cannot reassemble to F2
  • Will become build-up item when current stock is gone
  • Double sealed ball bearings, Totally enclosed, non-ventilated
  • 303 Stainless steel shaft with spring loaded contact seals in each endshield (Drive end only on TENV motors)
  • Stainless steel conduit box cover, nameplate, fan guard (TEFC only) and hardware
  • Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance
  • Plugged drain holes in each endshield for all angle mounting
  • Internal corrosion resistant coatings on frame, base, endshields, rotor and stator
  • USDA-approved, white epoxy RUST-OLEUM® paint,UL Recognized, CSA Certified and CE Mark

Marathon Motors
Regal Beloit

Description

145TTVR5030 – Marathon 1.50 HP Washdown Motor, 3 phase, 1800 RPM, 575 V, 145TC Frame, TENV – N629

145TTVR5030 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856029683 Weight: 45 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 575 V
Current: 1.8 A Speed: 1750 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 84 % Power Factor: 67.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 145TC Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: N
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 14.54 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.12 in
Frame Length: 8.00 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 14.20 316.0 0 0.00 0.0 1.50
Locked-Rotor 13.40 788.0 15.10 336.0 0 0.00 0.0 1.50
Break-Down 0.00 0.0 17.00 378.0 0 0.00 0.0 1.50
Full Load 1.70 100.0 4.50 100.0 1,750 0.00 0.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.80 0.00 0.00 0.00 0.00 0.00 0.00
Rated Output (KW) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Efficiency (%) 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Power Factor (%) 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Speed (RPM) 0 0 0 0 0 0 0
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
