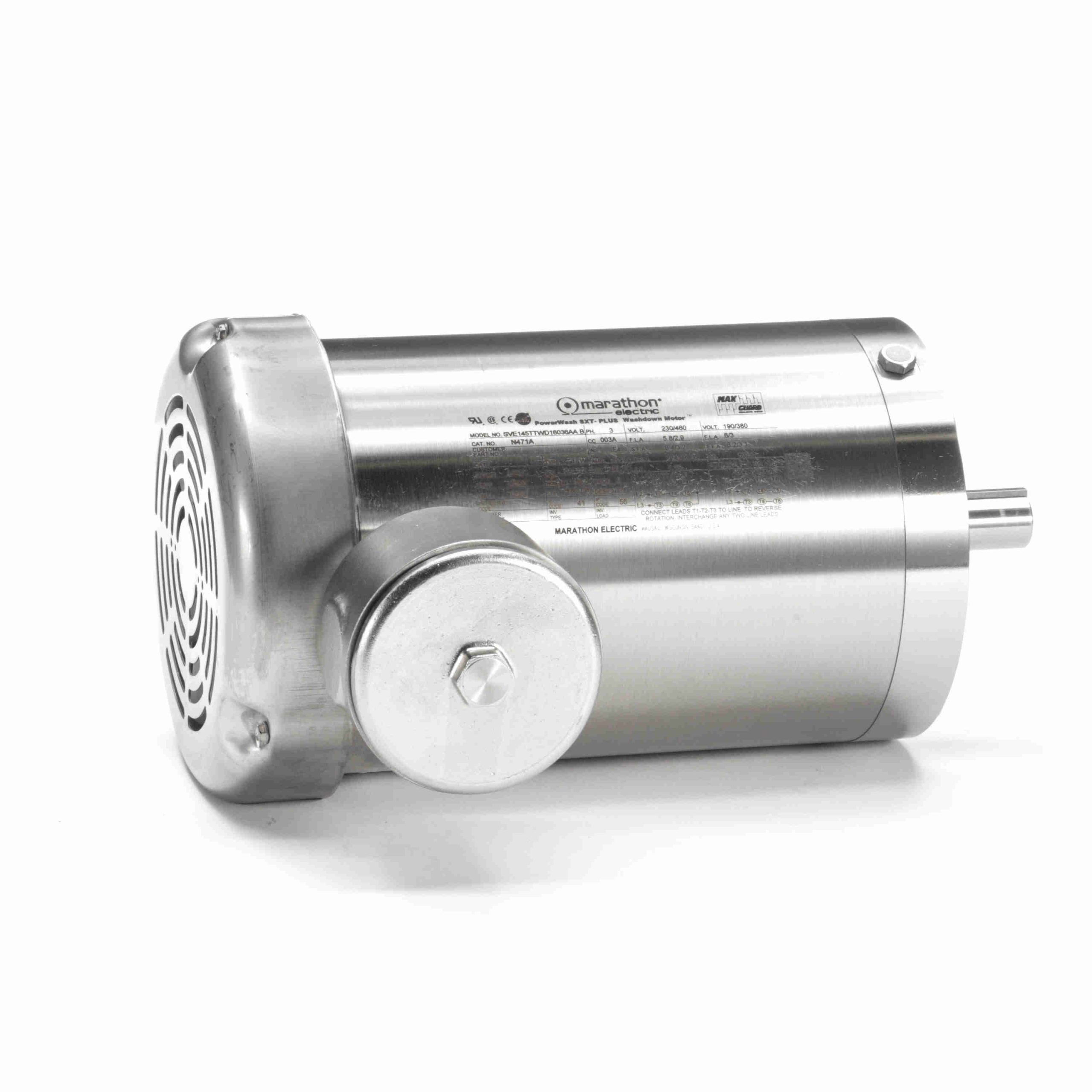

145TTWD16036 – Marathon 2 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, TEFC – N471A

145TTWD16036 – Marathon 2 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, TEFC – N471A

145TTWD16036 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Suitable for use on VFD, 10:1 Variable torque, 10:1 (TEFC) or 1000:1 (TENV) Constant Torque
  • MAX GUARD® Class F insulation system
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Double sealed ball bearings with moisture resistant, high temperature grease
  • 300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, mounting base and hardware for superior corrosion resistance
  • Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator
  • 100% Paint-free construction
  • Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals
  • Hydrophobic breather in OP endshield and conduit box equalize air pressure

Marathon Motors
Regal Beloit

Description

145TTWD16036 – Marathon 2 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, TEFC – N471A

145TTWD16036 Marathon Washdown Duty Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 722856053893 Weight: 82 LB
Packaged Length: 18.31 IN Packaged Width: 13.5 IN
Packaged Height: 13.44 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 5.8/2.9 A Speed: 1745 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 75.6
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 6 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: T Overall Length: 13.25 in
Frame Length: 8.25 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F1/F2 Capable

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 25.37 1,268.0 24.60 410.0 120 14.10 0.0 2.00
Locked-Rotor 26.58 1,329.0 24.60 410.0 0 14.36 0.0 2.00
Break-Down 19.17 958.0 28.80 480.0 1,100 12.00 0.0 2.00
Full Load 2.00 100.0 6.00 100.0 1,757 1.70 72.1 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 1.70 1.90 2.20 2.60 2.90 3.20 3.50 4.10
Rated Output (KW) 0.10 0.50 0.95 1.35 1.75 2.00 2.15 2.60
Efficiency (%) 0.0 74.5 83.5 85.5 86.5 86.0 85.5 84.0
Power Factor (%) 7.0 33.5 52.0 64.0 75.6 76.5 77.5 80.5
Speed (RPM) 1,800 1,785 1,775 1,762 1,745 1,740 1,730 1,718
Temp. Rise @ FL 0.0 0.0 0.0 0.0 55.0 75.0 85.0 0.0
Torque (ft-lbs) 0.00 1.50 3.00 4.50 6.00 6.90 7.50 9.00
