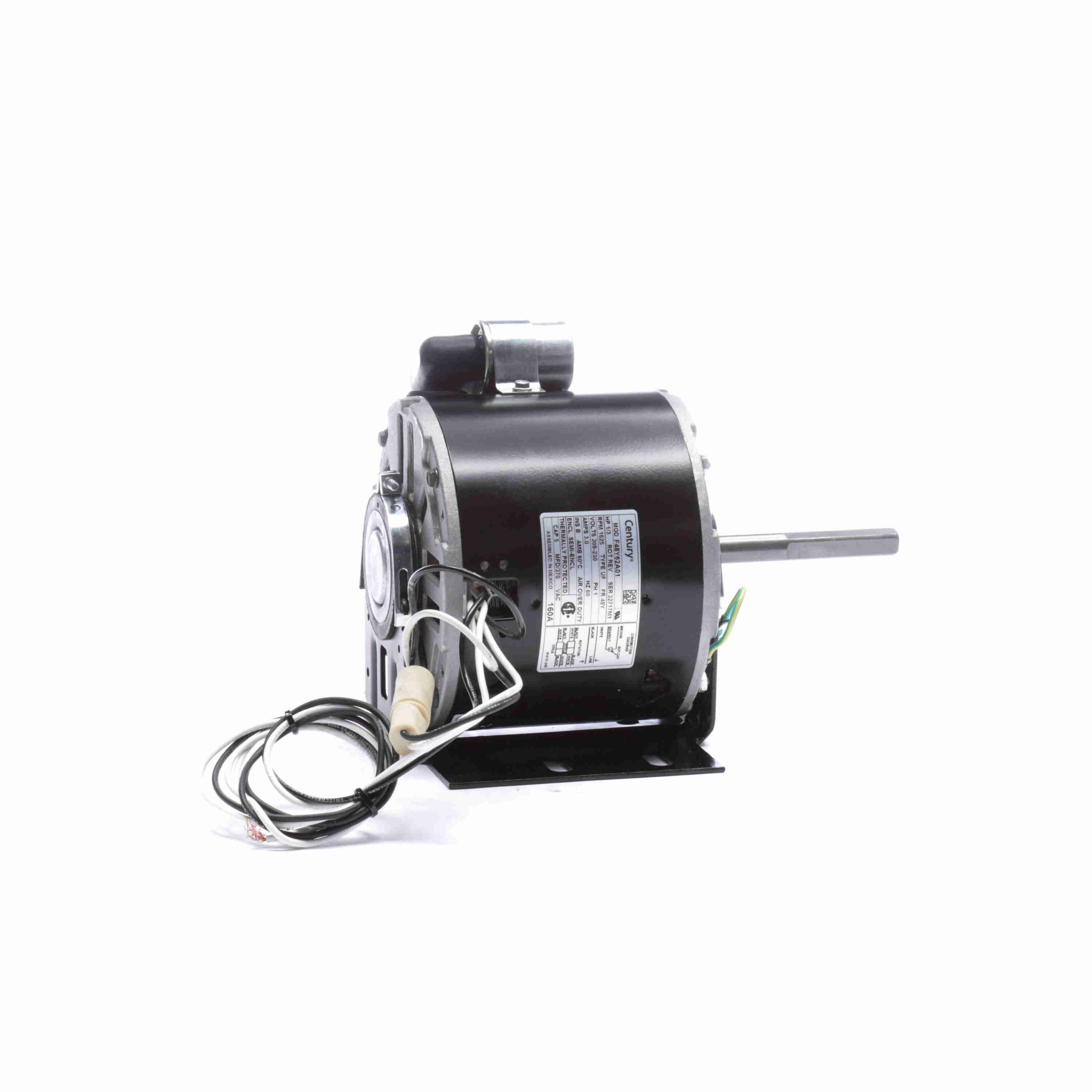

160A – Century 1/3 HP OEM Replacement Motor, 1625 RPM, 208-230 Volts, 48 Frame, Semi Enclosed – 160A
160A Century HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674009968 |
Weight: |
15 LB |
| Packaged Length: |
11 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
1/3 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
3.0 A |
Speed: |
1625 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
F48Y |
Enclosure: |
Semi Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
60 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Mounting: |
Resilient Base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Double Flat |
| Overall Length: |
9.11 in |
Frame Length: |
4.00 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
4.00 in |
