Description

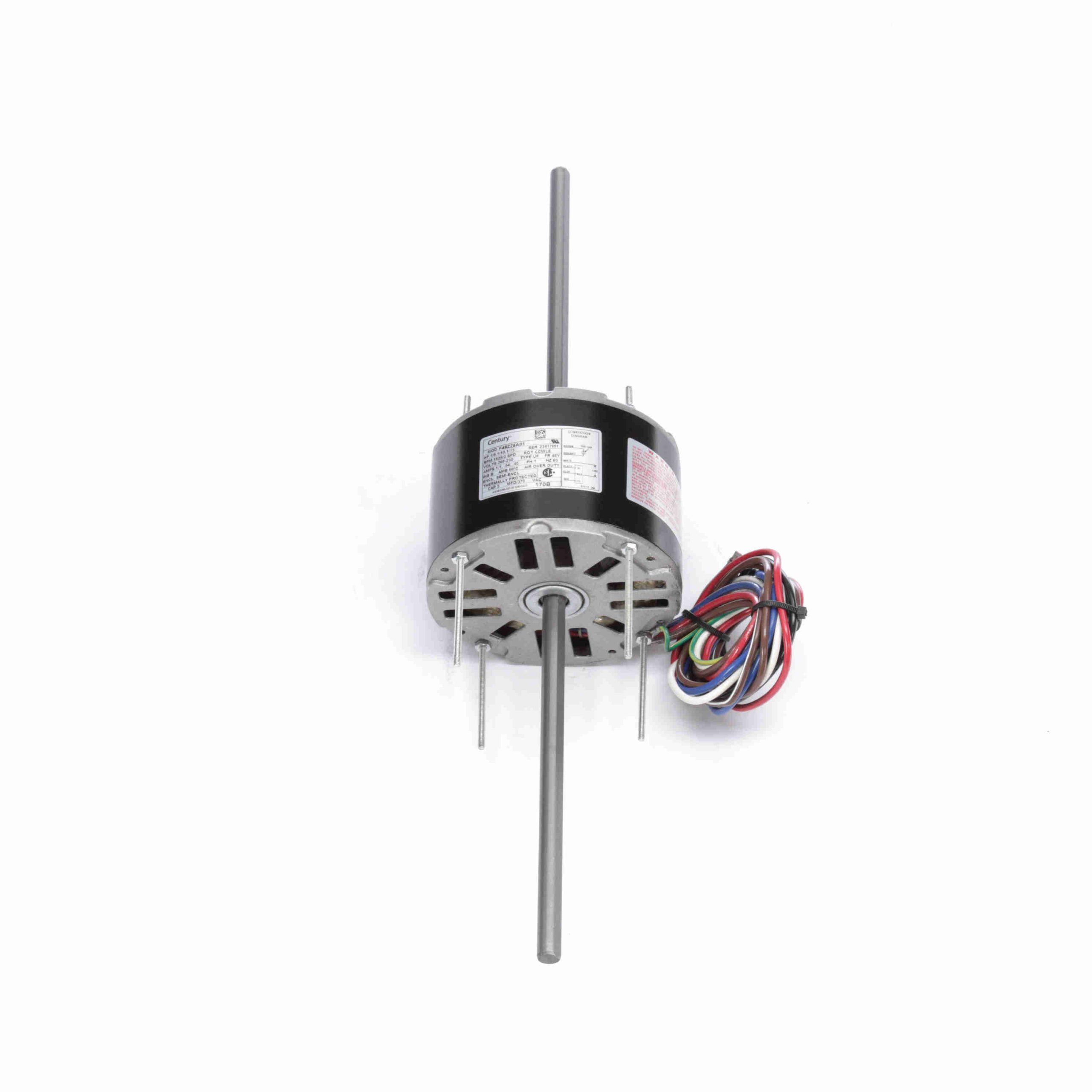

170B – Century 1/6-1/10-1/15 HP Fan Coil / Room Air Conditioner Motor, 1625 RPM, 3 Speed, 208-230 Volts, 48 Frame, Semi Enclosed – 170B
170B Century Fan Coil/Room Air Conditioner Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674009975 |
Weight: |
10 LB |
| Packaged Length: |
22.87 IN |
Packaged Width: |
6.81 IN |
| Packaged Height: |
6.81 IN |
Nameplate Specifications
| Output HP: |
1/6,1/10,1/15 Hp |
Output KW: |
0.13 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
1.1,.54,.40 A |
Speed: |
1625 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
F48Y |
Enclosure: |
Semi Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
60 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Extended Studs |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
20.74 in |
Frame Length: |
3.13 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
8.50 in |
