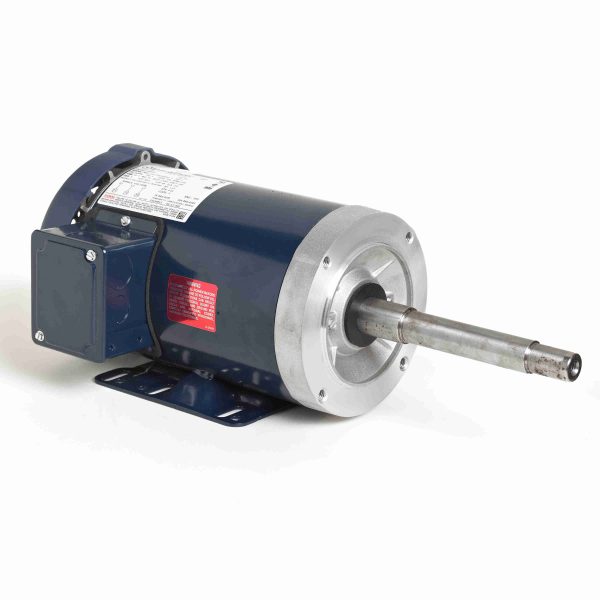

182TTFBD6012 – Marathon 3 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 230/460 V, 182JP Frame, TEFC – GT3409A
182TTFBD6012 Marathon JP Motors
General Specifications
| UPC: |
722856069221 |
Weight: |
126 LB |
| Packaged Length: |
23.44 IN |
Packaged Width: |
15.75 IN |
| Packaged Height: |
12.83 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
8.2/4.1 A |
Speed: |
3530 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
86.5 % |
Power Factor: |
82 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
A |
KVA Code: |
L |
| Frame: |
182JP |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Listed |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
| Hazardous Location: |
DIVISION 2 T2B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
5.35 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
JP |
Shaft Diameter: |
1.25 in |
| Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
2.20 |
55.0 |
0.00 |
0.0 |
3,600 |
0.00 |
10.0 |
3.00 |
| Full Load |
4.00 |
100.0 |
4.50 |
100.0 |
3,522 |
0.00 |
82.0 |
3.00 |
| Pull-Up |
28.00 |
700.0 |
8.00 |
178.0 |
900 |
0.00 |
0.0 |
3.00 |
| 2/3 |
26.50 |
662.0 |
25.50 |
567.0 |
1,500 |
0.00 |
0.0 |
3.00 |
| 1/3 |
28.50 |
712.0 |
7.50 |
167.0 |
300 |
0.00 |
0.0 |
3.00 |
| Break-Down |
19.65 |
491.0 |
16.00 |
356.0 |
3,000 |
0.00 |
82.0 |
3.00 |
| Locked-Rotor |
32.00 |
800.0 |
9.00 |
200.0 |
0 |
0.00 |
55.5 |
3.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
2.00 |
2.35 |
2.75 |
3.30 |
4.00 |
4.40 |
4.70 |
| Rated Output (KW) |
0.19 |
0.77 |
1.35 |
1.96 |
2.59 |
2.98 |
3.25 |
| Efficiency (%) |
0.0 |
73.1 |
82.5 |
85.5 |
86.5 |
86.3 |
86.1 |
| Power Factor (%) |
10.8 |
40.9 |
61.6 |
74.5 |
82.0 |
85.0 |
86.8 |
| Speed (RPM) |
3,600 |
3,585 |
3,570 |
3,545 |
3,535 |
3,529 |
3,520 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
35.0 |
55.0 |
75.0 |
| Torque (ft-lbs) |
0.00 |
1.10 |
2.20 |
3.33 |
4.48 |
5.15 |
5.62 |
