Description

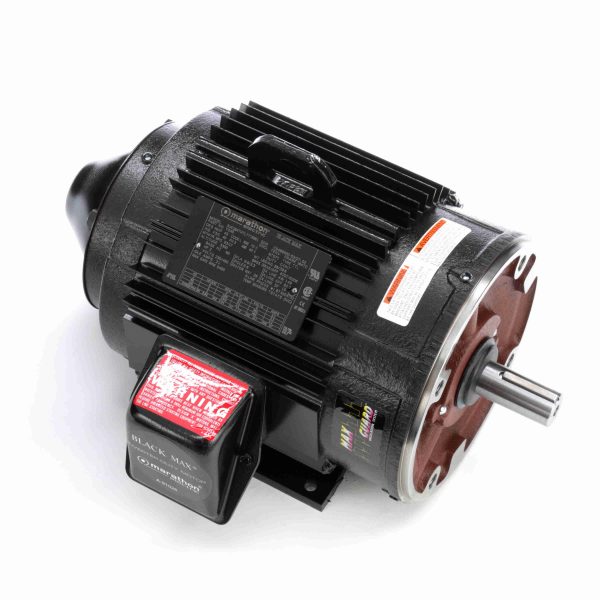

184THTL7776 – Marathon 2 HP Variable Speed Motor, 3 phase, 1200 RPM, 230/460 V, 184TC Frame, TENV – Y540
184THTL7776 Marathon 1000:1 Speed Ratio Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856024763 |
Weight: |
88 LB |
| Packaged Length: |
22.5 IN |
Packaged Width: |
16.81 IN |
| Packaged Height: |
14 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
6.6/3.3 A |
Speed: |
1160 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
82.5 % |
Power Factor: |
67.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
INV |
KVA Code: |
L |
| Frame: |
184TC |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6207 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Duty |
Starting Method: |
Inverter Only |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
6.45 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Aluminum |
| Shaft Type: |
T |
Overall Length: |
16.93 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.62 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
23.50 |
712.0 |
21.00 |
231.0 |
0 |
|
55.0 |
2.00 |
| 1/3 |
22.50 |
682.0 |
19.00 |
209.0 |
250 |
|
|
2.00 |
| Pull-Up |
21.00 |
636.0 |
20.00 |
220.0 |
500 |
|
|
2.00 |
| 2/3 |
19.00 |
576.0 |
24.00 |
264.0 |
750 |
|
|
2.00 |
| Full Load |
3.30 |
100.0 |
9.10 |
100.0 |
1,160 |
|
|
2.00 |
| Break-Down |
14.50 |
439.0 |
34.00 |
374.0 |
925 |
|
72.0 |
2.00 |
| No Load |
2.10 |
64.0 |
0.00 |
0.0 |
1,200 |
|
|
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
200 % |
| Current (Amps) |
2.10 |
2.30 |
2.50 |
2.90 |
3.30 |
3.90 |
0.00 |
0.00 |
| Rated Output (KW) |
0.15 |
0.55 |
1.00 |
1.40 |
1.80 |
2.30 |
0.00 |
0.00 |
| Efficiency (%) |
0.0 |
72.5 |
80.0 |
82.5 |
82.5 |
81.5 |
0.0 |
0.0 |
| Power Factor (%) |
8.0 |
30.0 |
47.0 |
59.5 |
67.5 |
73.0 |
0.0 |
0.0 |
| Speed (RPM) |
1,200 |
1,190 |
1,180 |
1,170 |
1,160 |
1,145 |
0 |
0 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
70.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.20 |
4.50 |
6.70 |
9.10 |
11.50 |
0.00 |
0.00 |
