Description

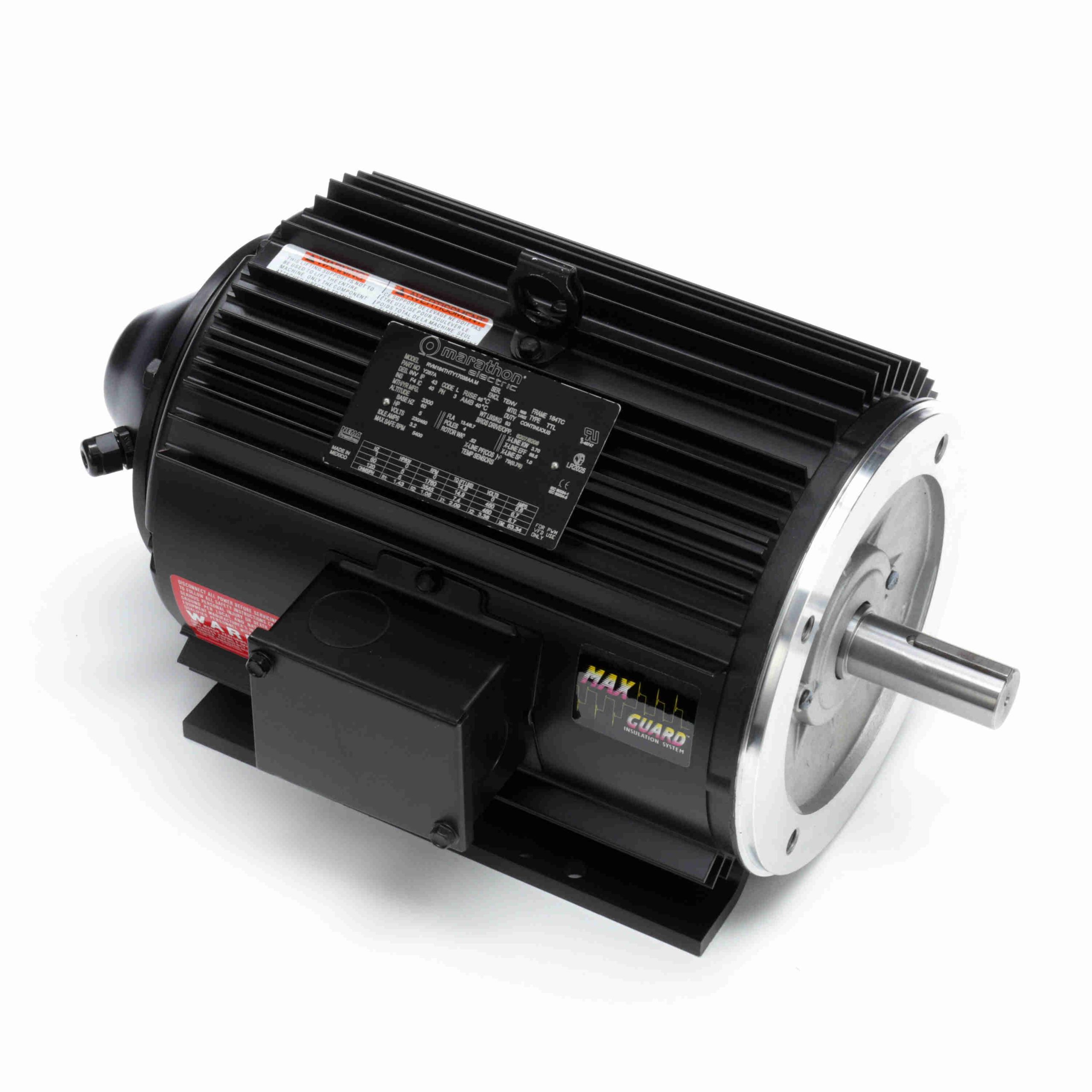

184THTY17038 – Marathon 5 HP Variable Speed Motor, 3 phase, 1800 RPM, 230/460 V, 184TC Frame, TENV – Y287A
184THTY17038 Marathon 1000:1 With Encoder Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856132437 |
Weight: |
93 LB |
| Packaged Length: |
20.44 IN |
Packaged Width: |
13 IN |
| Packaged Height: |
14.94 IN |
Nameplate Specifications
| Output HP: |
5 Hp |
Output KW: |
3.7 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
13.4/6.7 A |
Speed: |
1760 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
89.5 % |
Power Factor: |
78 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
INV |
KVA Code: |
L |
| Frame: |
184TC |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6207 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Duty |
Starting Method: |
Inverter Only |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
2.15 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Aluminum |
| Shaft Type: |
T |
Overall Length: |
17.69 in |
| Frame Length: |
11.00 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.62 in |
Assembly/Box Mounting: |
F1/F2 Capable |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
61.00 |
910.0 |
42.00 |
282.0 |
0 |
0.00 |
52.0 |
5.00 |
| Full Load |
6.70 |
100.0 |
14.90 |
100.0 |
1,760 |
0.00 |
0.0 |
5.00 |
| Pull-Up |
54.90 |
819.0 |
37.80 |
254.0 |
900 |
0.00 |
0.0 |
5.00 |
| Break-Down |
36.50 |
545.0 |
61.50 |
413.0 |
1,465 |
0.00 |
75.0 |
5.00 |
| 2/3 |
48.80 |
728.0 |
44.10 |
296.0 |
1,200 |
0.00 |
0.0 |
5.00 |
| 1/3 |
58.00 |
866.0 |
35.70 |
240.0 |
600 |
0.00 |
0.0 |
5.00 |
| No Load |
3.20 |
48.0 |
0.00 |
0.0 |
1,800 |
0.00 |
0.0 |
5.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
3.20 |
3.50 |
4.30 |
5.40 |
6.70 |
7.40 |
8.00 |
9.50 |
| Rated Output (KW) |
0.15 |
1.15 |
2.10 |
3.10 |
4.15 |
4.80 |
5.25 |
6.40 |
| Efficiency (%) |
0.0 |
81.8 |
89.1 |
90.0 |
89.8 |
89.6 |
88.8 |
87.4 |
| Power Factor (%) |
5.9 |
41.2 |
61.3 |
72.1 |
77.7 |
81.4 |
82.4 |
84.6 |
| Speed (RPM) |
1,800 |
1,790 |
1,780 |
1,770 |
1,760 |
1,750 |
1,745 |
1,735 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
85.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
3.70 |
7.40 |
11.10 |
14.90 |
17.30 |
18.80 |
22.70 |
