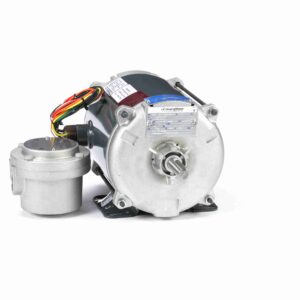

184TTGN6537 – Marathon 5 HP Explosion Proof Motor, 3 phase, 1800 RPM, 575 V, 184TC Frame, EPFC – C369A
184TTGN6537 Marathon Explosion Proof NEMA Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
722856022233 |
Weight: |
147 LB |
| Packaged Length: |
22.5 IN |
Packaged Width: |
16.81 IN |
| Packaged Height: |
14 IN |
Nameplate Specifications
| Output HP: |
5 Hp |
Output KW: |
3.7 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
5.0 A |
Speed: |
1755 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
90.2 % |
Power Factor: |
83.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
J |
| Frame: |
184TC |
Enclosure: |
Explosion Proof Fan cooled |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6207 |
Opp Drive End Bearing Size: |
6206 |
| UL: |
UL Listed; also, UL Certified for Canada |
CSA: |
N |
| CE: |
N |
IP Code: |
54 |
| Hazardous Location: |
EXP PROOF CL I GR D CL II GR F&G T3B |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
2.62 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
18.62 in |
| Frame Length: |
10.00 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.62 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
46.00 |
742.0 |
34.50 |
230.0 |
0 |
|
48.0 |
5.00 |
| Full Load |
6.20 |
100.0 |
15.00 |
100.0 |
1,755 |
|
|
5.00 |
| No Load |
2.80 |
45.0 |
0.00 |
0.0 |
1,800 |
|
|
5.00 |
| 2/3 |
39.00 |
629.0 |
36.00 |
240.0 |
1,200 |
|
|
5.00 |
| Break-Down |
25.00 |
403.0 |
45.00 |
300.0 |
1,600 |
|
74.0 |
5.00 |
| 1/3 |
44.00 |
710.0 |
29.00 |
193.0 |
600 |
|
|
5.00 |
| Pull-Up |
41.00 |
661.0 |
31.00 |
207.0 |
900 |
|
|
5.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
2.24 |
2.40 |
3.04 |
4.00 |
4.96 |
5.76 |
6.24 |
| Rated Output (KW) |
0.15 |
1.10 |
2.10 |
3.10 |
4.20 |
4.80 |
5.30 |
| Efficiency (%) |
0.0 |
85.5 |
90.2 |
90.2 |
90.2 |
89.5 |
88.5 |
| Power Factor (%) |
6.5 |
47.0 |
70.0 |
78.5 |
83.5 |
84.5 |
86.0 |
| Speed (RPM) |
1,800 |
1,790 |
1,780 |
1,765 |
1,755 |
1,745 |
1,740 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
50.0 |
70.0 |
90.0 |
| Torque (ft-lbs) |
0.00 |
3.70 |
7.40 |
11.50 |
15.00 |
17.50 |
19.00 |
