Description

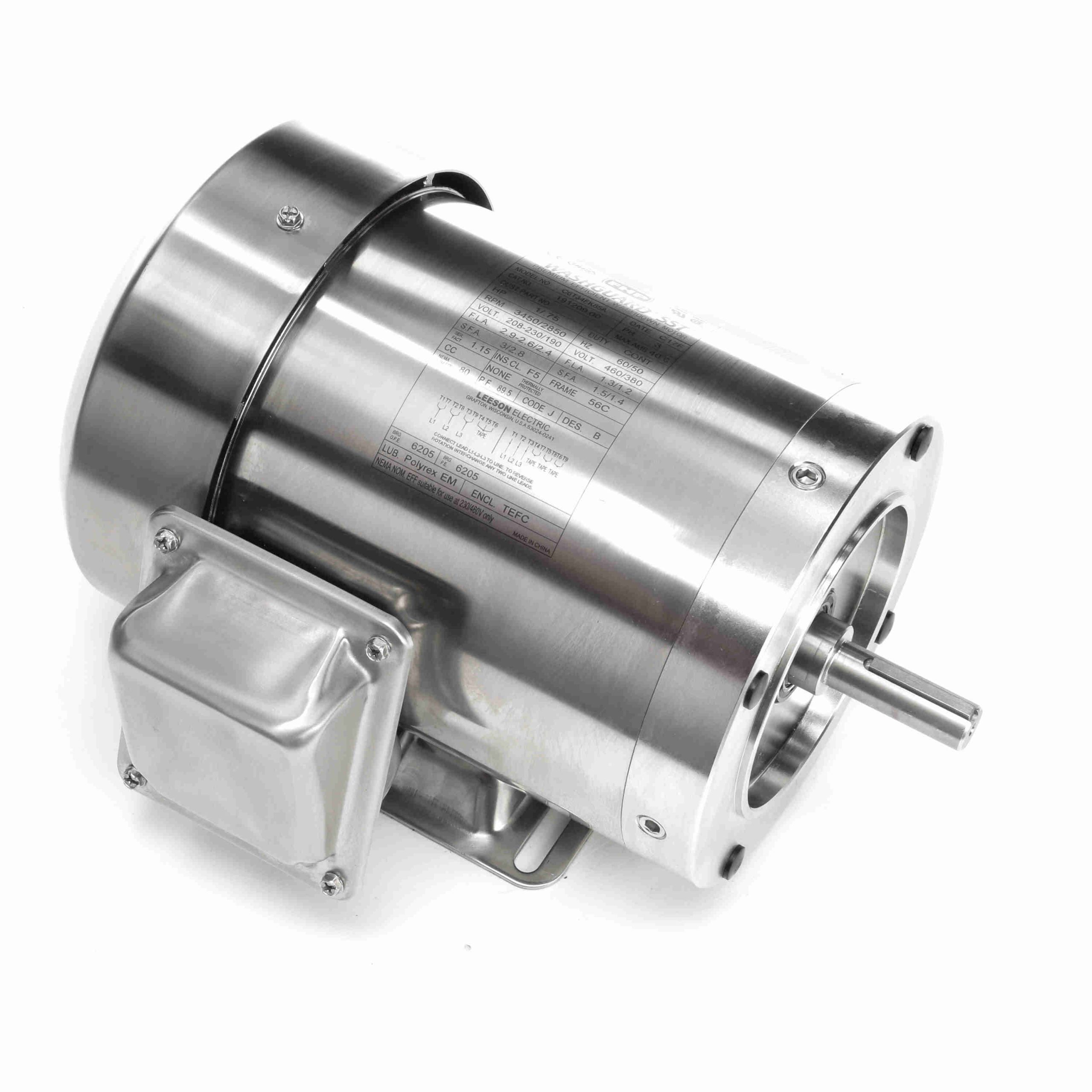

191209.00 – Leeson 1 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56HC Frame, TEFC – 191209.00
191209.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720308226 |
Weight: |
42 LB |
| Packaged Length: |
12.68 IN |
Packaged Width: |
11 IN |
| Packaged Height: |
9.65 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60/50 Hz |
Voltage: |
208-230/460 V |
| Current: |
2.9-2.6/1.3 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
80 % |
Power Factor: |
89.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
J |
| Frame: |
56HC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
3.73 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
13.77 in |
| Frame Length: |
6.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
9.80 |
754.0 |
62.00 |
255.0 |
0 |
0.00 |
0.0 |
1.00 |
| Break-Down |
0.00 |
0.0 |
76.30 |
314.0 |
0 |
0.00 |
0.0 |
1.00 |
| Pull-Up |
0.00 |
0.0 |
41.00 |
169.0 |
0 |
0.00 |
0.0 |
1.00 |
| Full Load |
1.30 |
100.0 |
24.30 |
100.0 |
3,456 |
0.00 |
0.0 |
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.50 |
0.58 |
0.85 |
1.05 |
1.30 |
1.60 |
2.00 |
| Rated Output (KW) |
0.07 |
0.30 |
0.56 |
0.71 |
0.91 |
1.19 |
1.47 |
| Efficiency (%) |
0.0 |
63.2 |
68.0 |
79.4 |
81.7 |
78.4 |
76.4 |
| Power Factor (%) |
18.1 |
64.9 |
82.7 |
84.5 |
88.1 |
93.3 |
91.9 |
| Speed (RPM) |
3,595 |
3,561 |
3,528 |
3,493 |
3,456 |
3,411 |
3,363 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
41.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
6.00 |
12.15 |
18.10 |
24.30 |
30.80 |
37.50 |
