Description

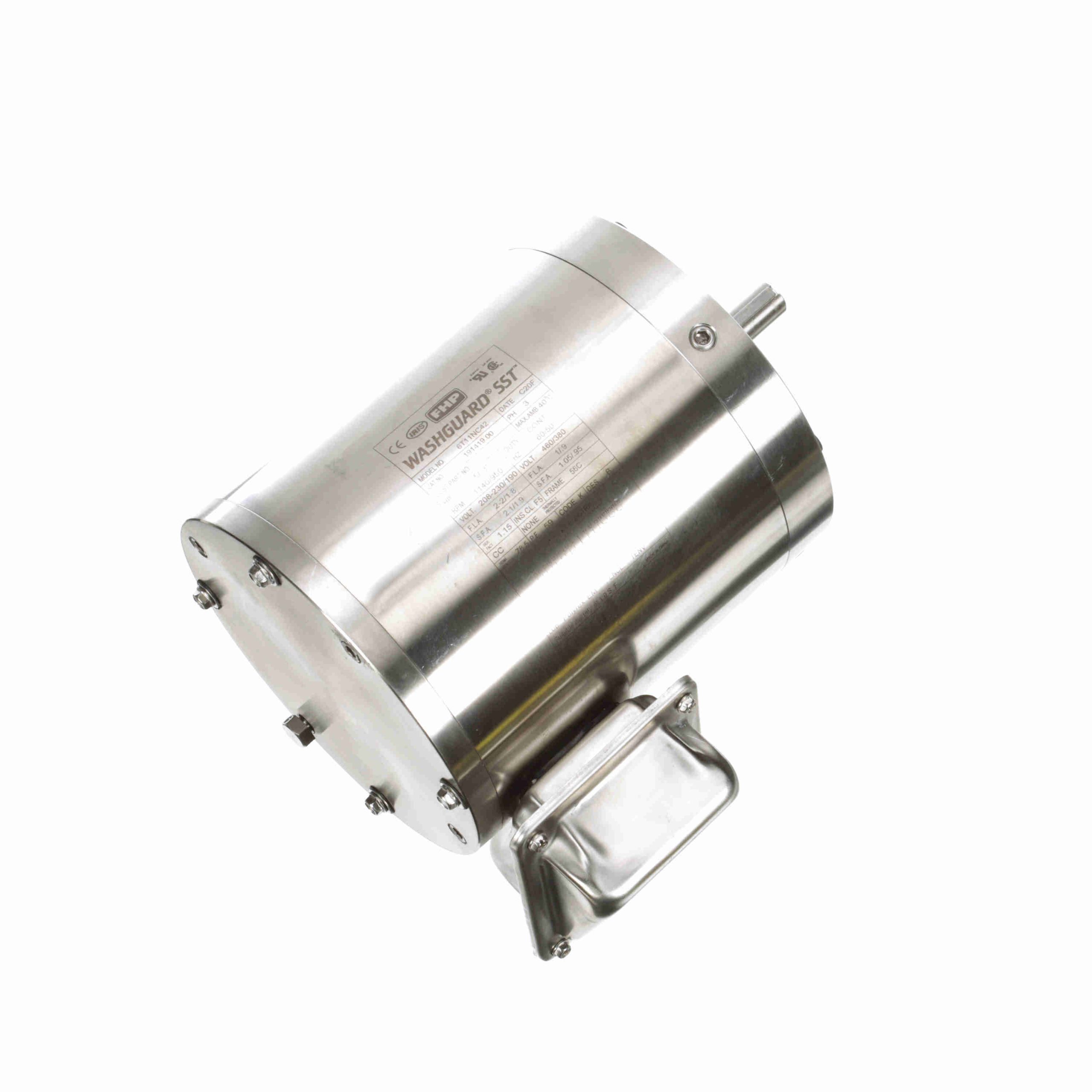

191419.00 – Leeson 0.50 HP Washdown Motor, 3 phase, 1200 RPM, 208-230/460 V, 56C Frame, TENV – 191419.00
191419.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720354797 |
Weight: |
29 LB |
| Packaged Length: |
11.22 IN |
Packaged Width: |
11 IN |
| Packaged Height: |
9.65 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60/50 Hz |
Voltage: |
208-230/460 V |
| Current: |
2.1-2.0/1.0 A |
Speed: |
1140 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
80 % |
Power Factor: |
59 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
56C |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
25.6 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
9.78 in |
| Frame Length: |
6.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
0.97 |
0.0 |
36.10 |
100.0 |
1,164 |
0.47 |
0.0 |
0.50 |
| Pull-Up |
0.00 |
0.0 |
88.80 |
246.0 |
100 |
0.00 |
0.0 |
0.50 |
| Locked-Rotor |
5.60 |
577.0 |
89.30 |
248.0 |
0 |
2.30 |
0.0 |
0.50 |
| Break-Down |
0.00 |
0.0 |
133.00 |
369.0 |
864 |
0.00 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
0.70 |
0.73 |
0.78 |
0.86 |
0.97 |
1.03 |
1.08 |
1.22 |
| Rated Output (KW) |
0.60 |
0.16 |
0.26 |
0.36 |
0.47 |
0.54 |
0.58 |
0.70 |
| Efficiency (%) |
0.0 |
59.9 |
72.4 |
77.7 |
79.2 |
80.5 |
80.5 |
80.2 |
| Power Factor (%) |
107.6 |
27.0 |
41.5 |
52.7 |
60.9 |
65.7 |
67.4 |
71.8 |
| Speed (RPM) |
1,198 |
1,190 |
1,182 |
1,174 |
1,164 |
1,158 |
1,153 |
1,142 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
76.0 |
86.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
8.90 |
17.80 |
26.90 |
36.10 |
42.20 |
45.60 |
55.20 |
