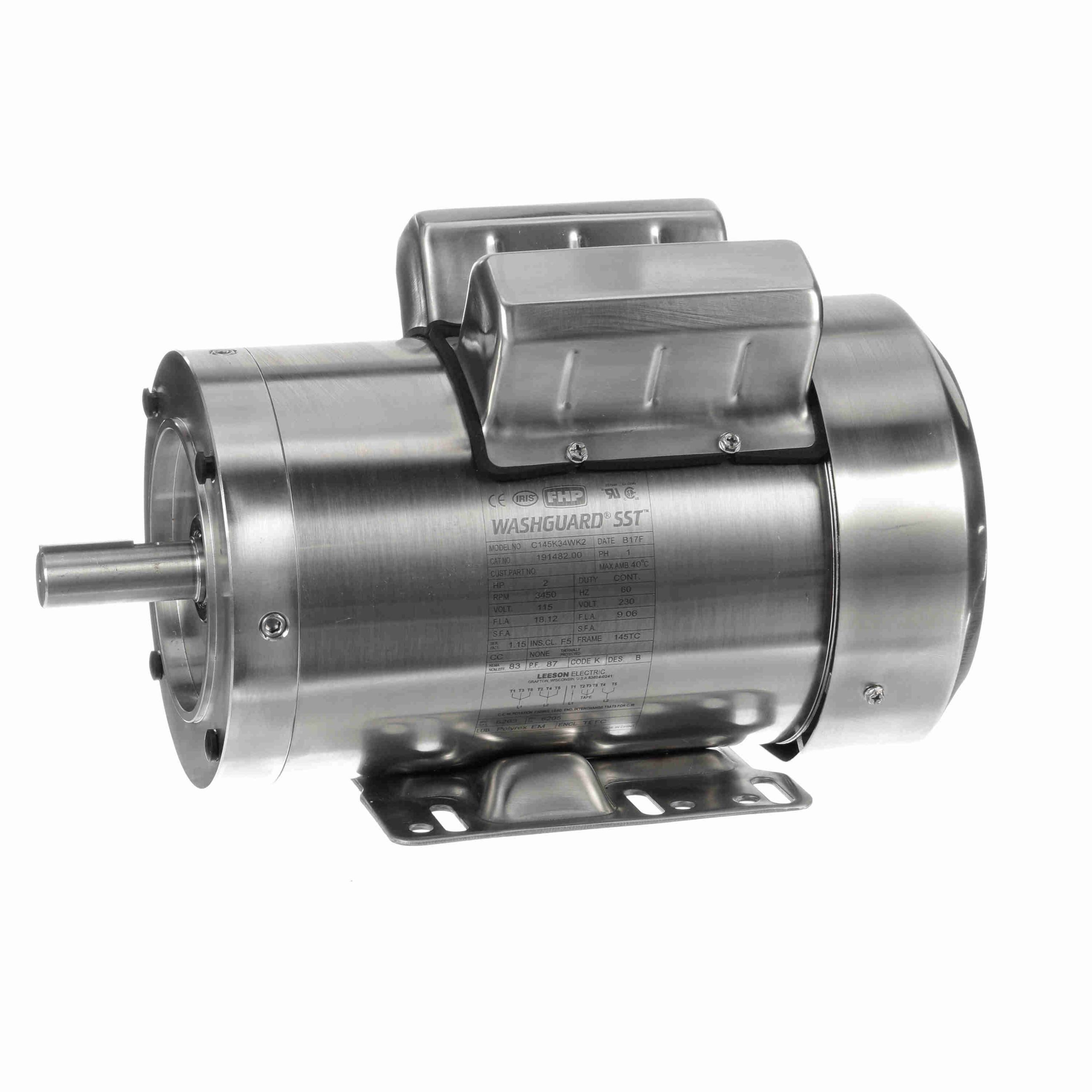

191482.00 – Leeson 2 HP Washdown Motor, 1 phase, 3600 RPM, 115/230 V, 145TC Frame, TEFC – 191482.00
191482.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720399514 |
Weight: |
41 LB |
| Packaged Length: |
15.35 IN |
Packaged Width: |
10 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
19.0/9.5 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
81.5 % |
Power Factor: |
86.3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
N |
KVA Code: |
J |
| Frame: |
145TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.906 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
14.00 in |
| Frame Length: |
7.99 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
0.0 |
7.70 |
257.0 |
0 |
0.00 |
0.0 |
2.00 |
| Full Load |
9.30 |
100.0 |
3.00 |
100.0 |
3,522 |
0.00 |
0.0 |
2.00 |
| Locked-Rotor |
69.00 |
742.0 |
7.50 |
250.0 |
0 |
0.00 |
0.0 |
2.00 |
| Pull-Up |
0.00 |
0.0 |
7.50 |
250.0 |
0 |
0.00 |
0.0 |
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
0.00 |
0.00 |
0.00 |
0.00 |
9.30 |
10.40 |
0.00 |
0.00 |
| Rated Output (KW) |
0.00 |
0.00 |
0.00 |
0.00 |
1.84 |
2.11 |
0.00 |
0.00 |
| Efficiency (%) |
0.0 |
0.0 |
0.0 |
0.0 |
81.6 |
81.4 |
0.0 |
0.0 |
| Power Factor (%) |
0.0 |
0.0 |
0.0 |
0.0 |
86.0 |
88.0 |
0.0 |
0.0 |
| Speed (RPM) |
0 |
0 |
0 |
0 |
3,522 |
3,500 |
0 |
0 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
95.0 |
115.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.00 |
0.00 |
0.00 |
3.00 |
3.45 |
0.00 |
0.00 |
