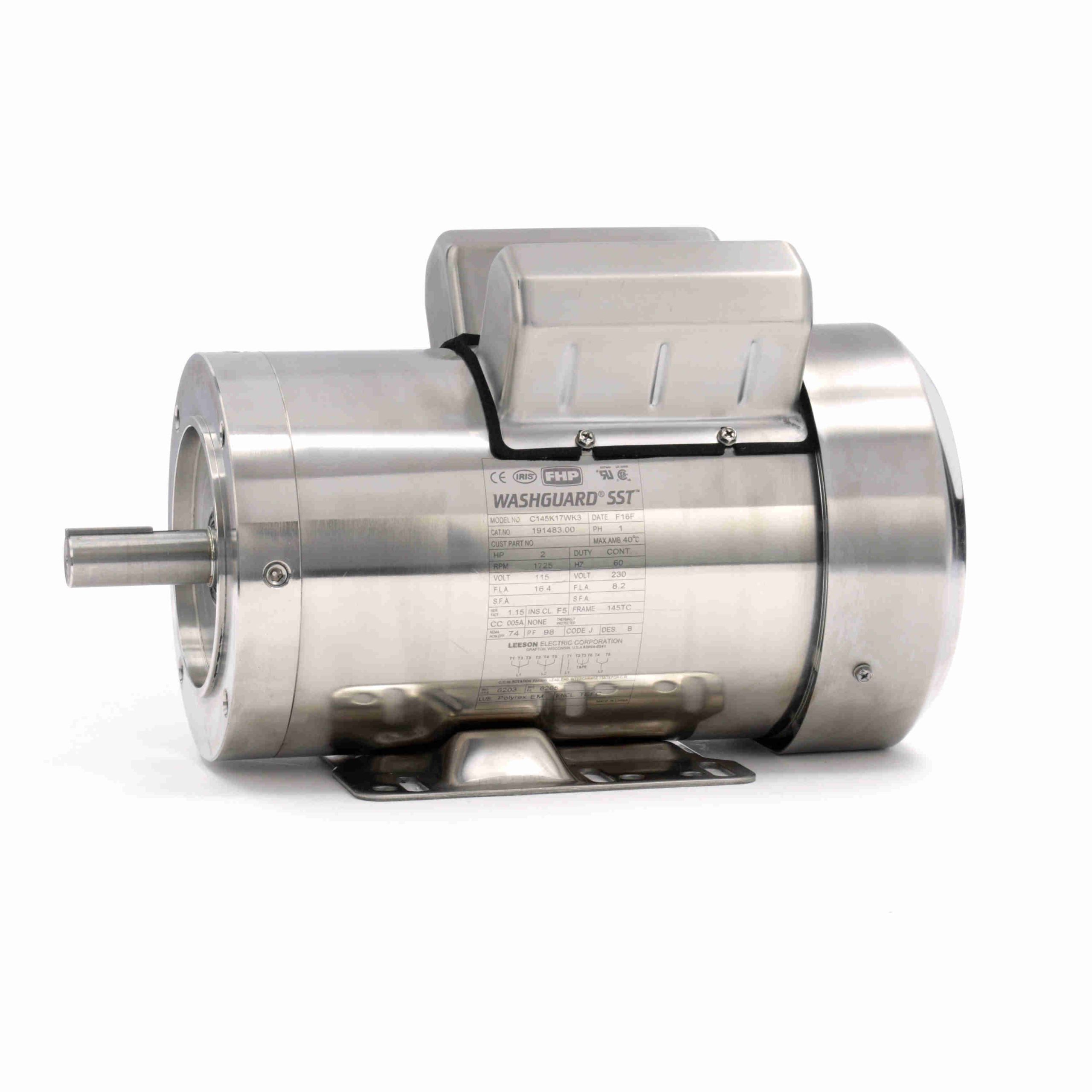

191483.00 – Leeson 2 HP Washdown Motor, 1 phase, 1800 RPM, 115/230 V, 145TC Frame, TEFC – 191483.00
191483.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720399521 |
Weight: |
52 LB |
| Packaged Length: |
0 IN |
Packaged Width: |
0 IN |
| Packaged Height: |
0 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
16.4/8.2 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
74 % |
Power Factor: |
98 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
N |
KVA Code: |
J |
| Frame: |
145TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.87 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
14.00 in |
| Frame Length: |
8.39 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
57.50 |
674.0 |
14.00 |
233.0 |
0 |
10.19 |
0.0 |
2.00 |
| Pull-Up |
0.00 |
0.0 |
13.00 |
217.0 |
156 |
0.00 |
0.0 |
2.00 |
| Break-Down |
30.10 |
353.0 |
14.10 |
235.0 |
1,500 |
7.41 |
0.0 |
2.00 |
| No Load |
4.32 |
51.0 |
0.00 |
0.0 |
1,797 |
0.19 |
0.0 |
2.00 |
| Full Load |
8.53 |
100.0 |
6.00 |
100.0 |
1,741 |
1.81 |
0.0 |
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
4.32 |
4.72 |
5.91 |
7.42 |
8.53 |
11.27 |
13.58 |
| Rated Output (KW) |
0.19 |
0.55 |
0.95 |
1.36 |
1.81 |
2.28 |
2.78 |
| Efficiency (%) |
0.0 |
69.7 |
79.3 |
82.6 |
82.2 |
81.1 |
78.8 |
| Power Factor (%) |
19.0 |
50.3 |
70.2 |
79.9 |
92.0 |
87.8 |
88.9 |
| Speed (RPM) |
1,797 |
1,787 |
1,775 |
1,763 |
1,741 |
1,732 |
1,713 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
94.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.50 |
3.00 |
4.50 |
6.00 |
7.50 |
9.00 |
