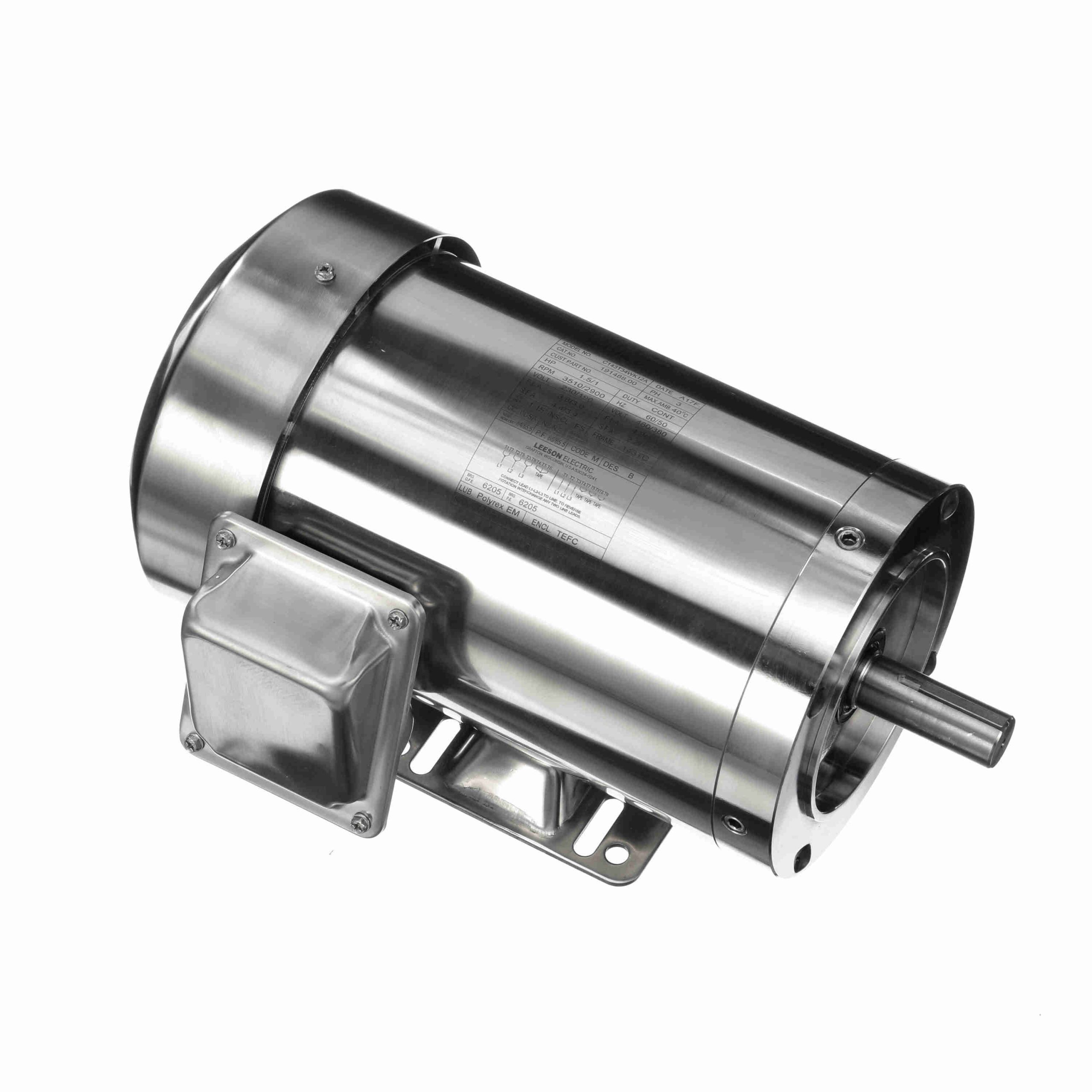

191488.00 – Leeson 1.50 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 143TC Frame, TEFC – 191488.00
191488.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720245538 |
Weight: |
45 LB |
| Packaged Length: |
0 IN |
Packaged Width: |
0 IN |
| Packaged Height: |
0 IN |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60/50 Hz |
Voltage: |
208-230/460 V |
| Current: |
4.2-3.8/1.9 A |
Speed: |
3510 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
84 % |
Power Factor: |
88 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
M |
| Frame: |
143TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
13.62 in |
| Frame Length: |
7.99 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
21.10 |
1,111.0 |
8.83 |
394.0 |
0 |
9.90 |
58.7 |
1.50 |
| Full Load |
1.90 |
100.0 |
2.24 |
100.0 |
3,515 |
1.30 |
85.9 |
1.50 |
| Break-Down |
11.60 |
611.0 |
9.81 |
438.0 |
2,857 |
7.80 |
84.4 |
1.50 |
| Pull-Up |
19.60 |
1,032.0 |
4.91 |
219.0 |
657 |
10.30 |
65.9 |
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
0.80 |
0.90 |
1.20 |
1.50 |
1.90 |
2.13 |
2.30 |
2.80 |
| Rated Output (KW) |
0.08 |
0.37 |
0.67 |
0.98 |
1.30 |
1.50 |
1.64 |
1.99 |
| Efficiency (%) |
0.0 |
75.8 |
84.1 |
85.8 |
86.0 |
85.9 |
85.6 |
84.2 |
| Power Factor (%) |
12.9 |
51.5 |
69.8 |
81.8 |
85.9 |
88.3 |
89.4 |
89.4 |
| Speed (RPM) |
0 |
3,579 |
3,558 |
3,537 |
3,515 |
3,500 |
3,489 |
3,464 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
47.7 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
0.55 |
1.11 |
1.67 |
2.24 |
2.59 |
2.83 |
3.41 |
