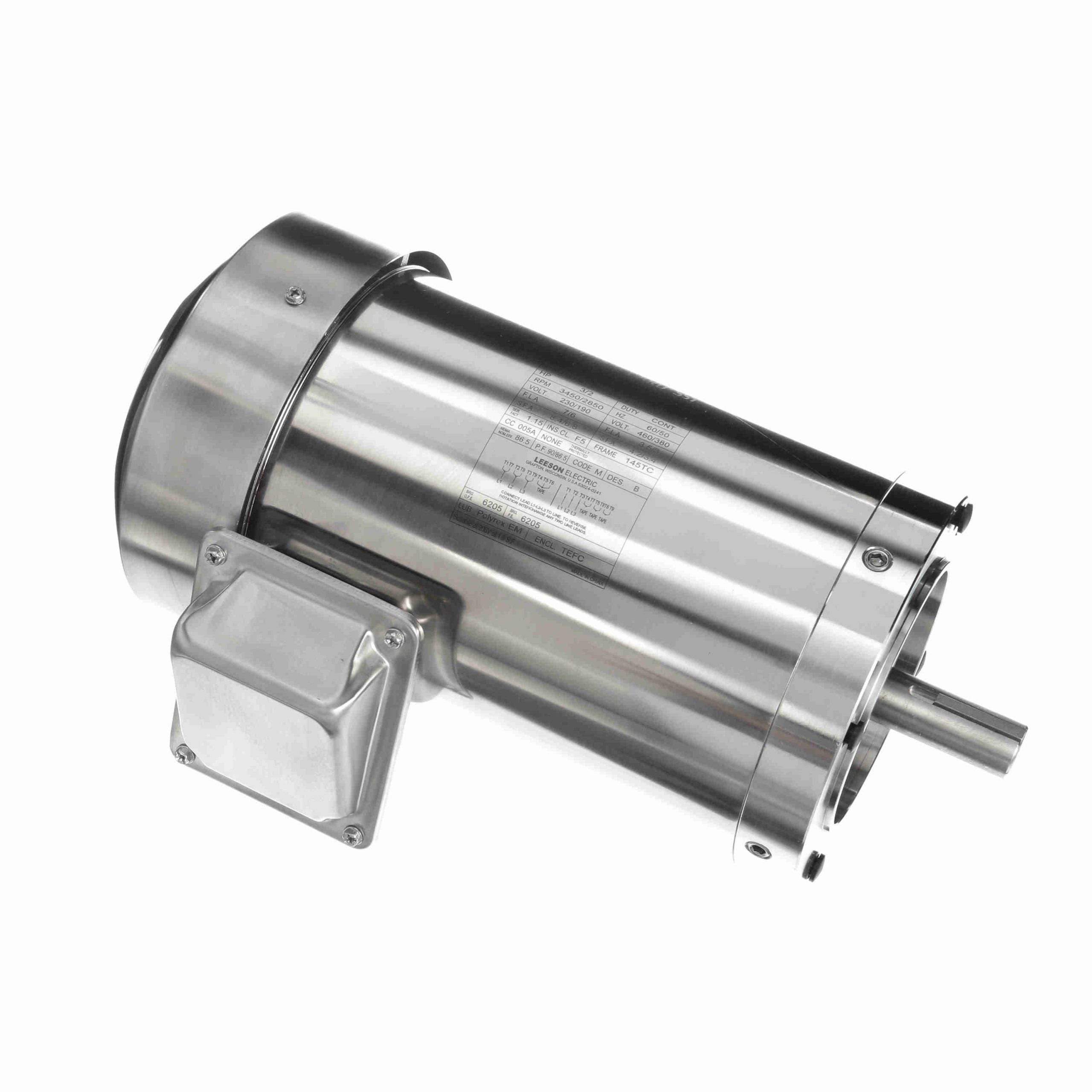

191542.00 – Leeson 3 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 145TC Frame, TEFC – 191542.00
191542.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052846 |
Weight: |
45 LB |
| Packaged Length: |
15.55 IN |
Packaged Width: |
11 IN |
| Packaged Height: |
9.65 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60/50 Hz |
Voltage: |
208-230/460 V |
| Current: |
8.0-7.2/3.6 A |
Speed: |
3470 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
86.5 % |
Power Factor: |
90 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
M |
| Frame: |
145TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
13.20 in |
| Frame Length: |
8.39 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
41.60 |
1,156.0 |
22.69 |
501.0 |
0 |
20.60 |
62.4 |
3.00 |
| Pull-Up |
38.10 |
1,058.0 |
19.98 |
441.0 |
643 |
20.60 |
67.9 |
3.00 |
| Break-Down |
27.30 |
758.0 |
21.96 |
485.0 |
2,386 |
18.00 |
82.5 |
3.00 |
| Full Load |
3.60 |
100.0 |
4.53 |
100.0 |
3,479 |
2.55 |
88.9 |
3.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
1.20 |
1.50 |
2.10 |
2.80 |
3.60 |
4.08 |
4.40 |
5.40 |
| Rated Output (KW) |
0.10 |
0.67 |
1.27 |
1.90 |
2.55 |
2.95 |
3.24 |
3.97 |
| Efficiency (%) |
0.0 |
83.4 |
87.8 |
88.5 |
87.7 |
87.2 |
86.2 |
83.4 |
| Power Factor (%) |
10.4 |
56.3 |
76.0 |
85.0 |
88.9 |
90.8 |
92.4 |
92.3 |
| Speed (RPM) |
0 |
3,571 |
3,542 |
3,511 |
3,479 |
3,463 |
3,442 |
3,399 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
81.6 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.11 |
2.22 |
3.36 |
4.53 |
5.23 |
5.71 |
6.86 |
