Description

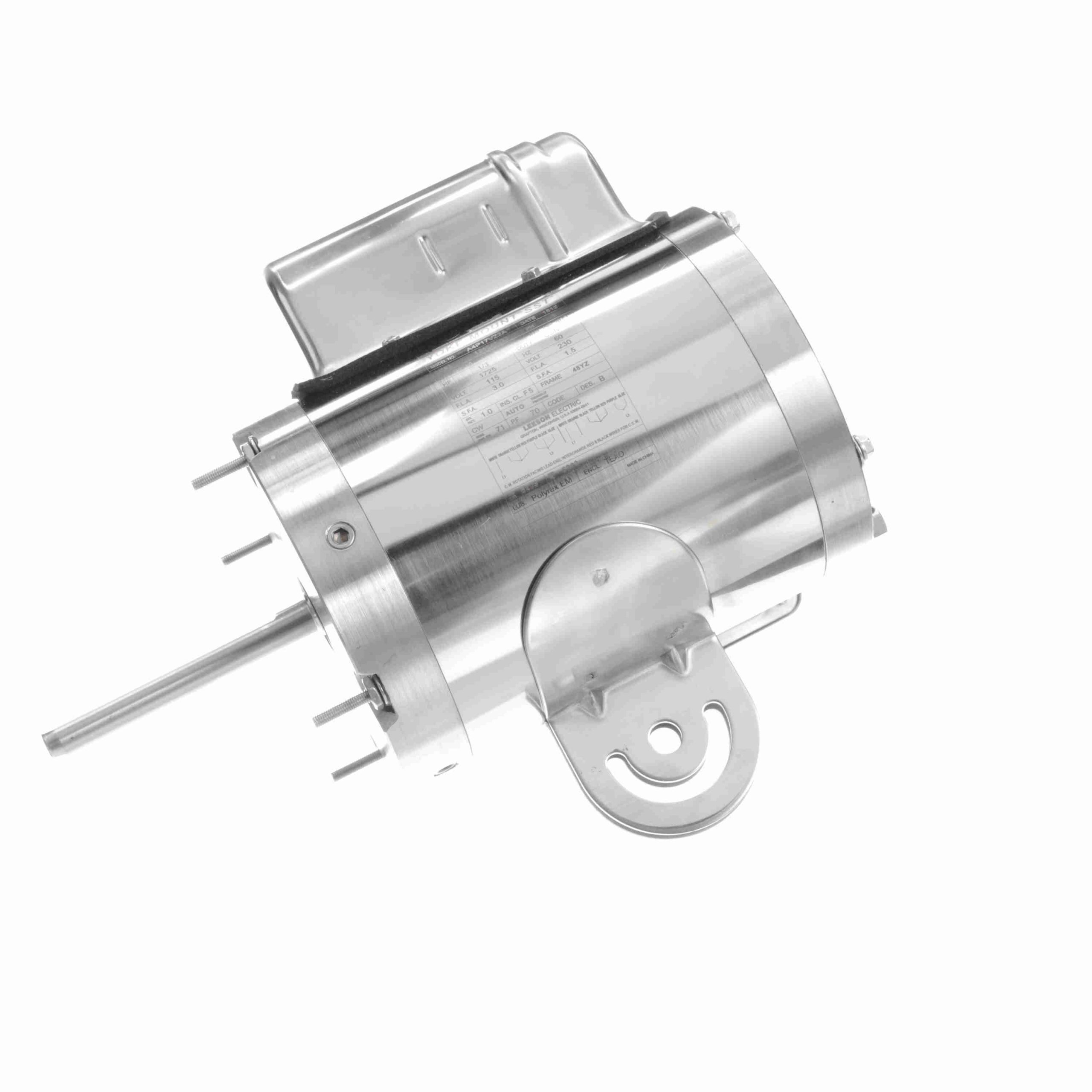

191545.00 – Leeson 0.33 HP Washdown Motor, 1 phase, 1800 RPM, 115/230 V, 48YZ Frame, TEAO – 191545.00
191545.00 Leeson Washdown Pedestal Fan Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052549 |
Weight: |
21 LB |
| Packaged Length: |
14.58 IN |
Packaged Width: |
13.75 IN |
| Packaged Height: |
13.22 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
3.0/1.5 A |
Speed: |
1755 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
74 % |
Power Factor: |
98 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
No Design Code |
KVA Code: |
D |
| Frame: |
48YZ |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
14.23 Ohms |
Mounting: |
Round – Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
11.58 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
4.05 in |
| Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
3.70 |
247.0 |
31.30 |
198.0 |
0 |
0.78 |
0.0 |
0.33 |
| Pull-Up |
6.00 |
400.0 |
7.30 |
46.0 |
0 |
0.98 |
0.0 |
0.33 |
| Full Load |
1.50 |
100.0 |
15.80 |
100.0 |
1,755 |
0.33 |
0.0 |
0.33 |
| Locked-Rotor |
5.90 |
393.0 |
6.20 |
39.0 |
0 |
0.98 |
0.0 |
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.73 |
0.76 |
0.94 |
1.20 |
1.50 |
1.80 |
2.20 |
| Rated Output (KW) |
0.15 |
0.16 |
0.21 |
0.27 |
0.33 |
0.41 |
0.49 |
| Efficiency (%) |
41.6 |
44.5 |
60.9 |
70.0 |
74.6 |
76.4 |
75.5 |
| Power Factor (%) |
88.7 |
89.8 |
94.8 |
96.7 |
95.7 |
98.1 |
97.6 |
| Speed (RPM) |
1,791 |
1,790 |
1,781 |
1,769 |
1,755 |
1,738 |
1,715 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
3.90 |
4.40 |
7.90 |
11.90 |
15.80 |
20.10 |
24.50 |
