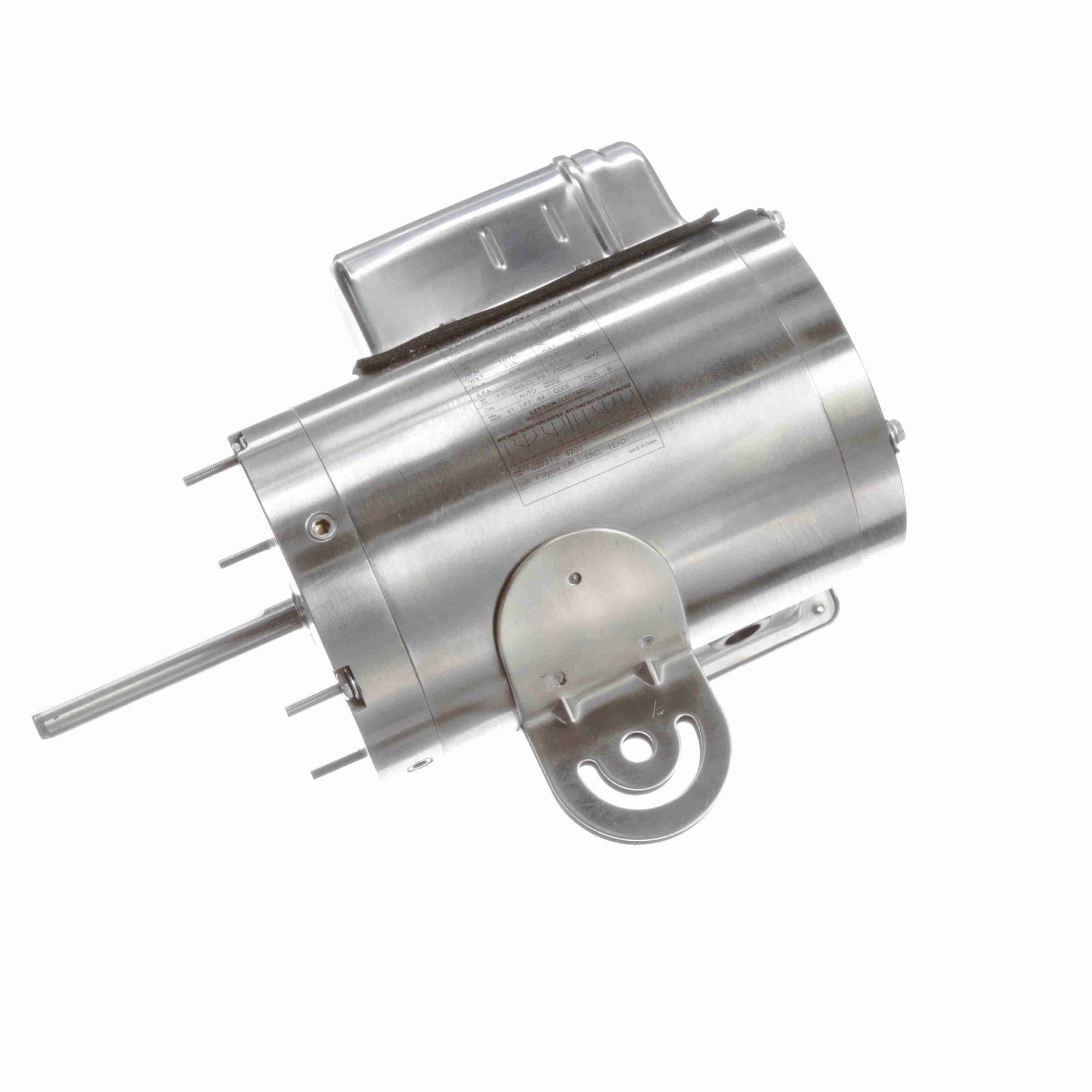

Original price was: $1,275.00.$908.82Current price is: $908.82.
| UPC: | 691720052556 | Weight: | 22 LB |
| Packaged Length: | 14.58 IN | Packaged Width: | 13.75 IN |
| Packaged Height: | 13.22 IN |
| Output HP: | 0.33 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 4.0/2.0 A | Speed: | 1115 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 57.5 % | Power Factor: | 96 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | No Design Code | KVA Code: | A |
| Frame: | 48YZ | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 55 |
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Selective Clockwise |
| Resistance Main: | 14.16 Ohms | Mounting: | Round – Extended Studs |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Stainless Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 11.58 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 4.05 in |
| Assembly/Box Mounting: | F1 Only |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 4.30 | 215.0 | 11.00 | 44.0 | 131 | 0.67 | 0.7 | 0.33 |
| Locked-Rotor | 4.30 | 215.0 | 9.10 | 36.0 | 4 | 0.68 | 0.7 | 0.33 |
| Break-Down | 3.00 | 150.0 | 32.90 | 130.0 | 995 | 0.61 | 0.9 | 0.33 |
| Full Load | 2.00 | 100.0 | 25.24 | 100.0 | 1,115 | 0.44 | 1.0 | 0.33 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 0.89 | 1.10 | 1.30 | 1.60 | 2.00 | 2.30 | 3.10 | 0.00 |
| Rated Output (KW) | 0.00 | 0.61 | 0.49 | 0.44 | 0.36 | 0.30 | 0.24 | 0.20 |
| Efficiency (%) | 0.0 | 49.1 | 57.7 | 57.1 | 51.8 | 41.9 | 25.5 | 7.8 |
| Power Factor (%) | 0.0 | 240.3 | 164.5 | 118.5 | 78.7 | 56.7 | 33.9 | 0.0 |
| Speed (RPM) | 0 | 981 | 1,084 | 1,112 | 1,141 | 1,161 | 1,177 | 1,187 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 34.30 | 29.50 | 25.20 | 18.50 | 12.20 | 5.90 | 1.50 |
