Description

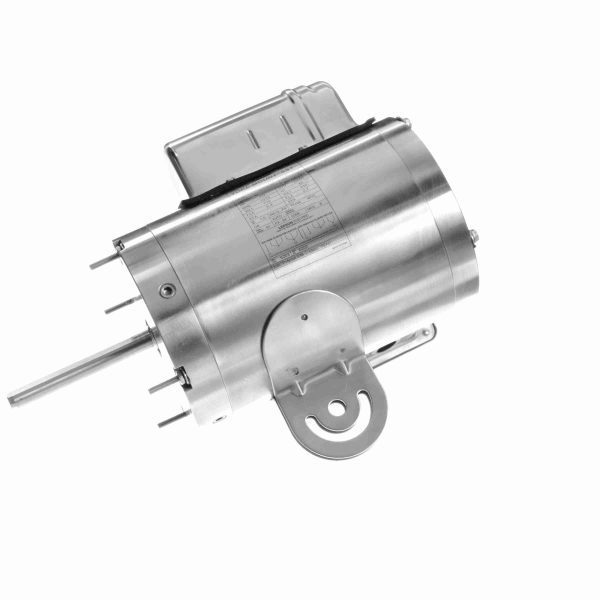

191548.00 – Leeson 0.50 HP Washdown Motor, 1 phase, 1200 RPM, 115/230 V, 48YZ Frame, TEAO – 191548.00
191548.00 Leeson Washdown Pedestal Fan Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052570 |
Weight: |
28 LB |
| Packaged Length: |
15.56 IN |
Packaged Width: |
13.75 IN |
| Packaged Height: |
13.22 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
5.4/2.7 A |
Speed: |
1145 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
64 % |
Power Factor: |
94 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
No Design Code |
KVA Code: |
E |
| Frame: |
48YZ |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
5.602 Ohms |
Mounting: |
Round – Extended Studs |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
11.58 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
4.05 in |
| Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
6.40 |
237.0 |
71.50 |
193.0 |
989 |
1.26 |
0.0 |
0.50 |
| Locked-Rotor |
9.90 |
367.0 |
12.80 |
35.0 |
0 |
1.54 |
0.0 |
0.50 |
| Pull-Up |
7.40 |
274.0 |
8.90 |
24.0 |
190 |
1.14 |
0.0 |
0.50 |
| Full Load |
2.70 |
100.0 |
37.00 |
100.0 |
1,146 |
0.59 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
1.20 |
1.50 |
1.80 |
2.20 |
2.70 |
3.00 |
3.30 |
4.00 |
| Rated Output (KW) |
0.20 |
0.29 |
0.38 |
0.48 |
0.59 |
0.65 |
0.70 |
0.85 |
| Efficiency (%) |
0.0 |
32.0 |
49.2 |
58.5 |
64.2 |
65.1 |
66.4 |
66.1 |
| Power Factor (%) |
72.8 |
83.8 |
92.5 |
94.7 |
94.4 |
94.3 |
92.5 |
92.2 |
| Speed (RPM) |
1,195 |
1,183 |
1,173 |
1,161 |
1,146 |
1,137 |
1,129 |
1,104 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
8.80 |
18.10 |
27.20 |
37.00 |
42.00 |
46.50 |
57.20 |
