194000.00 – Leeson 3 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 182TC Frame, TEFC – 194000.00

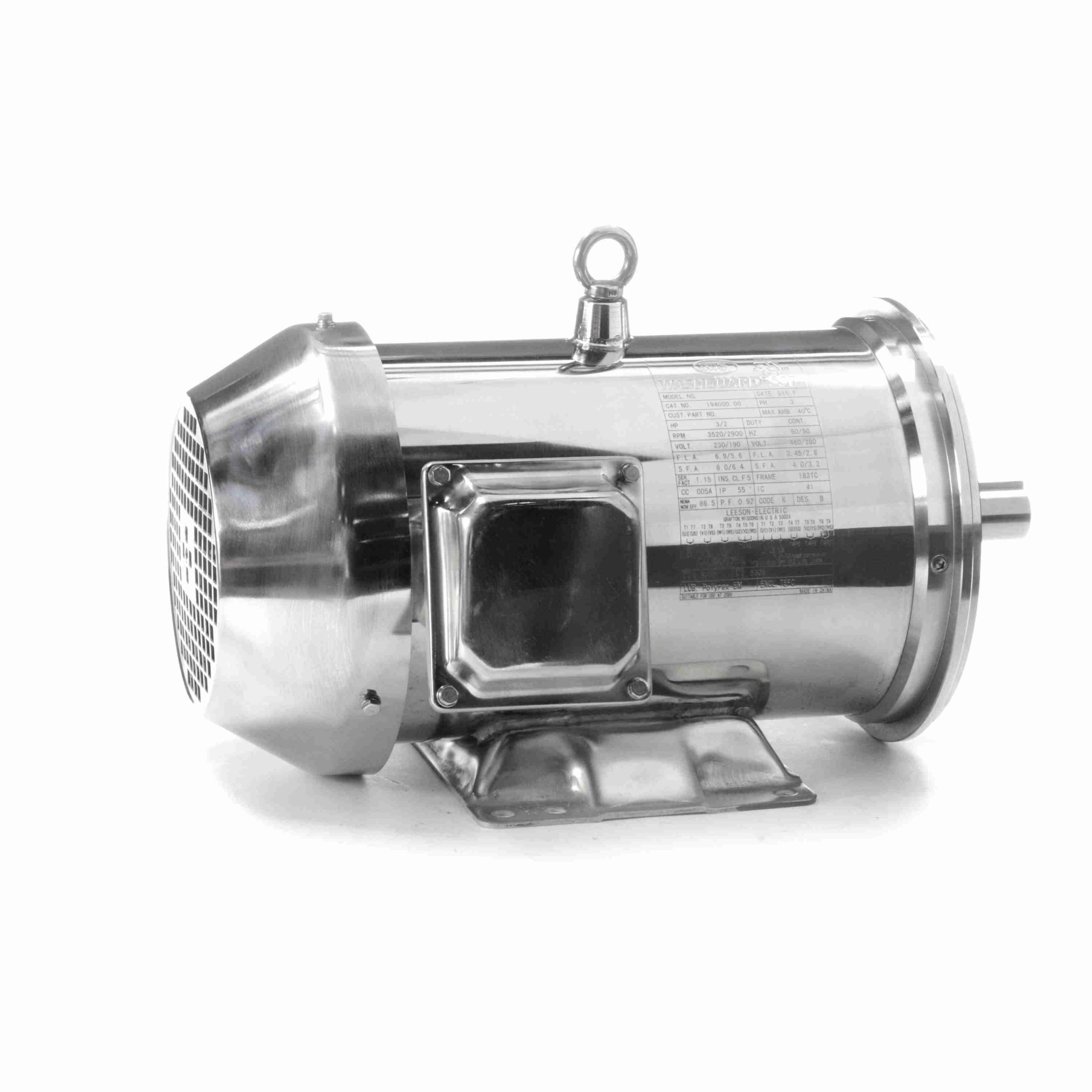

194000.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052686 |
Weight: |
80 LB |
| Packaged Length: |
0 IN |
Packaged Width: |
0 IN |
| Packaged Height: |
0 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
6.9/3.5 A |
Speed: |
3520 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
86.5 % |
Power Factor: |
92 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
182TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6306 |
Opp Drive End Bearing Size: |
6306 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
4.069 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
16.97 in |
| Frame Length: |
10.24 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
31.00 |
886.0 |
10.30 |
229.0 |
0 |
0.00 |
0.0 |
3.00 |
| Pull-Up |
0.00 |
0.0 |
9.20 |
204.0 |
0 |
0.00 |
0.0 |
3.00 |
| Break-Down |
0.00 |
0.0 |
16.20 |
360.0 |
0 |
0.00 |
0.0 |
3.00 |
| Full Load |
3.50 |
100.0 |
4.50 |
100.0 |
3,525 |
0.00 |
0.0 |
3.00 |
Load Characteristics
| % of Rated Load |
100 % |
| Current (Amps) |
3.45 |
| Rated Output (KW) |
2.80 |
| Efficiency (%) |
|
| Power Factor (%) |
|
| Speed (RPM) |
3,520 |
| Temp. Rise @ FL |
|
| Torque (ft-lbs) |
4.50 |
Leeson Motors
Regal Beloit
