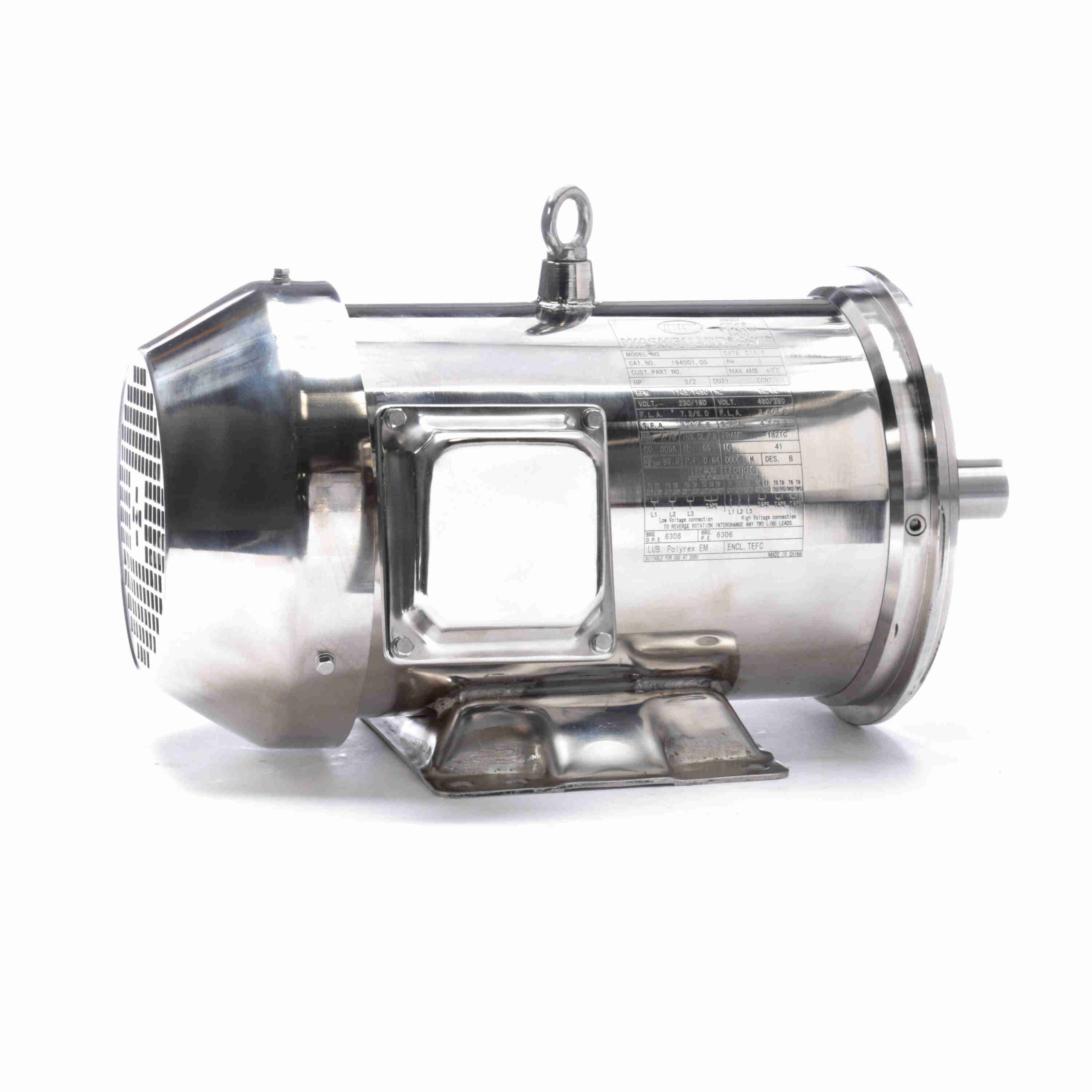

194001.00 – Leeson 3 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 182TC Frame, TEFC – 194001.00
194001.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052693 |
Weight: |
117 LB |
| Packaged Length: |
0 IN |
Packaged Width: |
0 IN |
| Packaged Height: |
0 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
7.2/3.6 A |
Speed: |
1745 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
89.5 % |
Power Factor: |
84 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
182TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6306 |
Opp Drive End Bearing Size: |
6306 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
3.28 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
16.97 in |
| Frame Length: |
10.24 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
0.00 |
0.0 |
34.90 |
388.0 |
0 |
0.00 |
0.0 |
3.00 |
| Full Load |
3.70 |
100.0 |
9.00 |
100.0 |
1,765 |
0.00 |
0.0 |
3.00 |
| Locked-Rotor |
31.10 |
841.0 |
20.00 |
222.0 |
0 |
0.00 |
0.0 |
3.00 |
| Pull-Up |
0.00 |
0.0 |
18.40 |
204.0 |
0 |
0.00 |
0.0 |
3.00 |
