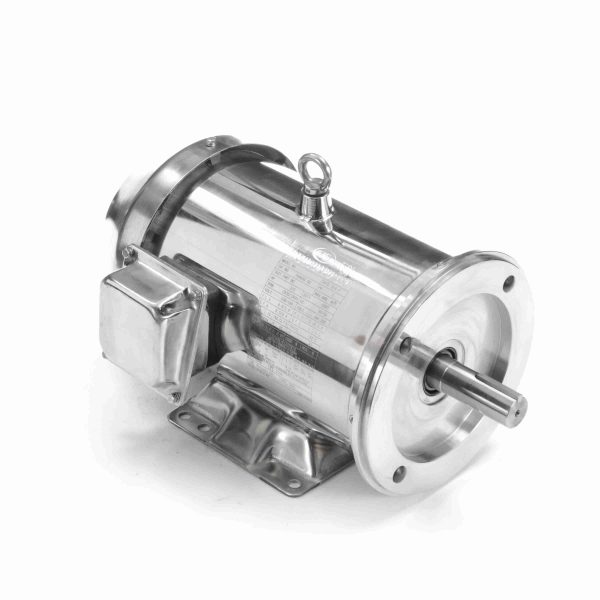

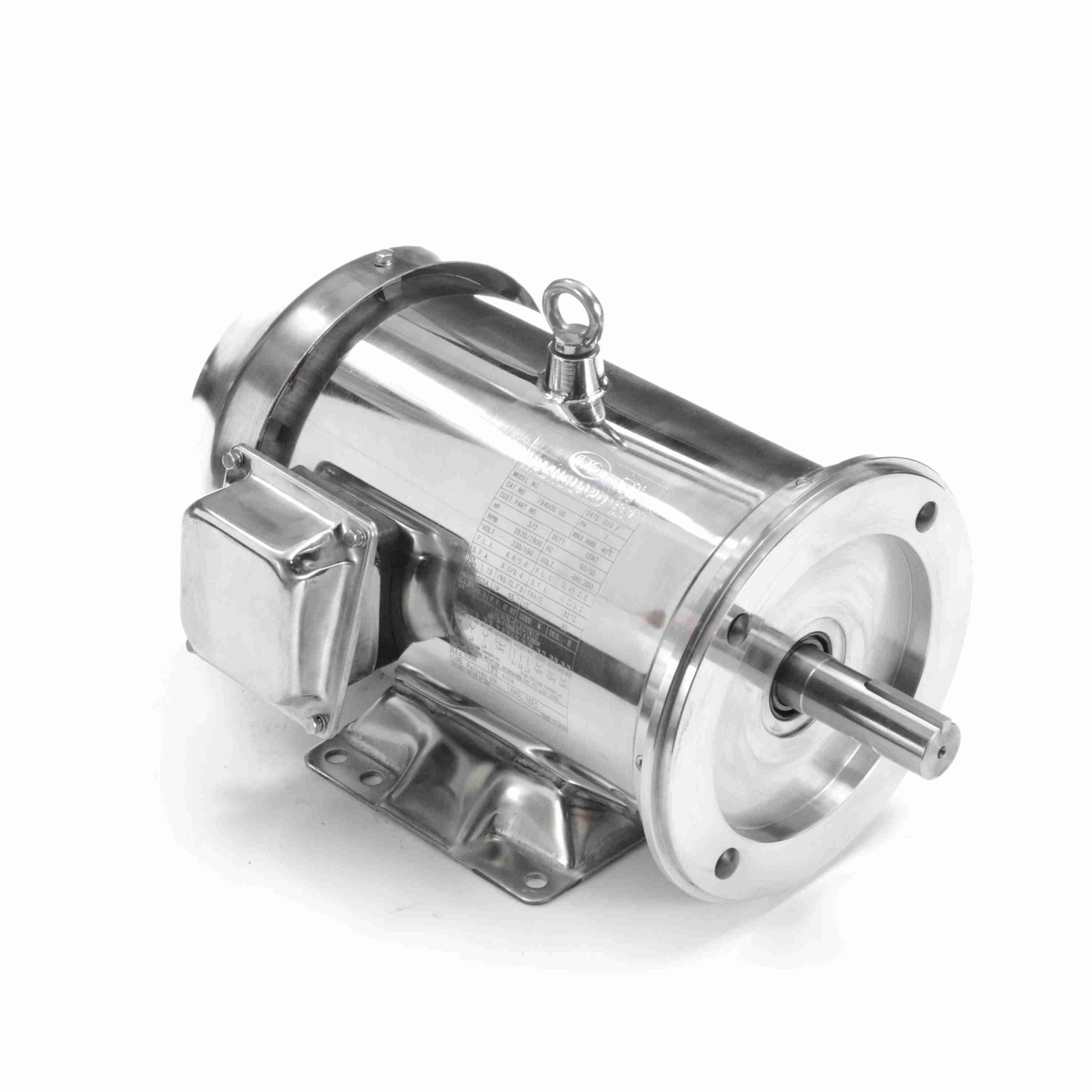

194004.00 – Leeson 7.50 HP Washdown Motor, 3 phase, 3600 RPM, 230/460 V, 213TC Frame, TEFC – 194004.00
194004.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052723 |
Weight: |
156 LB |
| Packaged Length: |
0 IN |
Packaged Width: |
0 IN |
| Packaged Height: |
0 IN |
Nameplate Specifications
| Output HP: |
7.50 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
17.4/8.7 A |
Speed: |
3520 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
89.5 % |
Power Factor: |
89 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
213TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6306 |
Opp Drive End Bearing Size: |
6306 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
1.184 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
21.57 in |
| Frame Length: |
13.39 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
65.70 |
755.0 |
19.80 |
180.0 |
0 |
0.00 |
0.0 |
7.50 |
| Break-Down |
0.00 |
0.0 |
35.00 |
318.0 |
0 |
0.00 |
0.0 |
7.50 |
| Full Load |
8.70 |
100.0 |
11.00 |
100.0 |
3,544 |
0.00 |
0.0 |
7.50 |
| Pull-Up |
0.00 |
0.0 |
17.70 |
161.0 |
0 |
0.00 |
0.0 |
7.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
2.80 |
3.60 |
5.00 |
6.70 |
8.70 |
10.80 |
13.10 |
| Rated Output (KW) |
0.25 |
1.67 |
3.14 |
4.46 |
6.19 |
7.81 |
9.48 |
| Efficiency (%) |
0.0 |
82.0 |
88.8 |
93.7 |
90.5 |
89.8 |
88.6 |
| Power Factor (%) |
11.3 |
58.4 |
78.7 |
83.6 |
89.4 |
90.7 |
90.8 |
| Speed (RPM) |
3,595 |
3,581 |
3,563 |
3,544 |
3,524 |
3,501 |
3,475 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
61.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.70 |
5.50 |
8.30 |
11.20 |
14.10 |
17.00 |
