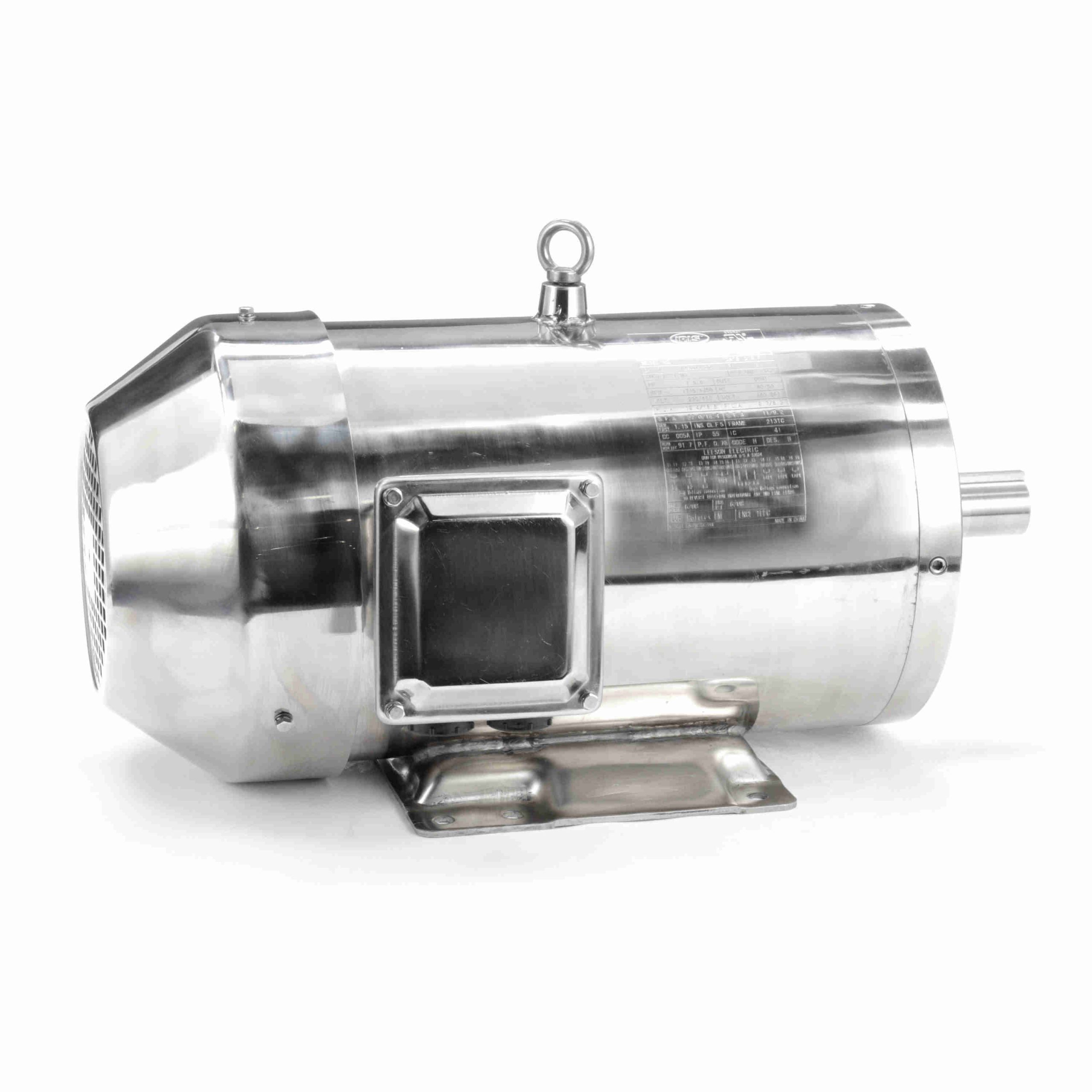

194005.00 – Leeson 7.50 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 213TC Frame, TEFC – 194005.00
194005.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052730 |
Weight: |
185 LB |
| Packaged Length: |
26.4 IN |
Packaged Width: |
16.9 IN |
| Packaged Height: |
18.9 IN |
Nameplate Specifications
| Output HP: |
7.50 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
19.4/9.7 A |
Speed: |
1745 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91.7 % |
Power Factor: |
78 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
213TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6306 |
Opp Drive End Bearing Size: |
6306 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.9763 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
21.57 in |
| Frame Length: |
13.39 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
65.40 |
667.0 |
48.50 |
218.0 |
0 |
0.00 |
0.0 |
7.50 |
| Full Load |
9.80 |
100.0 |
22.20 |
100.0 |
0 |
0.00 |
0.0 |
7.50 |
| Break-Down |
0.00 |
0.0 |
69.50 |
313.0 |
0 |
0.00 |
0.0 |
7.50 |
| Pull-Up |
0.00 |
0.0 |
41.40 |
186.0 |
0 |
0.00 |
0.0 |
7.50 |
