Description

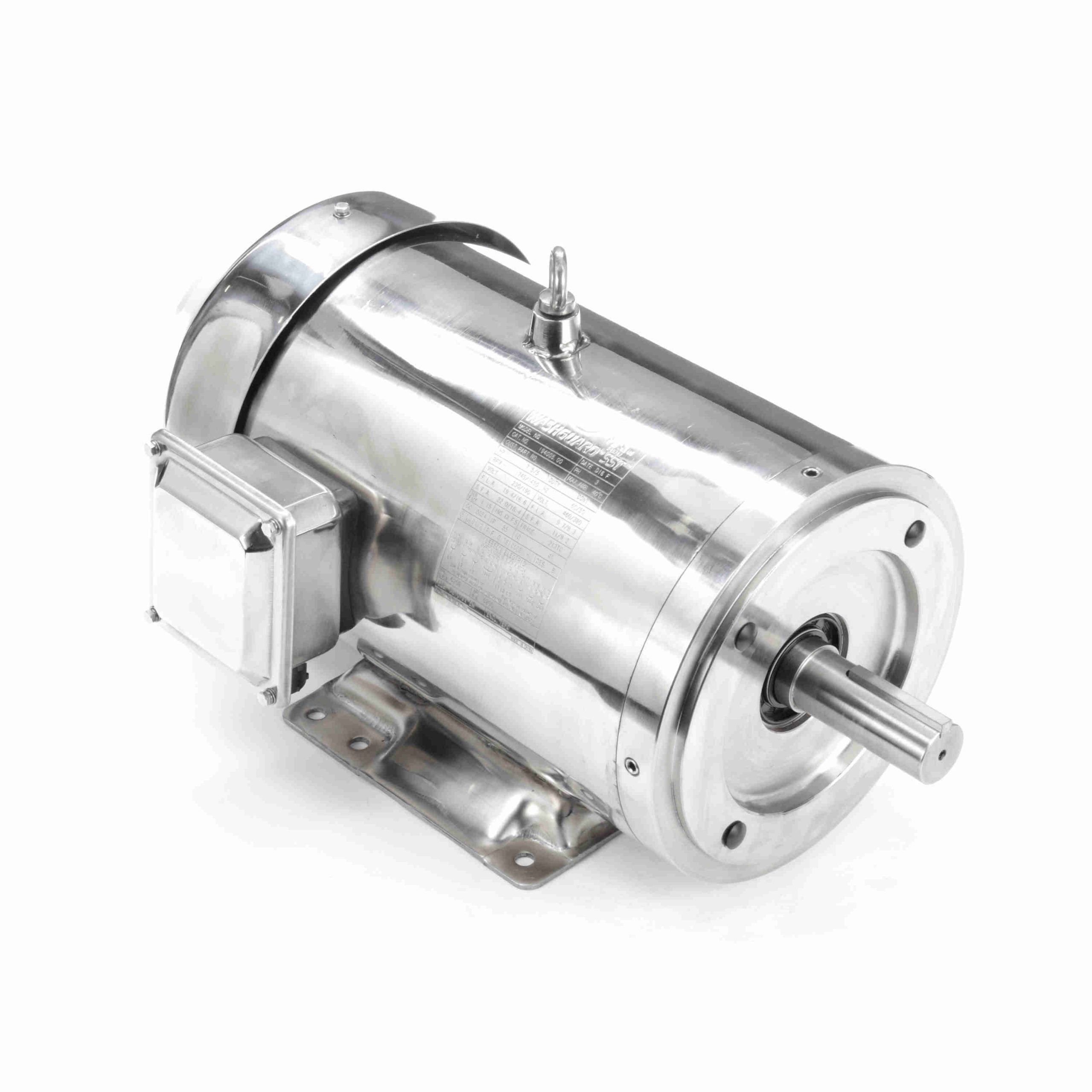

194007.00 – Leeson 10 HP Washdown Motor, 3 phase, 1800 RPM, 230/460 V, 215TC Frame, TEFC – 194007.00
194007.00 Leeson Paint Free NEMA Washdown Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720052754 |
Weight: |
207 LB |
| Packaged Length: |
26.4 IN |
Packaged Width: |
16.9 IN |
| Packaged Height: |
18.9 IN |
Nameplate Specifications
| Output HP: |
10 Hp |
Output KW: |
7.5 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
25.2/12.6 A |
Speed: |
1745 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
91.7 % |
Power Factor: |
80 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
H |
| Frame: |
215TC |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6306 |
Opp Drive End Bearing Size: |
6306 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
T |
Overall Length: |
21.57 in |
| Frame Length: |
13.39 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.38 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
0.0 |
51.70 |
175.0 |
0 |
0.00 |
0.0 |
10.00 |
| Locked-Rotor |
78.70 |
635.0 |
60.00 |
203.0 |
0 |
0.00 |
0.0 |
10.00 |
| Full Load |
12.40 |
100.0 |
29.60 |
100.0 |
0 |
0.00 |
0.0 |
10.00 |
| Break-Down |
0.00 |
0.0 |
84.30 |
285.0 |
0 |
0.00 |
0.0 |
10.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
5.90 |
6.50 |
7.90 |
9.90 |
12.70 |
14.40 |
15.60 |
18.80 |
| Rated Output (KW) |
0.28 |
2.10 |
4.02 |
6.01 |
8.03 |
9.29 |
10.12 |
12.32 |
| Efficiency (%) |
0.0 |
88.7 |
92.8 |
93.4 |
93.1 |
92.6 |
92.2 |
91.0 |
| Power Factor (%) |
6.0 |
40.5 |
63.9 |
76.1 |
79.4 |
81.0 |
81.4 |
82.3 |
| Speed (RPM) |
1,799 |
1,793 |
1,786 |
1,779 |
1,771 |
1,765 |
1,762 |
1,751 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
67.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
7.30 |
14.70 |
22.20 |
29.70 |
34.30 |
37.30 |
45.10 |
