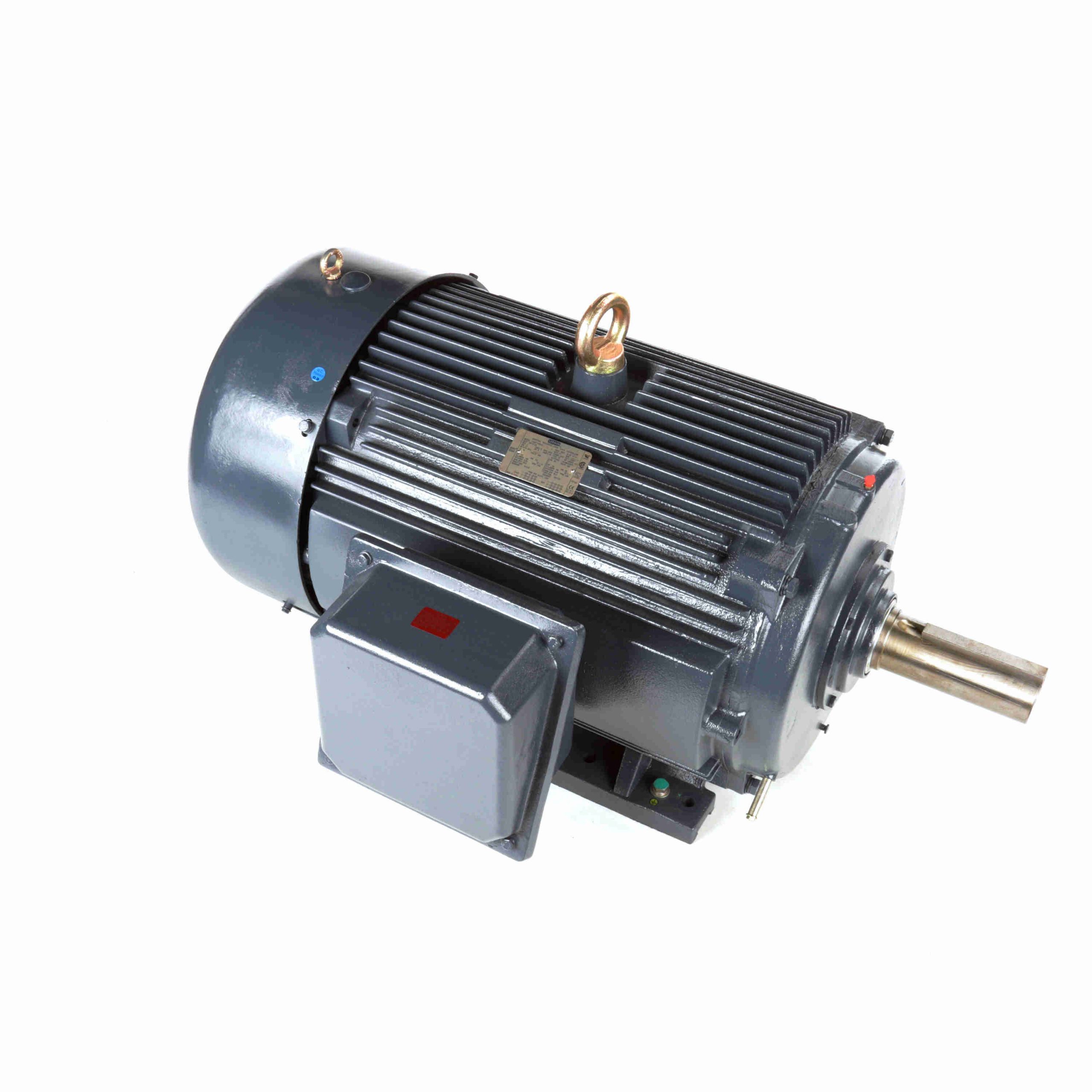

194191.00 – Leeson 150 HP Aggregate Duty Motor, 3 phase, 1800 RPM, 460 V, 445T Frame, TEFC – 194191.00
194191.00 Leeson Aggregate Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720089415 |
Weight: |
0 LB |
| Packaged Length: |
56 IN |
Packaged Width: |
46 IN |
| Packaged Height: |
30.85 IN |
Nameplate Specifications
| Output HP: |
150 Hp |
Output KW: |
112.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
165.0 A |
Speed: |
1786 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95.8 % |
Power Factor: |
88 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
C |
KVA Code: |
G |
| Frame: |
445T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
NU319 |
Opp Drive End Bearing Size: |
6317 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
55 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Part Wdg Start & Wye Start Delta Run Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.03 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Roller |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
50.78 in |
| Frame Length: |
26.77 in |
Shaft Diameter: |
3.375 in |
| Shaft Extension: |
8.5 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
550.00 |
345.0 |
1,050.00 |
238.0 |
1,725 |
|
63.0 |
150.00 |
| Pull-Up |
950.00 |
575.0 |
775.00 |
175.0 |
900 |
|
|
150.00 |
| 1/3 |
1,000.00 |
606.0 |
775.00 |
175.0 |
600 |
|
|
150.00 |
| No Load |
40.00 |
24.0 |
0.00 |
0.0 |
1,800 |
|
6.0 |
150.00 |
| Full Load |
165.00 |
100.0 |
441.00 |
100.0 |
1,786 |
|
88.0 |
150.00 |
| Locked-Rotor |
1,085.00 |
650.0 |
975.00 |
220.0 |
0 |
|
36.0 |
150.00 |
| 2/3 |
875.00 |
530.0 |
850.00 |
192.0 |
1,200 |
|
|
150.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
40.00 |
57.00 |
88.00 |
125.00 |
165.00 |
192.00 |
210.00 |
| Rated Output (KW) |
3.00 |
30.00 |
58.50 |
87.50 |
117.00 |
135.00 |
147.00 |
| Efficiency (%) |
0.0 |
93.6 |
95.4 |
95.8 |
95.8 |
95.8 |
95.4 |
| Power Factor (%) |
6.0 |
67.0 |
83.0 |
87.0 |
88.0 |
88.0 |
88.0 |
| Speed (RPM) |
1,800 |
1,796 |
1,792 |
1,790 |
1,786 |
1,782 |
1,780 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
60.0 |
80.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
110.00 |
220.00 |
330.00 |
441.00 |
508.00 |
553.00 |
Leeson Motors
Regal Beloit
