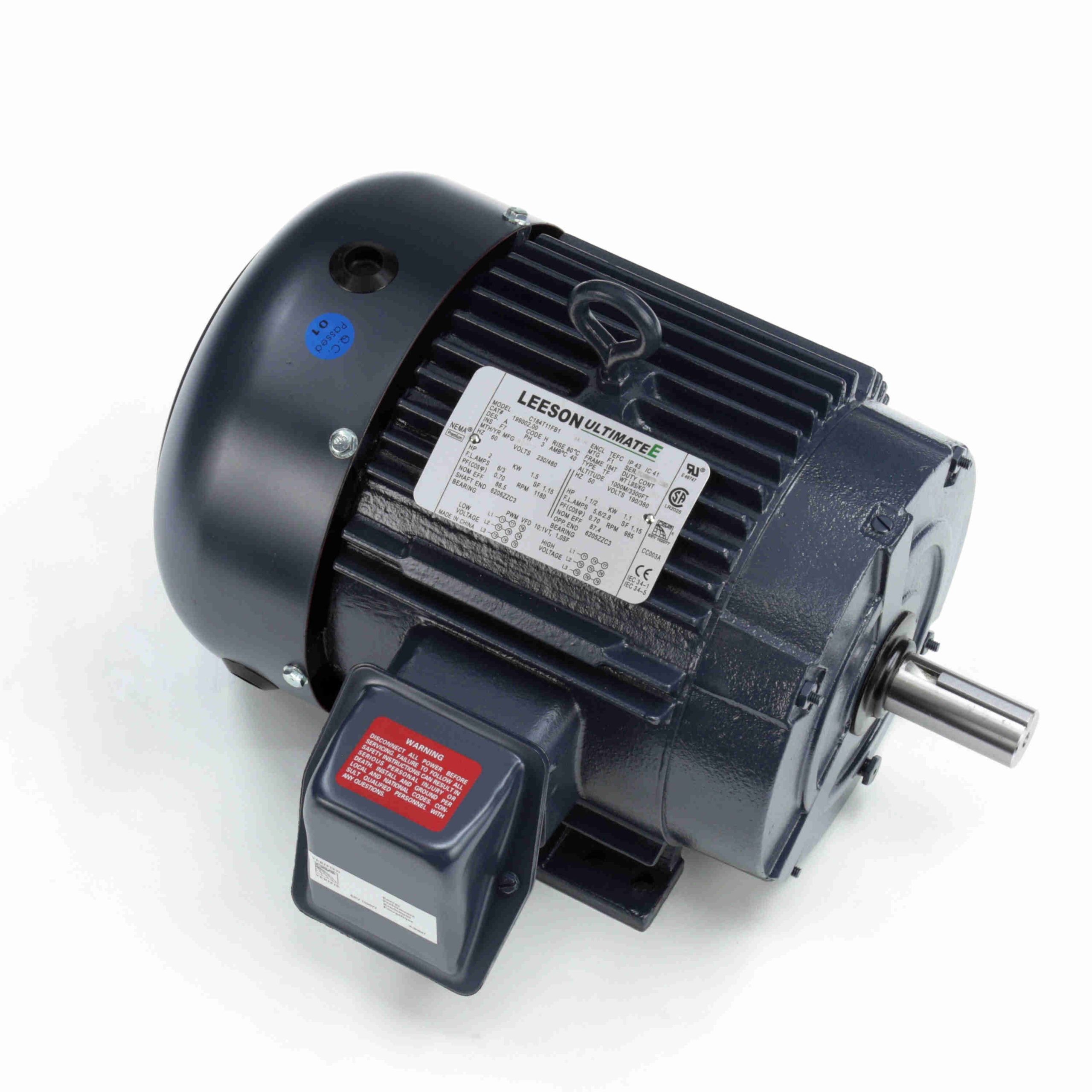

199002.00 – Leeson 2 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 184T Frame, TEFC – 199002.00
199002.00 Leeson Three Phase TEFC Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720271148 |
Weight: |
125 LB |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
6.0/3.0 A |
Speed: |
1182 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
88.5 % |
Power Factor: |
71 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
184T |
Enclosure: |
Totally Enclosed Fan Cooled |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6206 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
43 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
4.65 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
15.81 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
11.50 |
383.0 |
26.00 |
292.0 |
1,140 |
|
66.0 |
2.00 |
| 1/3 |
20.00 |
667.0 |
13.00 |
146.0 |
400 |
|
|
2.00 |
| No Load |
1.75 |
58.5 |
0.00 |
0.0 |
1,200 |
|
7.0 |
2.00 |
| Locked-Rotor |
20.50 |
683.0 |
15.00 |
169.0 |
0 |
|
41.0 |
2.00 |
| 2/3 |
16.00 |
533.0 |
15.00 |
169.0 |
800 |
|
|
2.00 |
| Full Load |
3.00 |
100.0 |
8.90 |
100.0 |
1,182 |
|
71.0 |
2.00 |
| Pull-Up |
18.00 |
600.0 |
13.00 |
146.0 |
600 |
|
|
2.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
1.75 |
1.90 |
2.10 |
2.50 |
3.00 |
3.20 |
3.60 |
| Rated Output (KW) |
0.25 |
0.50 |
0.90 |
1.30 |
1.70 |
1.90 |
2.10 |
| Efficiency (%) |
0.0 |
76.5 |
85.5 |
87.5 |
88.5 |
88.5 |
87.5 |
| Power Factor (%) |
7.0 |
32.0 |
51.0 |
64.0 |
71.0 |
74.0 |
76.0 |
| Speed (RPM) |
1,200 |
1,195 |
1,192 |
1,185 |
1,182 |
1,180 |
1,178 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
55.0 |
65.0 |
| Torque (ft-lbs) |
0.00 |
2.20 |
4.40 |
6.60 |
8.90 |
10.20 |
11.10 |
