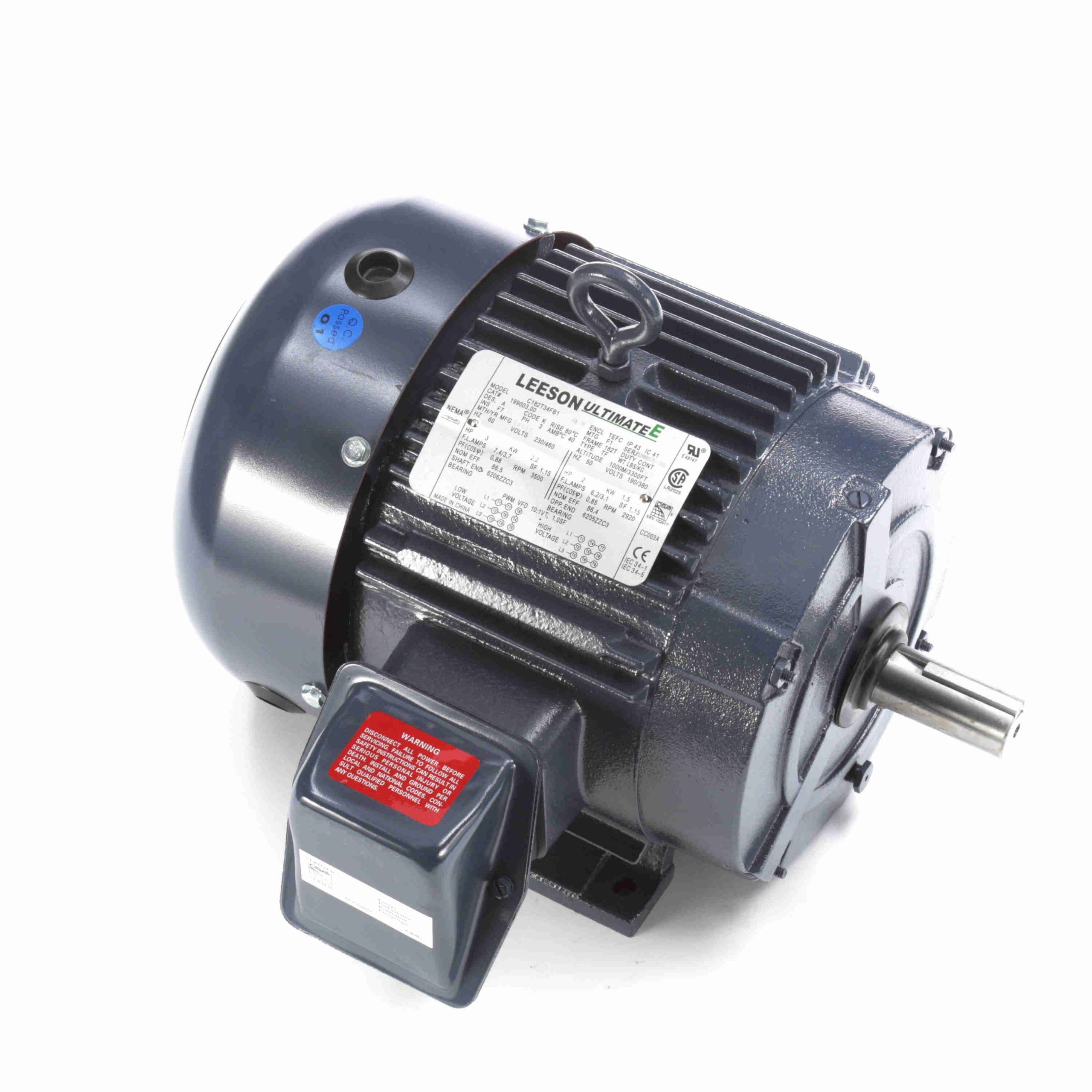

| UPC: | 691720248362 | Weight: | 85 LB |
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 7.6/3.8 A | Speed: | 3535 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 86.5 % | Power Factor: | 85 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | L |
| Frame: | 182T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 3.45 Ohms | Mounting: | Rigid base |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 14.8 in |
| Frame Length: | 5.74 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 Only |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| No Load | 1.60 | 42.0 | 0.00 | 0.0 | 3,600 | 16.0 | 3.00 | |
| Break-Down | 24.50 | 645.0 | 22.50 | 500.0 | 2,850 | 80.0 | 3.00 | |
| Locked-Rotor | 38.00 | 1,000.0 | 13.50 | 300.0 | 0 | 49.0 | 3.00 | |
| 2/3 | 25.00 | 658.0 | 12.00 | 265.0 | 2,400 | 3.00 | ||
| Full Load | 3.80 | 100.0 | 4.50 | 100.0 | 3,532 | 87.0 | 3.00 | |
| 1/3 | 35.00 | 920.0 | 10.00 | 222.0 | 1,200 | 3.00 | ||
| Pull-Up | 30.00 | 790.0 | 10.00 | 222.0 | 1,800 | 3.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 1.60 | 1.90 | 2.40 | 3.00 | 3.80 | 4.20 | 4.50 |
| Rated Output (KW) | 0.25 | 0.75 | 1.30 | 2.00 | 2.60 | 3.00 | 3.20 |
| Efficiency (%) | 0.0 | 82.5 | 85.5 | 86.5 | 86.5 | 86.5 | 86.5 |
| Power Factor (%) | 8.0 | 46.5 | 68.5 | 79.0 | 85.0 | 87.0 | 88.0 |
| Speed (RPM) | 3,600 | 3,585 | 3,570 | 3,555 | 3,535 | 3,525 | 3,520 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 25.0 | 35.0 | 45.0 |
| Torque (ft-lbs) | 0.00 | 1.10 | 2.20 | 3.30 | 4.50 | 5.20 | 5.60 |
