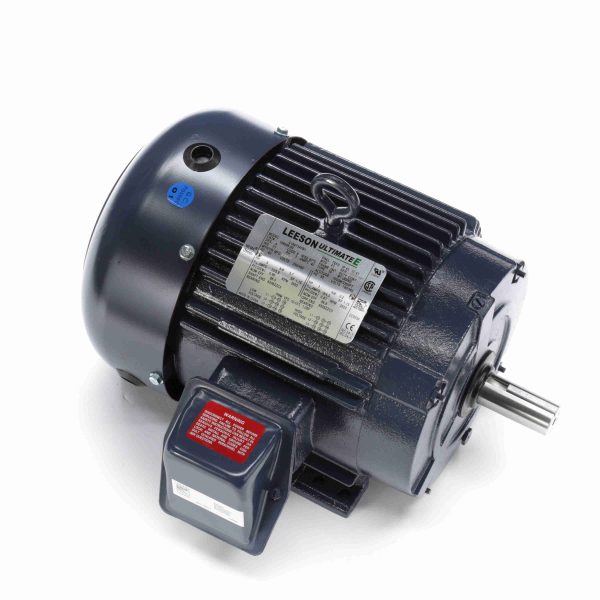

| UPC: | 691720253335 | Weight: | 96 LB |
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 12.0/6.0 A | Speed: | 3535 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 91 % | Power Factor: | 88 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | L |
| Frame: | 184T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6305 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 1.98 Ohms | Mounting: | Rigid base |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 15.81 in |
| Frame Length: | 6.73 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 Only |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 55.00 | 918.0 | 20.00 | 266.0 | 1,800 | 5.00 | ||
| 2/3 | 50.00 | 835.0 | 25.00 | 332.0 | 2,400 | 5.00 | ||
| Locked-Rotor | 62.50 | 1,042.0 | 23.00 | 306.0 | 0 | 51.0 | 5.00 | |
| 1/3 | 60.00 | 1,000.0 | 20.00 | 266.0 | 1,200 | 5.00 | ||
| No Load | 2.10 | 35.0 | 0.00 | 0.0 | 3,600 | 8.5 | 5.00 | |
| Break-Down | 41.50 | 692.0 | 35.50 | 472.0 | 2,875 | 76.0 | 5.00 | |
| Full Load | 6.00 | 100.0 | 7.50 | 100.0 | 3,535 | 88.0 | 5.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 2.10 | 2.60 | 3.60 | 4.70 | 6.00 | 6.70 | 7.20 |
| Rated Output (KW) | 0.40 | 1.30 | 2.20 | 3.20 | 4.20 | 4.90 | 5.30 |
| Efficiency (%) | 0.0 | 84.0 | 90.2 | 91.0 | 91.0 | 91.0 | 90.2 |
| Power Factor (%) | 8.5 | 53.0 | 74.0 | 83.0 | 88.0 | 89.0 | 90.0 |
| Speed (RPM) | 3,600 | 3,585 | 3,570 | 3,552 | 3,535 | 3,525 | 3,518 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 40.0 | 55.0 | 65.0 |
| Torque (ft-lbs) | 0.00 | 1.85 | 3.70 | 5.60 | 7.50 | 8.60 | 9.40 |
