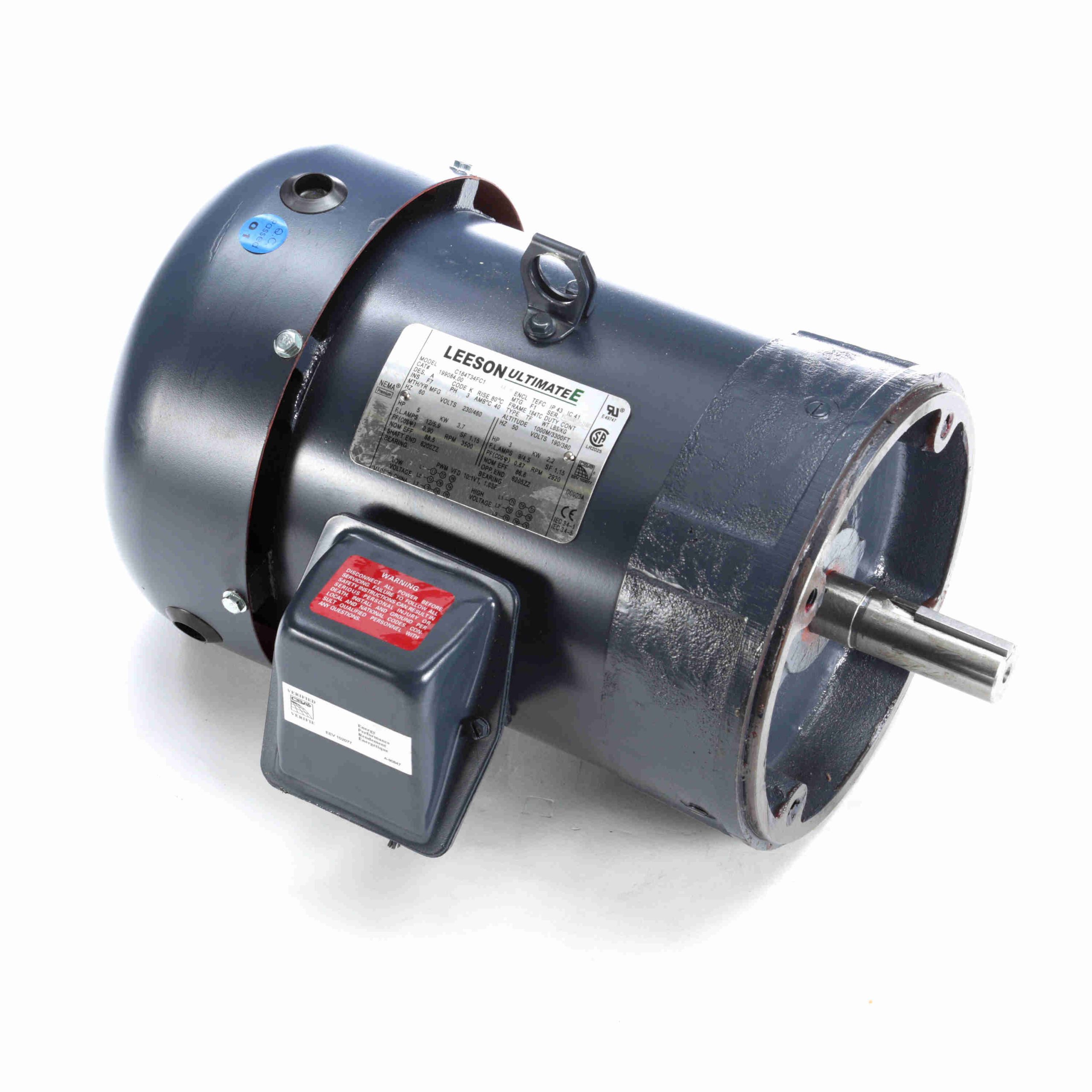

| UPC: | 691720259399 | Weight: | 91 LB |
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60/50 Hz | Voltage: | 230/460 V |
| Current: | 11.6/5.8 A | Speed: | 3500 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 88.5 % | Power Factor: | 90 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | K |
| Frame: | 184TC | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6305 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 1.98 Ohms | Mounting: | Round |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 16.73 in |
| Frame Length: | 6.75 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 30.00 | 500.0 | 24.70 | 332.0 | 2,875 | 76.0 | 5.00 | |
| 2/3 | 36.00 | 600.0 | 15.00 | 200.0 | 2,400 | 5.00 | ||
| Pull-Up | 40.00 | 668.0 | 14.00 | 186.0 | 1,800 | 5.00 | ||
| Locked-Rotor | 44.00 | 735.0 | 15.30 | 206.0 | 0 | 51.0 | 5.00 | |
| 1/3 | 42.00 | 700.0 | 14.00 | 186.0 | 1,200 | 5.00 | ||
| No Load | 2.10 | 35.0 | 0.00 | 0.0 | 3,600 | 12.0 | 5.00 | |
| Full Load | 5.80 | 100.0 | 7.50 | 100.0 | 3,500 | 90.0 | 5.00 |
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 2.30 | 2.70 | 3.50 | 4.60 | 5.80 | 6.60 | 7.20 |
| Rated Output (KW) | 0.40 | 1.30 | 2.20 | 3.20 | 4.20 | 4.90 | 5.30 |
| Efficiency (%) | 0.0 | 82.5 | 86.5 | 88.5 | 88.5 | 88.5 | 87.5 |
| Power Factor (%) | 12.0 | 51.0 | 74.0 | 84.0 | 90.0 | 90.5 | 91.0 |
| Speed (RPM) | 3,600 | 3,570 | 3,550 | 3,525 | 3,500 | 3,490 | 3,475 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 45.0 | 60.0 | 75.0 |
| Torque (ft-lbs) | 0.00 | 1.85 | 3.70 | 5.60 | 7.50 | 8.60 | 9.40 |
