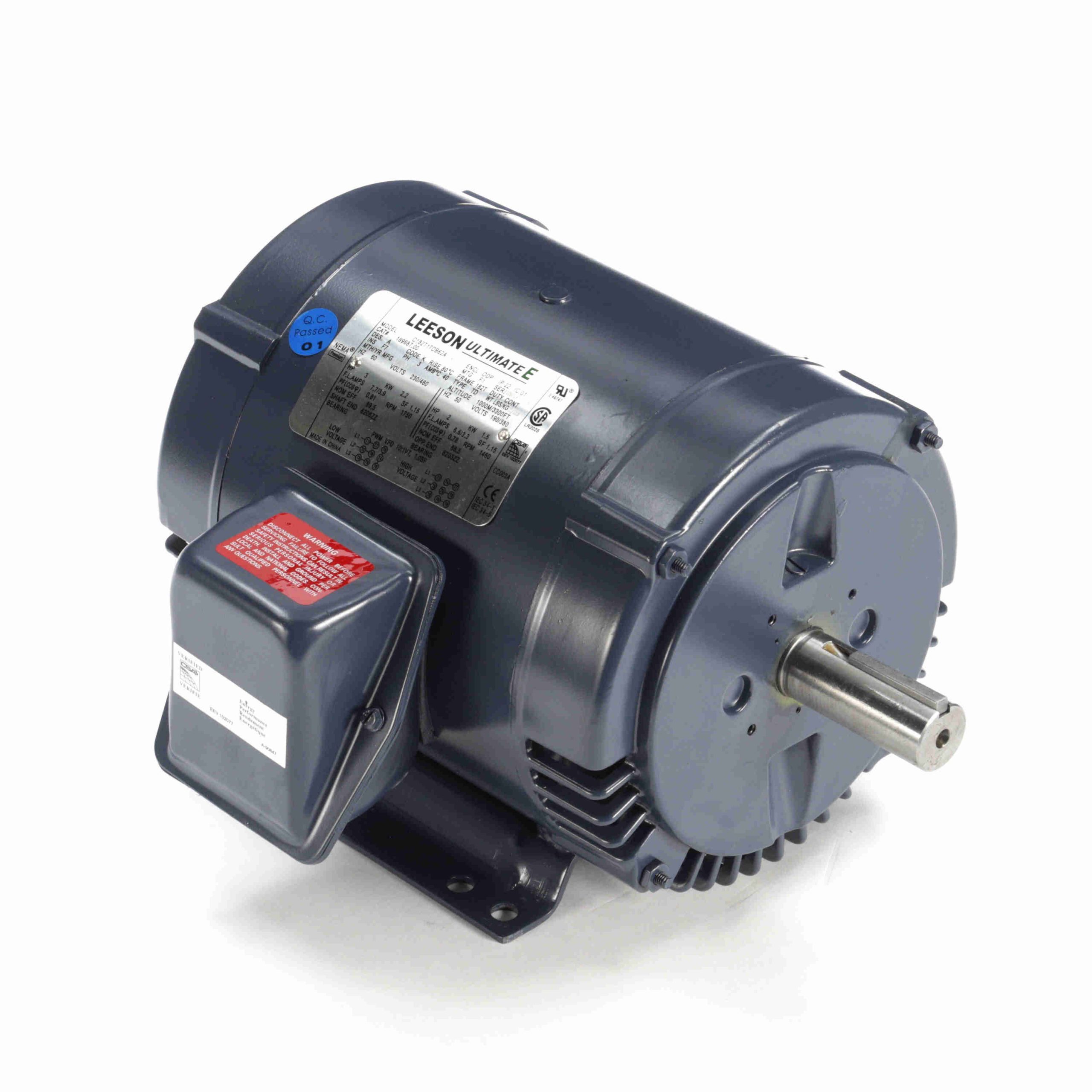

199685.00 – Leeson 1.50 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 182T Frame, ODP – 199685.00
199685.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720042496 |
Weight: |
69 LB |
Nameplate Specifications
| Output HP: |
1.50 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
4.4/2.2 A |
Speed: |
1180 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
86.5 % |
Power Factor: |
69 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
J |
| Frame: |
182T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6206 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
8.05 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
13.72 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
13.00 |
592.0 |
8.00 |
120.0 |
600 |
|
|
1.50 |
| No Load |
1.20 |
54.5 |
0.00 |
0.0 |
1,200 |
|
6.0 |
1.50 |
| Locked-Rotor |
15.00 |
682.0 |
11.20 |
167.0 |
0 |
|
37.0 |
1.50 |
| 2/3 |
11.00 |
500.0 |
10.00 |
150.0 |
900 |
|
|
1.50 |
| Break-Down |
9.00 |
410.0 |
20.00 |
298.0 |
1,050 |
|
65.0 |
1.50 |
| 1/3 |
14.00 |
636.0 |
8.00 |
120.0 |
300 |
|
|
1.50 |
| Full Load |
2.20 |
100.0 |
6.70 |
100.0 |
1,180 |
|
69.0 |
1.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
1.25 |
1.35 |
1.60 |
1.90 |
2.20 |
2.50 |
2.70 |
| Rated Output (KW) |
0.15 |
0.35 |
0.65 |
1.00 |
1.30 |
1.50 |
1.60 |
| Efficiency (%) |
0.0 |
81.0 |
86.5 |
86.5 |
86.5 |
85.5 |
84.0 |
| Power Factor (%) |
6.0 |
32.0 |
51.0 |
63.0 |
69.0 |
71.0 |
73.0 |
| Speed (RPM) |
1,200 |
1,195 |
1,190 |
1,185 |
1,180 |
1,178 |
1,175 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
25.0 |
30.0 |
35.0 |
| Torque (ft-lbs) |
0.00 |
1.65 |
3.30 |
5.00 |
6.70 |
7.70 |
8.40 |
