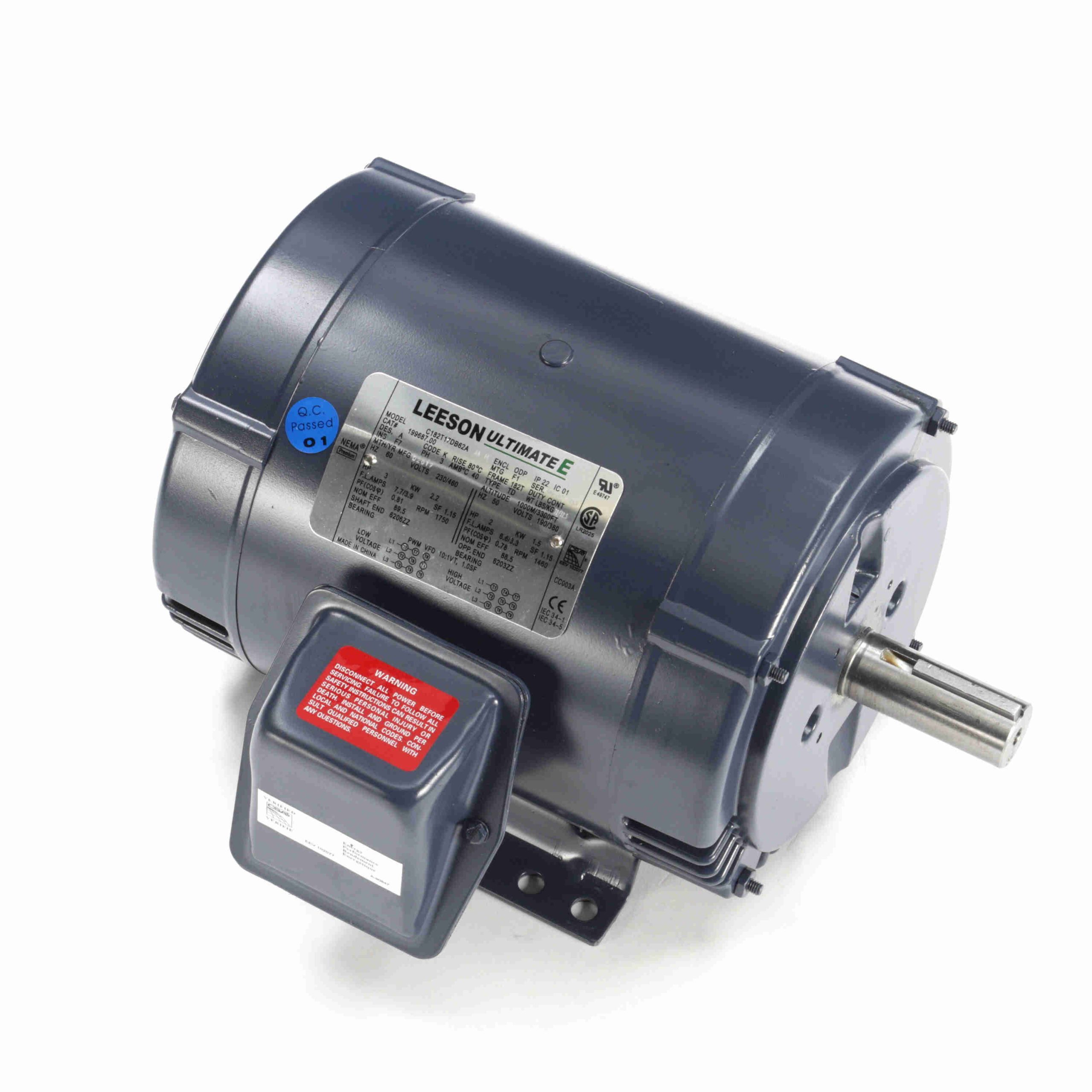

199687.00 – Leeson 3 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 182T Frame, ODP – 199687.00
199687.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720042519 |
Weight: |
73 LB |
| Packaged Length: |
0 IN |
Packaged Width: |
0 IN |
| Packaged Height: |
0 IN |
Nameplate Specifications
| Output HP: |
3 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
7.6/3.8 A |
Speed: |
1760 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
90.2 % |
Power Factor: |
81.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
L |
| Frame: |
182T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6206 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
3.38 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
13.72 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.75 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
35.00 |
897.0 |
25.00 |
277.0 |
0 |
0.00 |
53.5 |
3.00 |
| Break-Down |
24.00 |
615.0 |
37.00 |
411.0 |
1,360 |
0.00 |
71.5 |
3.00 |
| 1/3 |
35.50 |
910.0 |
21.00 |
233.0 |
350 |
0.00 |
0.0 |
3.00 |
| Full Load |
3.90 |
100.0 |
9.00 |
100.0 |
1,750 |
0.00 |
81.0 |
3.00 |
| 2/3 |
28.00 |
718.0 |
26.00 |
289.0 |
1,000 |
0.00 |
0.0 |
3.00 |
| No Load |
1.80 |
46.2 |
0.00 |
0.0 |
1,800 |
0.00 |
6.5 |
3.00 |
| Pull-Up |
31.50 |
808.0 |
22.50 |
250.0 |
750 |
0.00 |
0.0 |
3.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
1.80 |
2.00 |
2.50 |
3.10 |
3.90 |
4.30 |
4.60 |
| Rated Output (KW) |
0.10 |
0.66 |
1.20 |
1.90 |
2.50 |
2.90 |
3.10 |
| Efficiency (%) |
0.0 |
84.0 |
89.5 |
90.2 |
89.5 |
89.5 |
89.5 |
| Power Factor (%) |
6.5 |
42.0 |
63.5 |
75.5 |
81.0 |
83.0 |
84.5 |
| Speed (RPM) |
1,800 |
1,790 |
1,780 |
1,770 |
1,750 |
1,745 |
1,740 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
35.0 |
50.0 |
60.0 |
| Torque (ft-lbs) |
0.00 |
2.20 |
4.40 |
6.70 |
9.00 |
10.30 |
11.30 |
